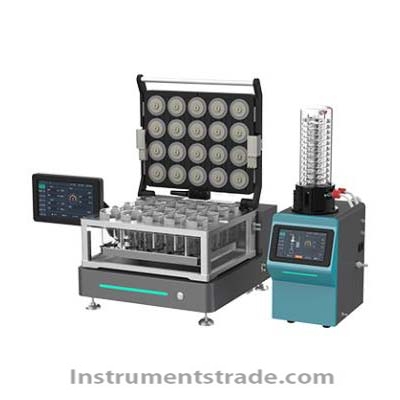

MPE Pro High-Throughput Vacuum Parallel Concentrator

Position: Home > > Lab general equipment > Purification equipment > Concentrated instrument > MPE Pro High-Throughput Vacuum Parallel Concentrator

MPE Pro High-Throughput Vacuum Parallel Concentrator

Product ID：SYCHNS037

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberMPE Pro

Brand NameXMRUIKE

Payment TermsTT，PAYPAL，Alibaba.com Pay

MPE Pro High-Throughput Vacuum Parallel Concentrator

Product Overview
The MPE Pro High-Throughput Vacuum Parallel Concentrator combines high-throughput sample processing with vacuum concentration. It uses precise gradient negative-pressure control to reduce bumping and solvent loss. Automated sealing, endpoint detection, and condensate recovery simplify operation while improving concentration efficiency and consistency.

Key Features
1. Flexible Sample Positioning
• Customizable operating positions allow flexible sample handling.
• Each concentration cup has an independent vacuum line to reduce cross-contamination and liquid carryover.
• One-touch cover locking and automatic sealing.
• Liquid-level detection automatically determines the concentration endpoint.
2. Precise Pressure Control
• Supports manual, programmed, and variable-frequency pressure reduction modes.
• Gradient pressure control enables gentle and precise control of the concentration process.
• Optional variable-frequency vacuum pump for improved pressure control.
3. Efficient Condensation and Recovery
• Serpentine condenser and collection bottle condense and recover organic solvent vapors.
• 3 L solvent collection bottle available.
• Condensate collection systems larger than 5 L are available for high-volume applications.

Working Principle
The MPE Pro uses vacuum negative pressure to lower the boiling point of solvents and accelerate evaporation. During concentration, the system precisely adjusts the pressure gradient to control the evaporation rate and reduce bumping and solvent loss. The generated solvent vapor is condensed and collected through the condensation system, while liquid-level detection helps determine the concentration endpoint automatically.

Technical Specifications

Item	Specification
Product Type	High-Throughput Vacuum Parallel Concentrator
Concentration Method	Vacuum parallel concentration
Pressure Control	Manual, programmed, and variable-frequency
Pressure Control Mode	Gradient pressure control
Operating Positions	Customizable
Vacuum System	Independent vacuum line for each cup
Endpoint Detection	Automatic liquid-level detection
Sealing	One-touch locking and automatic sealing
Condensation	Serpentine condenser
Solvent Collection	3 L collection bottle
Large-Volume Collection	>5 L condensate collection system available
Optional Equipment	Variable-frequency vacuum pump

Applications
• Environmental analysis
• Food testing
• Soil analysis
• Textile testing

Application Scenarios
• Concentration of environmental samples before instrumental analysis.
• Solvent evaporation and sample preparation in food testing.
• Extraction and concentration of soil samples.
• Preparation of textile samples for chemical analysis.

Comparison

Feature	MPE Pro	Conventional Manual Concentration
Sample Throughput	High	Low to medium
Pressure Control	Precise gradient control	Manual adjustment
Sealing	Automatic	Manual
Endpoint Detection	Automatic	Manual monitoring
Solvent Recovery	Integrated condensation system	Usually separate
Operation	Highly automated	More manual operations

FAQ
Q1: What is the MPE Pro used for?
A: It is designed for high-throughput vacuum concentration and sample preparation in environmental, food, soil, and textile analysis.
Q2: How does the MPE Pro reduce solvent loss?
A: Precise gradient pressure control helps reduce bumping, while the condensation system recovers evaporated solvent.
Q3: Can the number of operating positions be customized?
A: Yes. The system supports customizable operating positions for different sample throughput requirements.
Q4: Does the instrument automatically determine the concentration endpoint?
A: Yes. The liquid-level detection function can automatically determine the concentration endpoint.
Q5: Can large volumes of solvent be collected?
A: Yes. A 3 L collection bottle is available, with condensate collection systems larger than 5 L available for high-volume applications.
Q6: Is a vacuum pump included?
A: A variable-frequency vacuum pump can be selected as an optional configuration for more precise pressure control.
