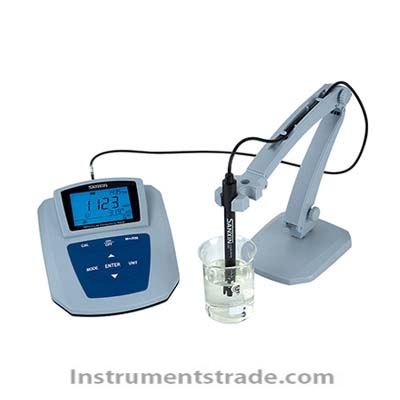

MP513 Laboratory Conductivity Meter
Product Introduction
The MP513 Laboratory Conductivity Meter is a versatile digital conductivity meter designed for routine measurement of aqueous solutions in laboratory and water analysis applications. Using advanced conductivity measurement technology, the MP513 can measure conductivity from 0.00 μS/cm to 200.0 mS/cm with a K=1 conductivity electrode and one-point calibration.
The laboratory conductivity meter supports automatic temperature compensation and allows users to switch between conductivity, resistivity, salinity, TDS, and temperature measurements. Intelligent functions including timed measurement, stable-reading indication, data storage, clock and date display, function settings, and RS232 data output make the MP513 suitable for efficient laboratory testing and data management.
The instrument complies with GLP requirements and features an IP54-rated dust- and splash-resistant housing for reliable laboratory operation.

Key Features
• Wide conductivity measurement range: Measures from 0.00 μS/cm to 200.0 mS/cm across five automatically selectable ranges.
• One-point calibration: Advanced automatic frequency conversion and voltage regulation technology extends the measurement range of a K=1 conductivity electrode, allowing one-point calibration for measurements up to 200 mS/cm.
• Automatic temperature compensation: Provides automatic temperature compensation within 0–50°C for improved measurement accuracy.
• Multi-parameter measurement: Conductivity, resistivity, salinity, TDS, and temperature can be switched according to testing requirements.
• Intelligent measurement: Digital filtering and sliding-difference technology improve response speed and measurement stability.
• Stable-reading indication: A stability icon is displayed when the measured value becomes stable.
• Automatic calibration: Simplifies routine conductivity meter calibration.
• Data storage: Stores up to 100 measurement sets for convenient record keeping.
• Timed measurement: Supports scheduled measurements for laboratory testing workflows.
• RS232 communication: Enables measurement data transmission to external devices.
• Built-in clock and date: Supports time and date display for measurement records.
• Automatic temperature compensation electrode: Supplied with a convenient plastic-shell conductivity electrode with temperature compensation.
• IP54 protection: Dust and splash resistance, with silicone protective caps sealing all instrument ports.

Working Principle
The MP513 laboratory conductivity meter determines the electrical conductivity of a solution using a conductivity electrode. When the electrode is immersed in the sample, ions in the solution carry electrical current between the electrodes. The instrument measures the electrical response and calculates the solution's conductivity.
The meter uses automatic frequency conversion and automatic voltage regulation to extend the usable measurement range of a K=1 conductivity electrode. This allows the same electrode to cover a broad conductivity range with one-point calibration.
For temperature-sensitive samples, the integrated temperature measurement function enables automatic temperature compensation, helping improve the comparability and reliability of conductivity measurements.
The instrument can also convert or calculate measurement information into resistivity, TDS, and salinity values according to the selected measurement mode.

Technical Parameters

Parameter	Specification
Model	MP513
Product Type	Laboratory Conductivity Meter
Conductivity Range	0–200 mS/cm
Conductivity Ranges	0.00–20.00 μS/cm; 20.00–200.0 μS/cm; 200–2000 μS/cm; 2.00–20.00 mS/cm; 20.0–200.0 mS/cm
Resistivity Range	0–100 MΩ·cm
TDS Range	0–100 g/L
Salinity Range	0–100 ppt
Temperature Range	-10–110°C
Conductivity Accuracy	±1.0% FS
Automatic Temperature Compensation	0–50°C
Conductivity Electrode	K=1
Calibration	One-point / Automatic Calibration
Data Storage	100 sets
Communication Interface	RS232
Power Supply	DC 9 V / 300 mA
Dimensions	160 × 190 × 70 mm
Weight	880 g
Protection Rating	IP54

Applications
The MP513 conductivity meter is suitable for routine laboratory measurement and quality control of aqueous solutions, including:
• Laboratory water analysis: Conductivity measurement of routine aqueous samples.
• Water quality testing: Monitoring conductivity changes in water samples.
• Purified and process water: Checking conductivity during water treatment and laboratory processes.
• Environmental analysis: Conductivity measurement for environmental water samples.
• Chemical laboratories: Measuring conductivity and related parameters of aqueous solutions.
• Food and beverage testing: Conductivity, TDS, and salinity measurements where applicable.
• Educational laboratories: Teaching and experimental measurement of solution conductivity.
• Research and quality control: Recording and exporting conductivity data through RS232.

MP513 vs. Conventional Basic Conductivity Meter

Feature	MP513 Laboratory Conductivity Meter	Basic Conductivity Meter
Conductivity Range	0–200 mS/cm	Usually narrower
Measurement Ranges	5 ranges	Usually fewer
Calibration	One-point / automatic	Often requires more manual adjustment
Temperature Compensation	Automatic	May be manual or unavailable
Measurement Modes	Conductivity, resistivity, TDS, salinity, temperature	Mainly conductivity
Data Storage	100 sets	Often limited
Timed Measurement	Yes	Usually unavailable
Stable-Reading Indicator	Yes	Depends on model
Communication	RS232	Often unavailable
Protection	IP54	Depends on model
Electrode	K=1 conductivity electrode with temperature compensation	Depends on configuration

Why Choose MP513?
The MP513 Laboratory Conductivity Meter combines broad-range conductivity measurement with automatic temperature compensation, one-point calibration, multi-parameter measurement, data storage, timed measurement, and RS232 communication.
Its ability to measure up to 200 mS/cm using a K=1 conductivity electrode, together with 0.00 μS/cm low-range measurement, makes it a practical choice for laboratories that need a single conductivity meter for a wide variety of aqueous samples.

FAQ
1. What is the measurement range of the MP513 conductivity meter?
The MP513 measures conductivity from 0.00 μS/cm to 200.0 mS/cm across five measurement ranges.
2. Can the MP513 measure TDS and salinity?
Yes. In addition to conductivity, the MP513 supports TDS from 0–100 g/L and salinity from 0–100 ppt.
3. Does the MP513 provide automatic temperature compensation?
Yes. The instrument provides automatic temperature compensation from 0–50°C.
4. What type of conductivity electrode is used?
The MP513 uses a K=1 conductivity electrode. Its automatic frequency conversion and voltage regulation technologies extend the electrode's usable measurement range.
5. How many measurement records can be stored?
The instrument can store up to 100 sets of data.
6. Does the MP513 support data transmission?
Yes. The conductivity meter is equipped with an RS232 communication interface for data output.
7. What is the temperature measurement range?
The temperature measurement range is -10°C to 110°C.
8. What is the conductivity measurement accuracy?
The specified conductivity accuracy is ±1.0% FS.
9. Is the MP513 suitable for routine laboratory use?
Yes. Its wide conductivity range, automatic temperature compensation, one-point calibration, data storage, timed measurement, and IP54 protection make it suitable for routine laboratory conductivity testing.
10. What are the dimensions and weight of the instrument?
The MP513 measures 160 × 190 × 70 mm and weighs approximately 880 g.
