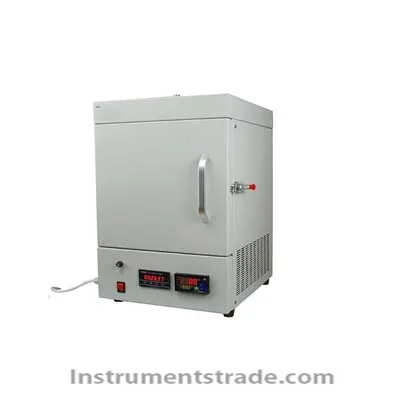

MKX-M2A High-temperature microwave oven

Product ID：SYJRGZsyl023

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberMKX-M2A

Brand NameQDMKW

Payment TermsT/T, paypal

Introduction
The instrument is used widely applicable to all types of institutions of higher learning laboratory, industrial and mining enterprises, the quality inspection, Institute for Drug Control laboratory for chemical analysis, component measurement, physical measurement as well as metal, ceramic sintering and dissolution of small parts such as heating, roasting, drying, heat treatment.
Feature
1, Heating speed: within 20min can be heated from room temperature to 1000 ℃ (graphite as an example)
2, Ambience: a vacuum environment, maximum vacuum -0.099Mpa (Qingdao altitude measured data)
3, Water cooling system: according to the material properties, the maximum temperature up to 1100 ℃, long continuous working temperature 100 ~ 1000 ℃
4, Eramic crucibles :100×100×30mm ceramic crucibles
5, Single atmosphere: a gas export and the cavity gas discharge outlet
6, Thermocouple temperature control, test accuracy of ± 1%
7, Door Multi-chain structure, door off to protect the operator, in line with the national standard microwave leakage protection
Technical parameter

Product name	High-temperature microwave oven	Quanlity	1 set
Model	MKX-M2A	Brand	MAKEWAVE
Functional requirements and Prameter	1、Power supply ：220±10V/50Hz 2、Microwave frequency：2450±50Mhz 3、Maximum output of the microwave power2400W 4、Microwave power can be adjusted continuously 5、Device uses stainless steel cabinet design, the appearance of carbon steel, overall nice 6、Allowing a variety of ambient atmosphere: such as air, nitrogen, argon, oxygen and other gases 7、Infrared temperature sensor, temperature range 700 ℃ ~ 1700 ℃, temperature measurement accuracy ± 1% 8 、Electrification control, key operation, time, temperature, power digital display, adjustable controllable 9、High temperature heating zone volume: about 150 × 150 × 200mm (width × depth × height) 10、Use Patent no. ZL200920352601.3 patented insulation way, in order to reduce the maximum degree of energy loss 11. insulation materials with low loss ceramic fiber material, light weight, good insulation effec 12、According to the material properties, the maximum temperature can reach 1600 ℃ 13,Side door, the door anti-fluid structure, to prevent microwave leakage. Multi-chain structure, door off to protect the operator. 14 Mumulti-door interlock structure, door off to protect the operator, in line with the national standard microwave leakage protection 15、Through the ISO9000 quality management system certification

Introduction
The instrument is used widely applicable to all types of institutions of higher learning laboratory, industrial and mining enterprises, the quality inspection, Institute for Drug Control laboratory for chemical analysis, component measurement, physical measurement as well as metal, ceramic sintering and dissolution of small parts such as heating, roasting, drying, heat treatment.
