MINIB-100F Mini Dry Bath Incubator

Position: Home > > Lab general equipment > Heating / drying equipment > Metal bath > MINIB-100F Mini Dry Bath Incubator with Fan Cooling

MINIB-100F Mini Dry Bath Incubator with Fan Cooling

Product ID：SYJRGZjshy008

Price: Please inquire PDF Format

Supply Ability:60SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberMINIB-100F

Brand NameMAIKENUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

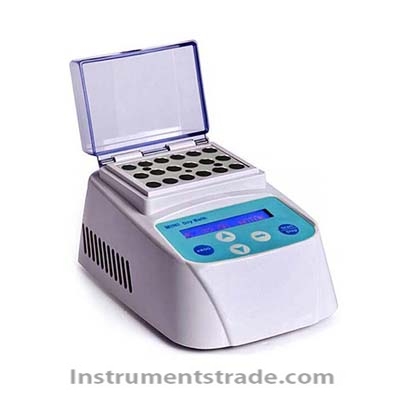

MINIB-100F Mini Dry Bath Incubator with Fan Cooling

Product Overview
The MINIB-100F Mini Dry Bath Incubator is a compact, microprocessor-controlled dry bath designed for precise sample heating in laboratory environments. It uses a heating block and fan-assisted heat dissipation to achieve faster cooling than natural cooling systems. With its lightweight design, 24V DC power input, LCD display, and interchangeable blocks, it is suitable for laboratories, field work, and other space-limited applications.

Key Features
• Compact and lightweight design for easy transport and flexible use.
• Microprocessor-controlled temperature regulation with simultaneous display of set and actual temperature.
• Fan-assisted cooling provides faster temperature reduction than natural cooling.
• Temperature calibration and automatic fault detection with buzzer alarm.
• Built-in over-temperature protection for safer operation.
• Interchangeable blocks are available for different tube and sample requirements and are easy to clean and disinfect.

Working Principle
The MINIB-100F uses an electric heating element controlled by a microprocessor to heat the interchangeable aluminum block to the required temperature. A temperature sensor continuously monitors the block temperature and provides feedback for precise control. After heating, the built-in fan accelerates heat dissipation, allowing the block to cool faster than through natural cooling.

Technical Specifications

Parameter	MINIB-100F
Temperature Control Range	R.T. +5°C to 100°C
Temperature Control Accuracy @ 100°C	≤±0.5°C
Block Temperature Difference @ 40°C	0.3°C
Block Temperature Uniformity	≤±0.3°C
Display Accuracy	0.1°C
Timing Range	0–999 min
Maximum Temperature	100°C
Maximum Power	60 W
Cooling Method	Fan cooling
Net Weight	≤1.0 kg
Thermo Cover	No
Block Selection	Refer to Exchangeable Blocks for Mini Dry Bath Series
Power Input	24V DC

Applications
• Sample incubation and temperature-controlled reactions.
• Molecular biology and biochemical experiments.
• Laboratory sample preparation and pretreatment.
• Heating and incubation of test tubes and microtubes.
• Portable and field laboratory applications.

Applicable Standards
The MINIB-100F is designed for general laboratory heating and incubation applications. Specific regulatory or electrical compliance should be confirmed according to the configuration and destination market.

FAQ
Q1: What is the maximum temperature of the MINIB-100F?
A: The maximum temperature is 100°C, with a control range of room temperature +5°C to 100°C.
Q2: How does the MINIB-100F cool the heating block?
A: It uses built-in fan cooling to accelerate heat dissipation, providing faster cooling than natural cooling.
Q3: Can the heating block be replaced?
A: Yes. Various interchangeable blocks are available for different sample tube and container configurations.
Q4: Does the unit have over-temperature protection?
A: Yes. The unit has built-in over-temperature protection and automatic fault detection with a buzzer alarm.
Q5: Is the MINIB-100F suitable for portable use?
A: Yes. Its compact, lightweight design and 24V DC input make it convenient for mobile and field laboratory applications.
