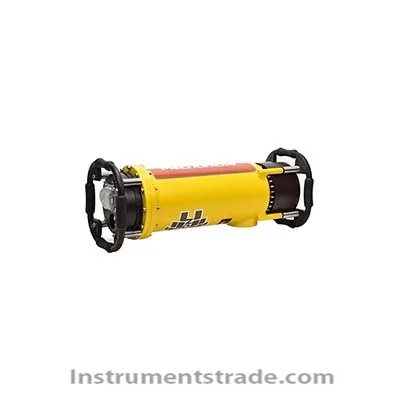

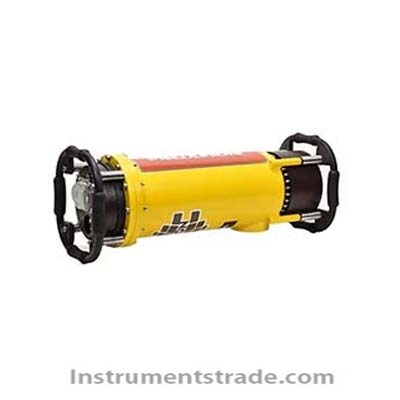

MIG-2505G glass oriented industrial X-ray flaw detector

Product ID:WWxsx013

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberMIG-2505G
    Brand NameDANDONGHONGXING
    Payment TermsT/T, paypal
    MIG-2505G glass oriented industrial X-ray flaw detector

    Features:
    1. Stable and reliable
    The high voltage package is made of high quality joint venture copper wire, and the thick wire diameter makes the heat resistance more reliable. The selection of high-quality ceramic X-ray tubes ensures the ultimate penetration. The large air volume brand cooling fan provides a strong and stable cooling air source for the fuselage.
    2. Ingenious design
    The new design, the more sturdy paint, the rounded corner handle, the flat direction is not easy to damage due to vibration.
    High-viscosity wear-resistant oil-proof and waterproof paste, so that the body will maintain the US standard for a long time.
    The newly designed aluminum multi-tooth radiator increases the heat dissipation area and improves the heat dissipation performance of the material.
    3. Ultimate innovation
    Using the digital display voltage indicator, the flaw detector can accurately obtain the site voltage value during the process of the cloth. The unstable voltage is clear at a glance. When the voltage is stable, the protection device is more effective and stable for a long time.
    Technical Parameters:
    Head weight: 11.4KG
    Head size: 190*190*520mm
    Controller weight: 11KG
    Controller size: 350*290*170
    Output voltage: 50-100KV
    Tube current: 5mA
    Cooling method: forced air cooling
    Insulation method: SF6 gas insulation
    Working style: 1:1 work break
    Maximum penetration: 9mm




  • Features:
    1. Stable and reliable
    The high voltage package is made of high quality joint venture copper wire, and the thick wire diameter makes the heat resistance more reliable. The selection of high-quality ceramic X-ray tubes ensures the ultimate penetration. The large air volume brand cooling fan provides a strong and stable cooling air source for the fuselage.
    2. Ingenious design
    The new design, the more sturdy paint, the rounded corner handle, the flat direction is not easy to damage due to vibration.
    High-viscosity wear-resistant oil-proof and waterproof paste, so that the body will maintain the US standard for a long time.
    The newly designed aluminum multi-tooth radiator increases the heat dissipation area and improves the heat dissipation performance of the material.
    3. Ultimate innovation
    Using the digital display voltage indicator, the flaw detector can accurately obtain the site voltage value during the process of the cloth. The unstable voltage is clear at a glance. When the voltage is stable, the protection device is more effective and stable for a long time.
