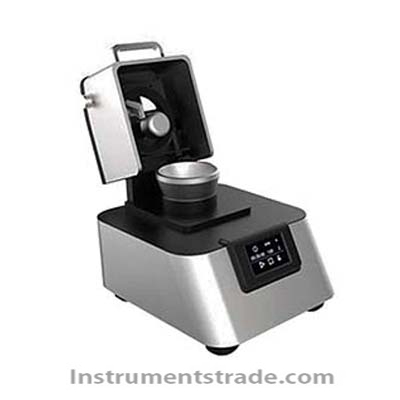

MG200 Jaw type grinder Introduction:
The Jaw Mill MG200 is a general-purpose, high-performance grinding machine for high-repetition grinding and homogenization. Dry, wet and freeze grinding of a wide range of materials. For modern laboratory applications, there is extraordinary performance in terms of handling power, operational comfort and safety. The sample to be treated is placed between the mortar and pestle through the feed port at the top and ground. The sample is pulverized by the pressing and rubbing between the crucible and the wall of the mortar. The rotating mortar drives the rotation of the crucible, and the sample is also rotated, and the grinding is repeated to achieve uniform mixing of the sample. Taking into account the final accuracy and pressure matching and the need to terminate the sample preparation at any time, the jaw mill MG series is equipped with a top pressure mechanism and a flexible scraper setting and the speed is adjustable from 50-130 rpm. Features:
1. LED 5-inch display, touch human-machine interface, high sensitivity sensing
2. German Red Dot Designer Award-winning team design
3. A variety of scraper materials are available to meet all application tasks (polyurethane, PTFE, eucalyptus)
4. Suitable for dry grinding, wet grinding and freeze grinding
5. Optional pretreatment for rough samples
6. Increase the amount of sample through the feed window during the grinding process
7. Can be used for the breaking of yeast cells
8. The position of the mortar and hoe can be adjusted without tools
9. The mortar and hoe materials are multi-selective and can meet all application tasks.
10. Easy to clean
11. Grinding chamber design seals the dustproof sealing device to ensure no sample loss during the grinding process, no dust, no pollution during the grinding process, and protect the environment.
12. Safety switch and electronic control design Technical Parameters:
Injection size: <10 mm, depending on the sample
Sample size: <5 microns (depending on the nature of the sample)
Speed: 50-130 rev / min, adjustable speed
Sample throughput: 10-200 ml
Grinding time setting: 00:01~99:59 (hour/min)
Pressure setting: Yes, through the ruler
adjustment: through the umbrella gear
Scraper adjustment: through the umbrella gear
Display: LED 5-inch touch screen
Locking device: Built-in knob locking
Rated power: 230 watts
Rated voltage: 220 volts, 50 Hz
Instrument size: 400*480*500 mm
Packing size: 600*600*610 mm
Instrument weight: 41 kg
Introduction:
The Jaw Mill MG200 is a general-purpose, high-performance grinding machine for high-repetition grinding and homogenization. Dry, wet and freeze grinding of a wide range of materials. For modern laboratory applications, there is extraordinary performance in terms of handling power, operational comfort and safety. The sample to be treated is placed between the mortar and pestle through the feed port at the top and ground. The sample is pulverized by the pressing and rubbing between the crucible and the wall of the mortar. The rotating mortar drives the rotation of the crucible, and the sample is also rotated, and the grinding is repeated to achieve uniform mixing of the sample. Taking into account the final accuracy and pressure matching and the need to terminate the sample preparation at any time, the jaw mill MG series is equipped with a top pressure mechanism and a flexible scraper setting and the speed is adjustable from 50-130 rpm.
