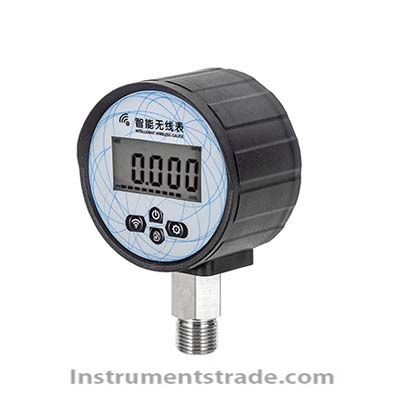

MD-S272 Digital Smart Wireless Pressure Transmitter

Position: Home > > Sensors and Transmitters > Pressure Sensor > MD-S272 Digital Smart Wireless Pressure Transmitter

MD-S272 Digital Smart Wireless Pressure Transmitter

Product ID：CHGYALI027

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberMD-S272

Brand NameSHMINGKONG

Payment TermsTT，PAYPAL，Alibaba.com Pay

MD-S272 Digital Smart Wireless Pressure Transmitter

Product Overview
The MD-S272 Digital Smart Wireless Pressure Transmitter is a low-power, battery-powered digital pressure instrument designed for wireless pressure monitoring. It features a high-strength nylon housing, 304 stainless steel process connection, large LCD display, and built-in MCU for reliable and energy-efficient operation.
It is suitable for measuring gases, liquids, oil, and other non-corrosive media. The transmitter can be used in applications such as fire protection terminal systems and fire pump rooms, where pressure, temperature, flow, or level monitoring is required.

Key Features
• Multiple wireless communication options: GPRS, LoRaWAN, NB-IoT, and ZigBee.
• High-strength nylon housing with low-power design.
• Large LCD display for clear pressure readings.
• Sampling interval and transmission frequency can be configured according to application requirements.
• High and low alarm thresholds can be adjusted via buttons.
• Battery-powered operation for flexible installation and low maintenance.

Working Principle
The MD-S272 uses a pressure sensor to convert the pressure of the measured medium into an electrical signal. The built-in MCU processes and displays the measured value on the LCD and transmits data wirelessly through the selected communication network. Sampling, transmission intervals, and alarm thresholds can be configured according to monitoring requirements.

Technical Specifications

Item	Specification
Measuring Range	-1 to 1 bar; 1.6, 2.5, 4, 6, 10 to 100 bar
Pressure Range	-100 to 0 to 10,000 kPa
Overload Pressure	2 × full scale
Accuracy	±0.5% FS
Long-Term Stability	±0.3% FS/year (typical)
Operating Temperature	-20 to 60°C
Compensated Temperature	-20 to 60°C
Power Supply	ER34615H battery, 3.6 VDC
Sampling Rate	Default 3 s; adjustable 1–60 s/time
Transmission Rate	Adjustable, 10–9999 min
Alarm Modes	Low, high, and fluctuation alarms
Alarm Setting	10%–90% of full scale
Display	LCD
Wireless Communication	GPRS / LoRaWAN / NB-IoT / ZigBee
Process Connection	M20×1.5, G1/2, or other standard threads
Wetted Connection Material	304 stainless steel
Housing Material	Reinforced nylon
Media	Non-corrosive gas, water, oil, etc.
Storage Temperature	-40 to 80°C
Storage Humidity	0–95% RH
Weight	<0.5 kg, including accessories
Standard Accessory	1 × ER34615 battery

Applications
• Fire protection terminal systems
• Fire pump rooms
• Wireless pressure monitoring systems
• Water and oil pressure monitoring
• Industrial equipment monitoring
• Remote pressure data acquisition

Application Scenarios
• Remote monitoring of pressure in fire protection systems.
• Wireless pressure monitoring in pump rooms and pipelines.
• Long-term monitoring of water, oil, and gas pressure.
• Battery-powered installations where wired power and communication are inconvenient.

Comparison

Feature	MD-S272	Conventional Wired Pressure Instrument
Communication	Wireless	Wired
Power Supply	Battery	External power commonly required
Display	Large LCD	Varies
Installation	Flexible wireless installation	Requires wiring
Data Transmission	Remote wireless transmission	Cable transmission
Alarm Functions	High / low / fluctuation	Varies
Power Consumption	Low	Generally higher
Remote Monitoring	Supported	Requires additional system

FAQ
Q1: What media can the MD-S272 measure?
A: It can measure non-corrosive gases, liquids, water, oil, and other media compatible with 304 stainless steel.
Q2: What wireless communication options are available?
A: GPRS, LoRaWAN, NB-IoT, and ZigBee communication options are available.
Q3: Is the MD-S272 battery powered?
A: Yes. It uses an ER34615H 3.6 V battery, making it suitable for locations without convenient wired power.
Q4: Can the sampling and transmission intervals be adjusted?
A: Yes. The sampling interval can be set from 1–60 seconds, while the transmission interval is configurable according to application requirements.
Q5: Does the transmitter support alarm functions?
A: Yes. It supports high, low, and fluctuation alarms, with alarm thresholds adjustable from 10% to 90% of the measuring range.
Q6: Where is the MD-S272 commonly used?
A: It is particularly suitable for fire protection systems, fire pump rooms, pipelines, and other remote pressure monitoring applications.
