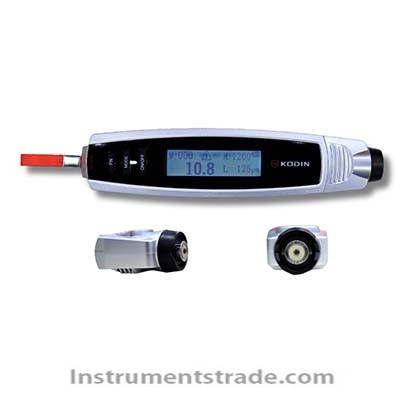

MC-3000P Handheld Coating Thickness Gauge Introduction: The MC-3000P coating thickness gauge incorporates industrial design concepts. Its compact body design makes the instrument operation more portable and straightforward, while its large chassis structure ensures more stable and accurate probe measurements. The instrument is equipped with features such as flip display, Chinese and English options, and multiple measurement modes, making it more suitable for industrial field work requirements. Technical Specifications: Probe type: F1.2 probe Measurement principle: magnetic induction Measuring range: 0~1250μm Minimum diameter of the substrate plane: 15mm Minimum radius of curvature (concave): 6mm Minimum radius of curvature (convex): 2mm Measurement accuracy (H represents the thickness value): ±(1~3)%H±1μm or H±2μm Display accuracy: 0~99.9μm: 0.1μm; 100~9999μm: 1μm Probe type: F for magnetic probe Critical thickness of substrate: F: 1mm Storage method: 1000 pieces of stored data Calibration methods: system calibration, one-point calibration, zero-point calibration Measurement modes: Compact mode, Monitoring mode, Statistical mode Display language: Chinese, English Restore to factory settings: Allows users to return to the original factory state Operating environment: Relative humidity: ≤90%; Temperature: -10℃~+50℃ Power supply: CR2450 coin cell battery Host dimensions: 145mm (L) * 37mm (W) * 22mm (H) Overall weight: approximately 76g (including battery)
MC-3000P Handheld Coating Thickness Gauge Introduction: The MC-3000P coating thickness gauge incorporates industrial design concepts. Its compact body design makes the instrument operation more portable and straightforward, while its large chassis structure ensures more stable and accurate probe measurements. The instrument is equipped with features such as flip display, Chinese and English options, and multiple measurement modes, making it more suitable for industrial field work requirements.
