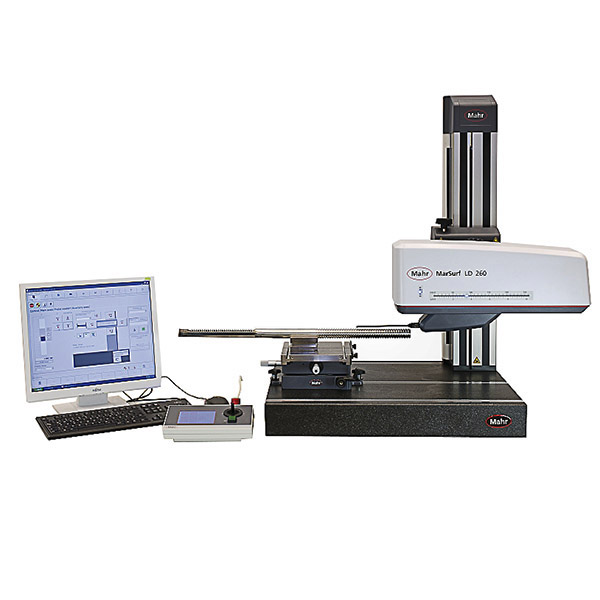

Features: Mahr measures advanced technology to achieve one-step completion of contour and roughness measurement. The MarSurf LD 130 and LD 260 measurement stations have been systematically designed to take advantage of the experience of first-generation equipment. 1. Complete roughness and contour measurement in one step 2. High measurement and positioning speed can significantly reduce measurement time 3. Delete the innovative probe system 4. Rapid and reliable replacement of measuring rod and synchronous detection of magnetic support 5. Long measuring length, up to 260 mm (MarSurf LD 260), measuring distance of 13 mm (100 mm measuring rod length) or 26 mm (200 mm measuring rod length) 6. The module structure is convenient for maintenance 7. It is not necessary to completely remove the measuring column during maintenance Technical data: Measurement speed (text) : 0.02mm/s to 10mm/s; Roughness measurement; 0.1mm /s to 0.5mm /s are recommended End of scan length (x-direction) : 130mm Resolution: 0.8 nm Scanning length start (x-direction) : 0.1mm Positioning speed (text) : 0.02mm /s to 200mm /s Measuring range: 13 mm (100 mm probe arm) 26 mm (200 mm probe arm) Scan length (text) : 0.1 mm-130 mm or 260 mm Measuring force (N) : 0.5 mN to 30 mN, which can be adjusted by software
