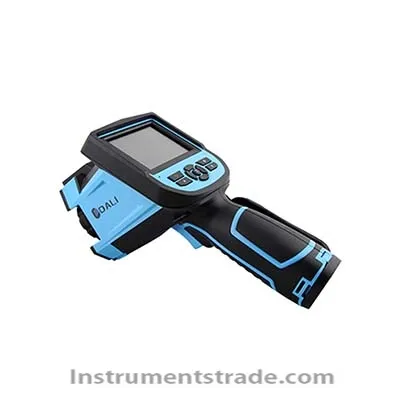

The infrared thermal imager is fast, accurate and convenient in temperature measurement.
Technical parameters:
| Project | LT3 | LT7 | ||
| Detector performance | Detector type | Uncooled focal plane microthermal type | ||
| pixel | 160×120 | 384×288 | ||
| Image performance | Field of view angle / minimum focal length | 25°×19°/0.1m | ||
| Spatial resolution | 2.72mrad | 1.36mrad | ||
| Heat sensitivity | ≤0.06℃@30℃ | ≤0.05℃@30℃ | ||
| Frame frequency | 50/60Hz | |||
| Focus | Manual focusing | |||
| wavelength coverage | 8-14um | |||
| Built-in visible light camera | 1.3 million pixels，CMOS module | 3.2 million pixels, CMOS module | ||
| Image display | liquid crystal display (LCD) | 3.5 "TFT color LCD,640 x 480 pixels | 3.5 "TFT color LCD,640 x 480 pixels | |
| Palette | 11 color palette optional (including iron red, rainbow, black and white inversion, etc.) | |||
| Image control | Automatic / manual adjustment of contrast, brightness | |||
| Measure | Temperature range | -20 ℃ -350 ℃, can be extended to 650 ℃ | -20 ℃-650 ℃, extensible 1200 ℃ | |
| Precision | ±2 ℃ or ±2% (reading range), large | |||
| Temperature measurement and correction | Automatic / manual | |||
| Measurement pattern | Real time 4 movable points, 3 removable regions (maximum temperature, minimum temperature capture, average temperature measurement), line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color) | |||
| Setting function | Date / time, temperature unit C / H / K, language | |||
| Emissivity correction | 0. 01 to 1. 0 emissivity adjustable (increment 0. 01) or corrected by a predefined material emissivity table | |||
| Background temperature correction | Voluntarily | |||
| Atmospheric transmittance correction | Automatic, based on input target distance, relative humidity, ambient temperature | |||
| image storage | Memory card | 8G Micro SD (TF) card with up to 16G support | ||
| Storage mode | Manual / automatic storage, single frame infrared storage, infrared and visible light associated storage | |||
| Infrared image format | JPEG format, with infrared raw measurement data image | |||
| Visible image format | JPEG format | |||
| Voice notes | 60-second voice recording, stored with image (built-in microphone) | |||
| Laser designator | Laser designator | Level two, 1mW/635nm red | ||
| Power supply system | Battery type | Lithium battery, rechargeable | ||
| Battery working time | 4 hours of continuous work | |||
| Charging type | Intelligent charger charging or random (AC power adapter or 12V in-car power supply) charging | |||
| Power saving mode | Automatic sleep | |||
| Enviromental parameter | Working temperature | -15℃-+50℃ | ||
| Storage temperature | -40℃~+70℃ | |||
| Humidity | ≦95％（Non-condensing） | |||
| Levels of protection | IP54 | |||
| Shock resistance | 25G，IEC68-2-29 | |||
| Vibration resistance | 2G，IEC68-2-6 | |||
| Decline | 2m | |||
| physical characteristics | Weight | 0.98Kg | ||
| Size | 230mm×105mm×245mm | |||
| Handrail belt | Both sides can be installed | |||
| Tripod | 1/4″-20-UNC | |||
| Joggle | Power supply interface | Yes，DC 12V | ||
| Memory card slot | Micro SD (TF) card holder | |||
| Video monitor 525 vidicon video out | Yes，PAL/NTSC | |||
| presentation of information | Mini-USB, image, measurement data, voice transmission to computer | |||
