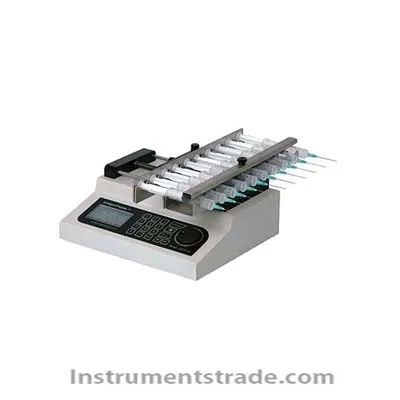

Features: 1. LSP10-1B syringe inner diameter input function: you can select the syringe from the list or directly input the syringe inner diameter to determine the syringe 2. Human-machine interface: large-screen LCD display, digital knob and membrane button operation is intuitive, simple and fast 3. Working mode: 5 working modes (perfusion/extraction/first infusion/extraction/first extraction and perfusion/continuous operation) 4. Power-down memory function: 1. EEPROM saves the setting parameters. After power-on, there is no need to reset. 2. Power off during operation in flow mode, resume running or stop according to the set parameters after power-on. 5. Traffic jam protection function: When the propulsion mechanism of the injection pump is blocked during the working process, the injection pump will stop the work of the propulsion mechanism and issue a whistle alarm. 6. Communication function: It can be connected with the host computer by 485 communication bus, and it can be controlled by the background. The 485 communication bus can be connected to the host computer and controlled by the background software. 7. External control interface: input / output control function 8. Liquid volume calibration function: More accurate flow can be obtained through the calibration procedure. 9. Syringe protection function: can prevent syringe damage by adjusting the position of the limit block Technical Parameters: Multi-channel syringe pump LSP10-1B working mode: injection, extraction, first injection, extraction, first extraction, injection, continuous Number of channels: 10 Maximum stroke: 140mm Stroke resolution: 0.156μm Line speed range: 5μm/min-130mm/min (flow rate = line speed × cross-sectional area inside the syringe) Line speed adjustment resolution: 5μm/min Stroke control accuracy: error ≤ ± 0.5% (stroke ≥ 30% of the maximum stroke) Rated linear thrust: >180N Syringe selection: built-in main manufacturer, main model syringe for selection Syringe customization: can be directly input into the syringe Flow Correction: Get a more accurate volume through the calibration procedure Operating parameter setting: injection volume, volume of extraction, injection time, extraction time Display parameter selection: volume, flow or line speed Power-down memory: After power-on, you can choose whether to continue working according to the state before power-off. Status signal output: 2-channel OC gate signal output for indicating start/stop and direction status Control signal input: 2 channel start/stop control input, 1 channel falling edge trigger signal control start and stop; 1 channel TTL level signal control start and stop Communication interface: RS485 Dimensions: 280 × 330 × 140 (mm) Weight: 5.3kg Use power: AC 90V-260V/20W Working environment temperature: 0°C-40°C Working environment relative humidity: <80%
