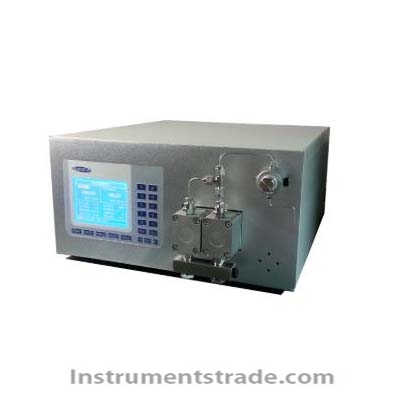

LP0110 high-pressure metering pump Introduction: The high-pressure metering pump series products have the characteristics of high flow accuracy, low pressure pulse, good repeatability, and stable quality. They support industrial networks such as Profinet, Ethercat, Ethernet/IP, Modbus/TCP, etc. In industrial applications, they can be easily connected and communicated with various automation equipment, and can be matched with Siemens, Beifu, Schneider, Omron, Panasonic, Mitsubishi, etc ABB、 PLCs from brands such as Huichuan, Delta, Rockwell, Omron, and Keyence achieve real-time data transmission and precise instruction execution. The intelligent high-pressure metering pump series products are classified according to pump head materials, including stainless steel pumps, Hastelloy pumps, high-pressure PTFE pumps, and Peek pumps. They are widely used in chemical new material equipment, microreactors, chemical reaction devices, catalytic evaluation devices for chemical feeding, reactant addition, catalyst addition, supercritical fluid transportation, foaming extrusion process, new energy research, catalytic refining kettle reactions, biological chromatography systems, DNA/RNA lipid nanoparticles and other supporting devices. Features: Multi point flow calibration: achieving high accuracy and high repeatability in fluid transport across the entire range 2. Flow pulse suppression: Cam curve compensation and flow pulse electronic suppression effectively control pressure pulses 3. Pressure setting correction: protection pressure setting of the flow path, zero point value correction to eliminate environmental interference 4 plunger cleaning function: After cleaning the plunger, reduce the wear of the sealing ring and extend the service life of the pump 5. Weight loss and weighing control: customized reactor and chemical plant inlet weighing closed-loop control system 6 communication modes: one-to-one control, one to many control, many to many control 7+communication ports: RS232/485/422, USB, wired/wireless network 8+communication protocols: custom, Modbus RTU/ASCII, Profibus DP, Profinet, etc 9. Support system integration: integration into SCADA/DCS/PLC control systems and configuration applications 10 Analog digital control: Analog input control, switch start stop control 11 Conveyor Unit Switching: Switch the flow rate unit and choose to transport by volume or weight 12 Flow rate variation control: constant, linear, gradient flow rate delivery, can be derived in any combination Real time display of readings: real-time drawing of flow rate and pressure curves, display of program running progress bar 14 Data Record Export: Real time recording of flow and pressure data, exported in tabular and graphical form 15 methods for saving and calling: Save and call multiple flow rate programs to easily switch between control methods 16 Calibration and Maintenance Function: Custom Flow Calibration to Meet Specific Operating Conditions and Restore Factory Parameters 17 Remote control function: optional remote software, remote real-time operation and monitoring of fluid equipment Technical Specifications: Infusion method: Dual plunger parallel mode, floating plunger design Flow range: 0.1-1000.0ml/min Increment: 0.1ml/min Flow accuracy: ± 0.5% Traffic repeatability: ≤ 0.5% Pressure range: ≤ 10Mpa Pressure pulsation: ≤ 0.5Mpa Flow path material: 316L stainless steel, ruby PTFE、 ceramics Pipeline link: 1/8 "standard pipeline link Display parameters: 256 * 64 dot LCD display, self luminous display screen Communication functions: RS232, USB, RS485; Supports three protocols: company protocol, Modbus protocol, and custom protocol Power supply: 85-264VAC, 50Hz Size: 550 × 420 × 222 mm3
Introduction: The high-pressure metering pump series products have the characteristics of high flow accuracy, low pressure pulse, good repeatability, and stable quality. They support industrial networks such as Profinet, Ethercat, Ethernet/IP, Modbus/TCP, etc. In industrial applications, they can be easily connected and communicated with various automation equipment, and can be matched with Siemens, Beifu, Schneider, Omron, Panasonic, Mitsubishi, etc ABB、 PLCs from brands such as Huichuan, Delta, Rockwell, Omron, and Keyence achieve real-time data transmission and precise instruction execution. The intelligent high-pressure metering pump series products are classified according to pump head materials, including stainless steel pumps, Hastelloy pumps, high-pressure PTFE pumps, and Peek pumps. They are widely used in chemical new material equipment, microreactors, chemical reaction devices, catalytic evaluation devices for chemical feeding, reactant addition, catalyst addition, supercritical fluid transportation, foaming extrusion process, new energy research, catalytic refining kettle reactions, biological chromatography systems, DNA/RNA lipid nanoparticles and other supporting devices.
