LONGF-W Suspended Solids & Sludge Concentration Meter
High-Precision Online Suspended Solids and Sludge Monitoring for Wastewater Treatment
Product Overview
The LONGF-W Suspended Solids & Sludge Concentration Meter is an advanced online analytical instrument designed for continuous monitoring of suspended solids (SS), sludge concentration, and wastewater quality in municipal and industrial treatment processes.
Using dual-beam infrared light scattering technology, the system delivers reliable and accurate measurements of activated sludge, return sludge, mixed liquor suspended solids (MLSS), and treated effluent. The sensor automatically compensates for contamination-related interference, ensuring stable performance even in demanding environments.

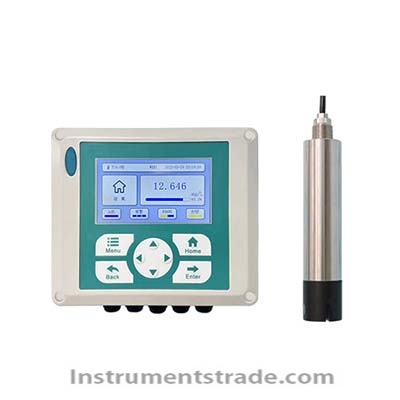

The instrument consists of a high-performance transmitter and a submersible sensor that can be easily installed in tanks, pipelines, drainage channels, pressurized pipes, and natural water bodies.
Typical Applications
Municipal wastewater treatment plants
Industrial wastewater treatment systems
Activated sludge process monitoring
Biological treatment process control
Environmental monitoring stations
Pharmaceutical and biotechnology industries
Petrochemical and energy industries
Water discharge compliance monitoring

Why Choose LONGF-W Suspended Solids Concentration Meter?
Advanced Dual-Beam Infrared Technology
The sensor utilizes dual-beam infrared scattering photometry, providing excellent measurement repeatability and long-term stability.
Reduced Color Interference
Unlike conventional optical sensors, the infrared scattering method minimizes the influence of sample color, resulting in more accurate suspended solids measurements.
Automatic Self-Diagnostic Function
Built-in diagnostic capabilities continuously monitor sensor performance and system status to ensure measurement reliability.
Optional Automatic Cleaning System
An optional cleaning brush or pneumatic self-cleaning device significantly reduces sensor fouling and maintenance requirements.
Plug-and-Play Installation
The sensor is designed for quick installation and commissioning, reducing downtime and installation costs.
Industrial-Grade Construction
Constructed from durable 316 stainless steel, the sensor is suitable for harsh wastewater and industrial environments.

LONGF-W vs Traditional Suspended Solids Meters

Feature	LONGF-W Suspended Solids Meter	Conventional SS Meter
Measurement Technology	Dual-beam infrared scattering	Single-beam optical detection
Resistance to Color Interference	Excellent	Moderate
Measurement Stability	High	Medium
Automatic Diagnostics	Yes	Often unavailable
Self-Cleaning Option	Available	Limited
Maintenance Frequency	Low	Higher
Installation	Plug-and-play	More complex
Long-Term Reliability	Excellent	Moderate

Technical Specifications

Parameter	Specification
Measurement Range	0–30 g/L (custom ranges available)
Measurement Units	g/L, mg/L, NTU (optional)
Resolution	1 mg/L
Repeatability	±1.0% FS
Calibration	Standard solution or field comparison calibration
Analog Output	4–20 mA, max load 750 Ω
Relay Output	Two programmable relay outputs, AC230V, 5A
Digital Communication	Optional RS485
Power Supply	AC220V ±10%
Transmitter Protection	IP65
Sensor Protection	IP68
Transmitter Temperature	-20°C to 60°C
Sensor Temperature	0°C to 60°C
Process Pressure	0.6–1.0 MPa
Process Connection	3/4" NPT thread
Cable Length	10 m standard
Sensor Material	316 Stainless Steel
Optional Features	Automatic cleaning brush, pneumatic self-cleaning system

Frequently Asked Questions (FAQ)
What is a suspended solids concentration meter?
A suspended solids concentration meter is an online instrument used to continuously measure the concentration of solid particles suspended in water or wastewater. It is commonly used in wastewater treatment plants to monitor sludge and process efficiency.
What industries use suspended solids analyzers?
Suspended solids analyzers are widely used in municipal wastewater treatment, industrial effluent treatment, environmental monitoring, pharmaceutical manufacturing, chemical processing, and energy industries.
Can LONGF-W measure activated sludge concentration?
Yes. The LONGF-W is ideal for monitoring activated sludge, return activated sludge (RAS), mixed liquor suspended solids (MLSS), and other biological treatment processes.
Does water color affect measurement accuracy?
No. The instrument uses infrared light scattering technology, which significantly reduces the impact of water color and improves measurement reliability.
How often does the sensor require maintenance?
Maintenance requirements are minimal. Users can further reduce maintenance frequency by selecting the optional automatic cleaning brush or pneumatic cleaning system.
Is the sensor suitable for outdoor installations?
Yes. The transmitter is rated IP65 and the submersible sensor is rated IP68, making the system suitable for both indoor and outdoor wastewater monitoring applications.

Introduction:
The suspended solids sludge concentration meter is an online analytical instrument designed to measure the concentration of suspended solids in the treatment of municipal sewage or industrial wastewater. Whether it is evaluating activated sludge and the entire biological treatment process, analyzing the wastewater discharged after purification treatment, or detecting the concentration of sludge at different stages, the suspended solids sludge concentration meter can give continuous and accurate measurement results. The suspended solids sludge concentration meter consists of a transmitter and a sensor. The sensor can be easily installed in the pool, drain pipe, pressure pipe or natural water body. The photoelectric sludge concentration meter can automatically compensate for the interference caused by pollution. Application: water quality monitoring; water treatment discharge; environmentally friendly biopharmaceuticals; petrochemical energy.
