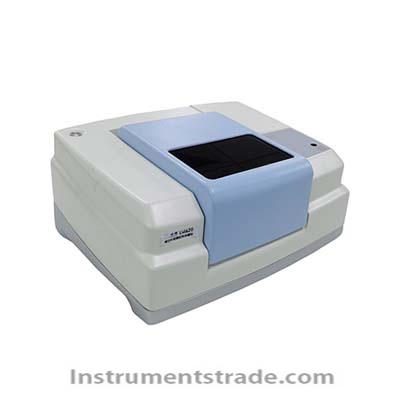

Lida-20 Fourier Transform Infrared Spectrometer

Product ID：FGhw018

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberLida-20

Brand NameTJHENGCHUANGLIDA

Payment TermsTT，PAYPAL，Alibaba.com Pay

Lida-20 Fourier Transform Infrared Spectrometer

Product Introduction
The Lida-20 Fourier Transform Infrared Spectrometer is a compact and reliable FTIR spectrometer designed for routine material identification, qualitative analysis, and research applications. With convenient installation, simple operation, and easy maintenance, it is widely used in biomedicine, materials science, petrochemicals, food safety, environmental protection, quality control, and scientific research.
The Lida-20 uses a Michelson interferometer to modulate infrared radiation into an interferogram. After the infrared beam passes through the sample, the detector collects the sample-related information. The computer then performs a Fourier transform to generate the infrared spectrum for qualitative identification and spectral analysis.

Performance Features
Intelligent FTIR Software
• User-friendly human-machine interface for quick operation by both beginners and experienced users.
• Selectable laser frequency calibration modes to meet different national standards and metrological requirements.
• Real-time data acquisition preview for monitoring the complete measurement process.
• Comprehensive infrared spectral libraries for routine identification and comparison.
• Supports user-defined spectral libraries, including adding, editing, and maintaining reference spectra.
• Available libraries may include pharmaceutical, veterinary drug, rubber, gas, polymer, protein, amino acid, forensic, inorganic, organic, solvent, food additive, flavor, fragrance, and coating spectra.
Reliable Optical System
• Sealed interferometer design with a moisture-resistant beam splitter and a large-capacity reusable desiccant cartridge.
• Enhanced moisture resistance compared with conventional open optical systems.
• Visual color-changing window for convenient monitoring and replacement of molecular sieves.
• Precision-machined optical components provide excellent consistency and stability.
• Fixed positioning installation minimizes the need for optical adjustment.
High Stability and Sensitivity
• Imported gold-coated corner-cube mirrors provide high reflectivity and precise angular performance.
• High-performance, long-life ceramic infrared source with high luminous efficiency.
• Imported high-sensitivity DLATGS detector with a moisture-resistant film.
• Stable optical alignment supports repeatable spectral measurements.
User-Friendly Design
• Large sample compartment for convenient installation of various FTIR accessories.
• Sliding sample compartment door helps reduce interference from ambient air.
• Compact and lightweight instrument design saves laboratory space.
• Modular structure simplifies maintenance and component replacement.

Working Principle
The Lida-20 Fourier transform infrared spectrometer operates according to the Michelson interferometer principle.
1. The infrared source emits broadband infrared radiation.
2. The Michelson interferometer divides and recombines the infrared beam to generate an interference signal.
3. The modulated infrared beam passes through or reflects from the sample.
4. The detector receives the interferogram containing sample-specific absorption information.
5. The software applies a Fourier transform to convert the interferogram into an infrared spectrum.
6. The resulting spectrum is compared with reference spectral libraries for material identification and analysis.

Technical Parameters

Parameter	Specification
Product Name	Lida-20 Fourier Transform Infrared Spectrometer
Spectral Range	7,800–350 cm⁻¹
Resolution	Better than 1.0 cm⁻¹
100% Transmittance Line Tilt	Better than 0.5 τ% at 2,200–1,900 cm⁻¹
Signal-to-Noise Ratio	15,000:1; 30,000:1 optional
Beam Splitter	Imported KBr substrate coated with germanium
Infrared Source	Imported high-energy, high-efficiency, long-life ceramic source
Interferometer	Michelson interferometer with 30° incidence angle
Detector	Imported high-sensitivity DLATGS detector with moisture-resistant film
Data Interface	USB 2.0
Dimensions	450 × 350 × 235 mm
Net Weight	14.2 kg
Supported Operating Systems	Windows XP, Windows Vista, Windows 7, Windows 8

Application Scenarios
The Lida-20 FTIR spectrometer is suitable for:
• Biomedicine: Identification and analysis of pharmaceutical ingredients, proteins, and amino acids.
• Materials Science: Characterization of polymers, rubber, coatings, and inorganic materials.
• Petrochemical Industry: Qualitative analysis of oils, additives, and related chemical materials.
• Food Safety: Identification of food additives, flavoring agents, and contaminants.
• Environmental Protection: Analysis of organic and inorganic substances in environmental samples.
• Quality Control: Raw material inspection, finished-product verification, and batch comparison.
• Scientific Research: Spectral collection, library matching, and material composition studies.
• Forensic Analysis: Identification of chemicals, drugs, hazardous materials, and unknown substances.

Lida-20 FTIR Spectrometer vs. Conventional Infrared Spectrometer

Feature	Lida-20 FTIR Spectrometer	Conventional Infrared Spectrometer
Measurement Principle	Michelson interferometer with Fourier transform	Conventional wavelength scanning or dispersive method
Spectral Acquisition	Rapid interferogram acquisition and software transformation	Sequential wavelength scanning
Optical Stability	Sealed optical system with moisture protection	May require more frequent environmental control
Detector	High-sensitivity DLATGS detector	Depends on instrument configuration
Spectral Libraries	Multiple professional libraries and user-defined libraries	May have limited library functions
Sample Compartment	Large compartment for accessory expansion	Depends on instrument design
Maintenance	Modular design and reusable desiccant cartridge	May require more complex maintenance
Typical Applications	Research, production, quality control, and routine identification	General infrared measurement

Frequently Asked Questions
1. What is the Lida-20 used for?
The Lida-20 is used for infrared spectral analysis, material identification, qualitative testing, research, and quality control in pharmaceutical, chemical, food, environmental, and materials laboratories.
2. What is the spectral range of the Lida-20?
The standard spectral range is 7,800–350 cm⁻¹, covering a wide range of common mid-infrared analysis applications.
3. What detector does the instrument use?
The instrument uses an imported, high-sensitivity DLATGS detector equipped with a moisture-resistant film for improved stability.
4. Does the Lida-20 require frequent optical adjustment?
No. The instrument uses a fixed positioning installation structure designed to minimize optical adjustment and simplify operation.
5. Does the instrument include spectral libraries?
Yes. The software supports multiple professional infrared spectral libraries and allows users to create, add, and maintain custom spectral libraries.
6. Can the Lida-20 be used for pharmaceutical analysis?
Yes. It can support the identification and comparison of pharmaceutical materials, active ingredients, excipients, and other related substances when suitable sampling accessories and reference spectra are used.
7. What type of infrared source is used?
The Lida-20 uses an imported high-energy, high-efficiency, long-life ceramic infrared source.
8. How is data transferred from the instrument?
The spectrometer uses a USB 2.0 data transmission interface to connect with the computer and analysis software.
9. Which operating systems are supported?
The supplied specifications list Windows XP, Windows Vista, Windows 7, and Windows 8. Compatibility with newer Windows versions should be confirmed before purchase.
