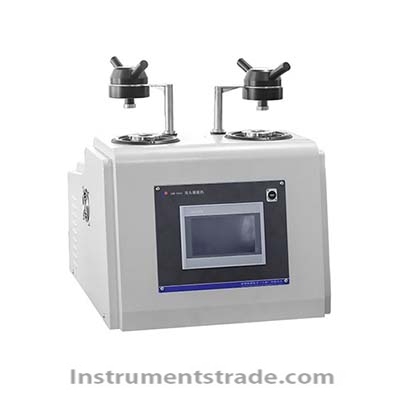

LHM-3000D Dual Station Fully Automatic Metallographic Embedding Machine

Product ID：Otherlxqj025

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberLHM-3000D

Brand NameNAIBO

Payment TermsTT，PAYPAL，Alibaba.com Pay

LHM-3000D Dual Station Fully Automatic Metallographic Embedding Machine
characteristic:

When inserting the upper mold, there is no need to alignit, simply press down on the upper mold, automatically align and enterthe mold cavity.
Simultaneously embed four samples (dual station) or embed two samples
(single station).
One click start automatically completes the sample preparation process, with human-machine interface and PLC control, making the system stable and reliable.
Built in storage of 99 sets of inlay processes (saving parameters such as inlay materials), there is always one process that meets specific requirements. 5.In order to prevent the sample from being deformed or crushed by compression, a pre compression function is built-in, and the pre compression pressure, temperature, and time can be set.

6.Efficient heating/cooling system, maximizing heat transfer and cooling, achieving rapid circulation.
7.The electric hydraulic system has safe loading pressure, stable and reliable pressure.
8. A simple and effective top sealing mechanism that eliminates the need for manual assistance when ejecting samples.
9. Rotate the top sealing mechanism, automatically eject, reach the highest position, automatically stop, and remove the sample.
10. USB interface, embedding process parameters are imported and exported through USB flash drive.
11. The fully automatic inlaying machine has LHM-3000 single station and LHM-3000D dual station options.
Technical parameters:

specifications	LHM-3000	LHM-3000D
Mould diameter	Standard configuration: 30mm ( optional with 25mm/40mm/50mm) Customizable: 1in/1.25in/1.5in
Number of mold sets (including double sample partitions)	1 set	2 sets
Embedding program	Programmable inlay process library, capable of storing 99 sets of inlay processes
Program input/output	U disk
heater	2000W	4000W
Maximum number of embedded samples	2	4
Embedding temperature range	Adjustable from 0 to 200 ℃
Embedding time range	0～30min
Pressure Range	0-6MPa adjustable
Minimum total embedding time	6 minutes (with a diameter of 30 samples); About 8 minutes (for a 50 inch sample)
Pre compression function	Pre pressure, temperature, and time can be set
Way of Pressure	Automatic (electric hydraulic system)
Cooling method	Automatic water cooling (optional chiller), controlled by solenoid valve
Operation and display mode	7-inch touch screen operation and display
maximum power	2200W	4200W
power supply	AC220V 50HZ
Mold cavity height	135mm， Effective height 60mm
External dimensions	680×570×530mm
weight	90Kg	100KG
other	Sample placement tray	NO

characteristic:
1. When inserting the upper mold, there is no need to alignit, simply press down on the upper mold, automatically align and enterthe mold cavity.
2. Simultaneously embed four samples (dual station) or embed two samples
  (single station).
3. One click start automatically completes the sample preparation process, with human-machine interface and PLC control, making the system stable and reliable.
4. Built in storage of 99 sets of inlay processes (saving parameters such as inlay materials), there is always one process that meets specific requirements. 5.In order to prevent the sample from being deformed or crushed by compression, a pre compression function is built-in, and the pre compression pressure, temperature, and time can be set.
6.Efficient heating/cooling system, maximizing heat transfer and cooling, achieving rapid circulation.
7.The electric hydraulic system has safe loading pressure, stable and reliable pressure.
8. A simple and effective top sealing mechanism that eliminates the need for manual assistance when ejecting samples.
9. Rotate the top sealing mechanism, automatically eject, reach the highest position, automatically stop, and remove the sample.
10. USB interface, embedding process parameters are imported and exported through USB flash drive.
11. The fully automatic inlaying machine has LHM-3000 single station and LHM-3000D dual station options.
