LHM-2000W Automatic Metallographic Embedding Machine

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Model NumberLHM

Brand NameNAIBO

Payment TermsTT，PAYPAL，Alibaba.com Pay

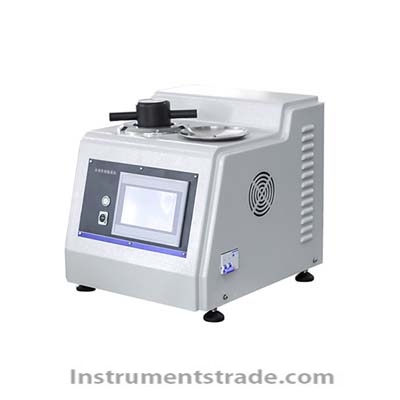

LHM-2000W Automatic Metallographic Embedding Machine
characteristic:

The human-machine i
nterface and PLC control mak
e the system stable and reliable.
Adopt motor closed-loop
control to apply pressure
to the inlay material, ensuring stable and
reliable press
ure with low noise.
High quality heating/cooling system, optimized heat transfer and cooling, achieving rapid circulation. The preheating function maintains a constant standby temperature of the device, reduces heating time, and shortens sample preparation time.
The touch screen displays the operation interface, with simple operation and convenient and intuitive parameter settings
Built in storage of 99 sets of inlay processes (saving parameters such as inlay materials), one of which can be called at any time to meet specific requirements.
One click start automatically completes the sample preparation process.
USB interface, embedding process parameters are imported and exported through a USB flash drive.

Technical parameters:

Mould diameter	Standard configuration with a diameter of 30mm (optional with diameters of 22mm and 45mm)
heater	Power: 560W
Embedding temperature range	Adjustable from 0 to 200 ℃
Embedding time range	0～30min
Way of Pressure	Automatic (motor loading)
Cooling method	Water cooling (optional chiller)
Operation and display mode	Touch Screen
Embedding program	Editable inlay process library, capable of storing 99 sets of inlay processes
Inlay process input/output	U disk
Working mode	Automatic and manual can be switched
Total power:	1000W
power supply	AC220V 50HZ
External dimensions	530×430×410mm
weight	66Kg

characteristic:
1. The human-machine i
  nterface and PLC control mak
  e the system stable and reliable.
2. Adopt motor closed-loop
  control to apply pressure
  to the inlay material, ensuring stable and
  reliable press
  ure with low noise.
3. High quality heating/cooling system, optimized heat transfer and cooling, achieving rapid circulation. The preheating function maintains a constant standby temperature of the device, reduces heating time, and shortens sample preparation time.
4. The touch screen displays the operation interface, with simple operation and convenient and intuitive parameter settings
5. Built in storage of 99 sets of inlay processes (saving parameters such as inlay materials), one of which can be called at any time to meet specific requirements.
6. One click start automatically completes the sample preparation process.
7. USB interface, embedding process parameters are imported and exported through a USB flash drive.
