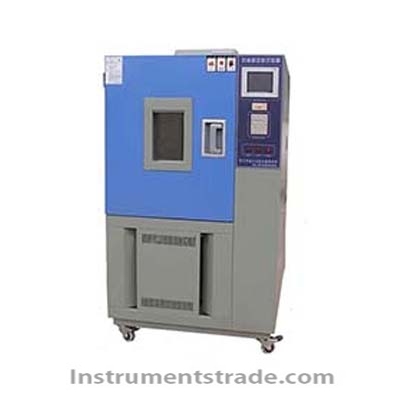

LHH Pharmaceutical Stability Test Chamber

Position: Home > > Industry specific instrument > Drug testing instrument > Drug stability test case > LHH Pharmaceutical Stability Test Chamber

LHH Pharmaceutical Stability Test Chamber

Product ID：HZYJywwd007

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberLHH

Brand NameJTLIANGYOU

Payment TermsTT，PAYPAL，Alibaba.com Pay

LHH Pharmaceutical Stability Test Chamber
High Precision Drug Stability Testing Chamber for Temperature, Humidity and Light Simulation

Product Introduction
The LHH Pharmaceutical Stability Test Chamber is a professional drug stability testing chamber designed to provide long-term stable temperature, humidity, and illumination environments for pharmaceutical stability evaluation.
It is widely used in pharmaceutical companies, medical research institutions, biotechnology laboratories, and life science industries for accelerated stability testing, long-term stability testing, high-temperature testing, and photostability testing.
The LHH series stability chamber simulates different environmental conditions according to pharmaceutical testing requirements, including 25℃/60%RH long-term stability testing, 40℃/75%RH accelerated stability testing, and strong light exposure testing. It is an ideal solution for GMP-compliant pharmaceutical quality evaluation and new drug development.

Performance Features
•   Precise temperature and humidity control
Provides stable environmental conditions with high accuracy for reliable pharmaceutical stability studies.
•   GMP-compliant stability testing environment
Supports standard pharmaceutical stability test conditions including long-term and accelerated testing.
•   Advanced BTC balanced temperature control technology
Ensures uniform heating performance and accurate temperature regulation.
•   Independent steam humidification system
Uses external isolated boiler steam humidification for stable humidity control.
•   High-quality stainless steel chamber design
Interior chamber adopts SUS304 stainless steel for corrosion resistance and easy cleaning.
•   Programmable intelligent control system
Equipped with imported high-precision LCD touchscreen controller supporting curve programming and storage.
•   Excellent insulation performance
Uses high-temperature and low-temperature resistant silicone sealing strips to reduce heat loss.
•   High-efficiency refrigeration system
Equipped with imported refrigeration components for reliable long-term operation.
•   Observation window and lighting system
Allows users to observe samples without affecting chamber conditions.
•   Multiple safety protections
Includes over-temperature, over-pressure, phase sequence, motor overload, and leakage protection.

Working Principle
The LHH Pharmaceutical Stability Test Chamber creates controlled environmental conditions by precisely regulating temperature, humidity, and illumination.
The temperature control system uses BTC balanced temperature regulation technology combined with PT100 platinum resistance sensors to monitor internal temperature changes. The heating and refrigeration systems automatically adjust output to maintain stable temperature conditions.
Humidity is controlled through an external isolated boiler steam humidification system, allowing accurate moisture adjustment within the chamber.
The refrigeration system, air circulation system, and intelligent controller work together to maintain uniform environmental conditions. The programmable touchscreen controller records and executes predefined temperature and humidity curves for automated stability testing.

Pharmaceutical Stability Test Conditions

Test Type	Temperature	Humidity	Duration
Long-term Stability Test	25℃ ±2℃	60%RH ±5%RH	12 months
Accelerated Stability Test	40℃ ±2℃	75%RH ±5%RH	6 months
Light Stability Test	—	—	4500 ±500 LX illumination

Technical Parameters

Parameter	Specification
Product Series	LHH Pharmaceutical Stability Test Chamber
Temperature Range	0–80℃
Temperature Fluctuation	≤±0.5℃
Temperature Uniformity	≤±2℃
Humidity Range	30–98% RH
Humidity Accuracy	+2 to -3% RH
Heating Rate	≥2–3℃/min
Cooling Rate	≤0.7–1℃/min
Humidification Method	External isolated boiler steam humidification
Heating System	Nickel-chromium alloy electric heater with stainless steel fin radiator
Cooling System	Multi-stage fin evaporator
Air Circulation	Single circulation, low-noise stainless steel centrifugal fan
Refrigeration Mode	Single-stage or cascade refrigeration (air/water cooled)
Compressor	Tecumseh fully enclosed refrigeration compressor
Temperature Sensor	Imported Φ3mm PT100 platinum resistance sensor
Controller	Korean Triad LCD touchscreen controller
Safety Protection	Leakage, over-temperature, fuse, compressor over-pressure protection
Observation Window	250×300 mm insulated hollow glass window
Test Port	Φ50 mm
Standard Shelves	2 sets
Lighting	High brightness cold light source lamp
Power Supply	220V 50Hz / 380V 50Hz three-phase four-wire

Model Specifications

Model	Chamber Size (W×D×H mm)
LHH-200	500×600×700
LHH-250	500×650×700
LHH-500	800×800×1000
LHH-1000	1000×1000×1000

Application Scenarios
1. Pharmaceutical Stability Testing
Used for evaluating drug shelf life, storage conditions, and degradation behavior.
2. New Drug Development
Supports accelerated aging tests and formulation stability studies during pharmaceutical research.
3. GMP Pharmaceutical Production
Provides standardized environmental simulation for quality control and regulatory compliance.
4. Biotechnology Research
Suitable for biological products, vaccines, reagents, and life science sample stability evaluation.
5. Medical and Scientific Laboratories
Used for long-term environmental storage tests and pharmaceutical research applications.

LHH Stability Test Chamber vs Conventional Environmental Chambers

Feature	LHH Pharmaceutical Stability Test Chamber	Conventional Environmental Chamber
Application Focus	Pharmaceutical stability testing	General environmental testing
Temperature Accuracy	≤±0.5℃ fluctuation	Usually lower precision
Humidity Control	30–98%RH with steam humidification	General humidification methods
GMP Compliance	Designed for pharmaceutical testing	Not specifically pharmaceutical oriented
Light Testing	Supports pharmaceutical photostability tests	Limited options
Data Programming	Programmable touchscreen curves	Basic parameter control
Safety Functions	Multiple protection systems	Standard safety functions

Frequently Asked Questions (FAQ)
1. What is the LHH Pharmaceutical Stability Test Chamber used for?
The LHH series is used for pharmaceutical stability testing, including long-term stability tests, accelerated aging tests, high-temperature tests, and light stability studies.
2. What stability testing standards does the LHH chamber support?
It supports common pharmaceutical stability conditions such as 25℃/60%RH long-term testing and 40℃/75%RH accelerated testing.
3. What is the temperature range of the LHH stability chamber?
The chamber provides a temperature range of 0–80℃.
4. How accurate is the temperature control?
The temperature fluctuation is ≤±0.5℃ and temperature uniformity is ≤±2℃.
5. What humidity range can the chamber provide?
The LHH stability chamber supports humidity control from 30%RH to 98%RH.
6. Does the LHH chamber support light stability testing?
Yes. It supports strong light exposure testing with illumination conditions of 4500±500 LX.
7. What control system does the LHH stability chamber use?
It uses a high-precision LCD touchscreen controller supporting programming and storage of temperature-humidity curves.
8. What safety functions are included?
The system includes leakage protection, over-temperature protection, fuse protection, and compressor over-pressure protection.
