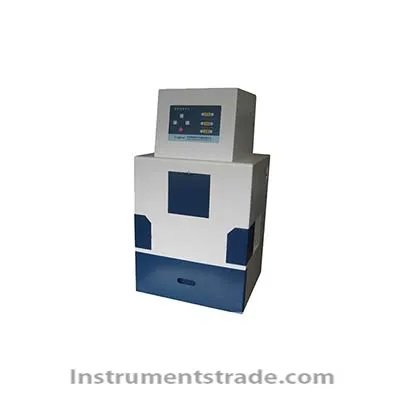

LG2080 gel imaging system Features
Import professional digital CCD camera to ensure clear image;
Imported automatic zoom lens for easy capture of images;
Ultraviolet and white light board, light in design and easy to use;
US imported special gel analysis software and its Chinese version of Chinese software are optional;
Special observation and tapping device; Technical Parameters
Professional digital CCD: 5 million pixels, 2 in 1 (color, 256 gray)
Maximum resolution: 2590×1944
Unit pixel: 2.2um × 2.2um
Signal to noise ratio: 40.5DB
CCD lens interface: C/CS
CCD computer interface: USB2.0
Scanning method: Progressive scanning
Lens: Motor-controlled zoom lens: f/1. 2, 8-48mm guarantees large light input and high imaging speed
Filter lens: A coating filter developed for a variety of fluorescent dye gel imaging properties
Analysis software: US import analysis software (English / Chinese version) and 2D two-dimensional electrophoresis analysis software
Detection sensitivity: Detection of nucleic acids as low as 0.1 ng
Ambient temperature: -30-70°C
Number of data bits: 8bit, 10bit
Dynamic range: 66.5DB
Exposure time: 0-2000ms
Computer Control: Highly programmed (computer controlled black box / power / UV / white light switch / aperture / focal length)
Gluing device: Special observation and tapping device (viewing angle and object 90°)
Light source: Transmitted 300nm, reflected 254nm, 365nm, transmitted ultraviolet light, transmitted white light, white light, reflected ultraviolet
Sample size: UV transmission 210mm × 260mm, white light transmission 230mm × 260mm
Scope of application: It can be used for imaging and analysis of DNA/RNA gel, protein gel, imprinted hybrid membrane autoradiography gel, ELISA plate, thin-layer chromatography plate, culture dish.
Operating system and compatibility: Windows and WINNT
Features
Import professional digital CCD camera to ensure clear image;
Imported automatic zoom lens for easy capture of images;
Ultraviolet and white light board, light in design and easy to use;
US imported special gel analysis software and its Chinese version of Chinese software are optional;
Special observation and tapping device;
