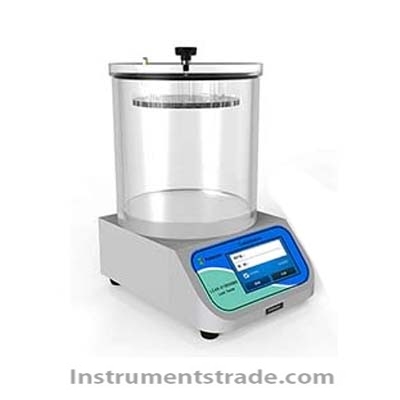

LEAK-01 Package Leak and Burst Tester

Product ID：HZBZmfsy014

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberLEAK-01

Brand NameJNMILAI

Payment TermsTT，PAYPAL，Alibaba.com Pay

LEAK-01 Package Leak and Burst Tester

Product Introduction
The LEAK-01 Package Leak and Burst Tester is designed to evaluate packaging seal integrity, pressure resistance, burst strength, and long-term creep performance. Using a microcomputer-controlled positive pressure method, it supports multiple test modes for assessing the mechanical integrity of flexible packaging, medical sterilization packaging, tubes, and blister packs.
The instrument features a touchscreen interface, LCD display, programmable test parameters, automatic data statistics, and result storage. Users can select between restrained and unrestrained expansion test methods according to their testing requirements. Optional higher-pressure measurement ranges provide additional flexibility for different packaging applications.
With support for burst testing, creep testing, and creep-to-burst testing, the LEAK-01 is suitable for packaging quality control, material development, and laboratory testing.

Performance Features
1. Positive pressure testing: Evaluates packaging pressure resistance and seal integrity through controlled gas pressurization.
2.Three test modes: Supports burst testing, creep testing, and creep-to-burst testing.
3.Dual expansion methods: Offers restrained and unrestrained expansion testing to accommodate different packaging conditions.
4.Touchscreen operation: Combines a menu-driven interface, PVC control panel, and LCD display for convenient operation.
5. Automatic data statistics: Dedicated software supports automatic calculation and statistical analysis of test results.
6.Programmable test parameters: Saves multiple test configurations for repeatable testing procedures.
7. Automatic result storage: Stores test results for convenient review and quality documentation.
8. Selectable pressure ranges: Provides a standard range of 0–600 kPa and an optional range of 0–1.6 MPa.
9. Simplified test workflow: Supports one-touch test operation and convenient parameter configuration.
10. Data communication and printing: Includes a microprinter and standard RS232 interface for data output and computer connectivity.

Working Principle
The LEAK-01 uses the positive pressure method to evaluate the pressure resistance and failure behavior of packaging samples. Gas is introduced into the sample under controlled conditions, and pressure behavior or time to failure is monitored according to the selected test mode.
• Burst Test: Gas pressure is increased until the sample ruptures. The instrument records the maximum pressure reached before failure.
• Creep Test: The sample is pressurized to 70% of its measured or established burst pressure and held for a specified period. Pressure changes are monitored to evaluate creep resistance.
• Creep-to-Burst Test: The sample is pressurized to 90% of its measured or established burst pressure, and the time required for rupture is recorded.
The instrument also supports restrained and unrestrained expansion testing. These methods allow users to evaluate packaging behavior under different expansion conditions.
Note: The pressure percentages and test procedures should be configured according to the applicable test method and the manufacturer's operating instructions.

Technical Parameters

Parameter	Specification
Model	LEAK-01
Product Type	Package Leak and Burst Tester
Testing Principle	Positive pressure method
Standard Pressure Range	0–600 kPa / 0–87.0 psi
Optional Pressure Range	0–1.6 MPa / 0–232.1 psi
Standard Inflation Head Diameter	Ø4 mm
Required Air Supply Pressure	0.4–0.9 MPa
Air Supply Connection	Ø6 mm polyurethane tubing
Test Modes	Burst, creep, and creep-to-burst
Expansion Methods	Restrained and unrestrained
User Interface	Touchscreen, menu-driven interface, and LCD display
Data Management	Automatic statistics, parameter storage, and test result storage
Data Output	Built-in microprinter and RS232 interface
Instrument Dimensions (L × W × H)	400 × 270 × 180 mm
Test Stand Dimensions (L × W × H)	375 × 275 × 345 mm
Power Supply	AC 220 V, 50 Hz
Net Weight	20 kg

The compressed air supply must be provided by the user. The optional 1.6 MPa range requires separate purchase.

Application Scenarios
• Medical sterilization packaging: Evaluates pressure resistance and packaging integrity for medical packaging systems, supporting relevant packaging validation procedures.
• Flexible plastic bags: Tests plastic film, aluminum foil, paper-plastic, and aluminum-plastic composite packaging for burst resistance.
• Pharmaceutical and cosmetic tubes: Tests toothpaste tubes, facial cleanser tubes, cosmetic containers, and pharmaceutical ointment tubes.
• Food packaging: Evaluates pressure resistance and mechanical integrity of suitable flexible food packaging.
• Packaging creep evaluation: Measures pressure stability and time-dependent deformation behavior in bags, boxes, and other compatible packages.
• Blister packaging: Tests the pressure resistance and rupture behavior of blister packs.
• Aerosol valves: Evaluates pressure-related sealing performance of compatible aerosol valves used in insecticides, styling products, pharmaceutical sprays, and spray paints.
• Packaging quality laboratories: Supports product development, production inspection, and quality assurance testing.

LEAK-01 vs. Conventional Packaging Burst Testers

Comparison Item	LEAK-01	Basic Burst Tester
Testing Principle	Positive pressure	Depends on model
Test Modes	Burst, creep, and creep-to-burst	Often limited to burst testing
Pressure Range	0–600 kPa standard; 0–1.6 MPa optional	Varies by model
Expansion Control	Restrained and unrestrained methods	Depends on configuration
Parameter Storage	Multiple test configurations	May be limited
Data Processing	Automatic statistics and result storage	Depends on software
Data Output	Microprinter and RS232	Depends on connectivity
User Interface	Touchscreen and menu-driven operation	Varies by model
Typical Applications	Bags, tubes, blister packs, and compatible aerosol valves	Depends on fixture and test method

Frequently Asked Questions
1. What is the LEAK-01 Package Leak and Burst Tester used for?
It evaluates packaging pressure resistance, burst strength, creep behavior, and time to rupture for suitable packaging products and components.
2. What test modes does the LEAK-01 support?
It supports burst testing, creep testing, and creep-to-burst testing, allowing users to assess different aspects of package mechanical integrity.
3. What is the standard pressure range?
The standard measurement range is 0–600 kPa, equivalent to 0–87.0 psi. An optional 0–1.6 MPa range is available.
4. What is the difference between creep testing and creep-to-burst testing?
Creep testing holds the sample at a specified pressure for a set period and monitors pressure changes. Creep-to-burst testing applies a specified pressure and records how long the sample takes to rupture.
5. Can the LEAK-01 test medical packaging?
Yes. It is suitable for relevant medical packaging pressure and burst tests. Users should confirm the applicable test method and instrument configuration when evaluating compliance with medical packaging standards.
6. Which packaging materials can be tested?
Suitable applications include plastic film bags, aluminum foil packaging, paper-plastic and aluminum-plastic composite bags, tubes, boxes, and blister packs, provided compatible fixtures and procedures are used.
7. Does the instrument require an external air supply?
Yes. The user must provide a compressed air source with a pressure of 0.4–0.9 MPa, connected through Ø6 mm polyurethane tubing.
8. Can test data be stored and exported?
The instrument supports automatic test result storage and statistical processing. Its standard RS232 interface enables connection to a computer, and a built-in microprinter supports test result printing.
9. Does the LEAK-01 comply with medical packaging standards?
The instrument is described for applications involving GB/T 19633.1 medical sterilization packaging. Compliance depends on the selected test procedure, applicable standard edition, and validation of the complete testing setup.
