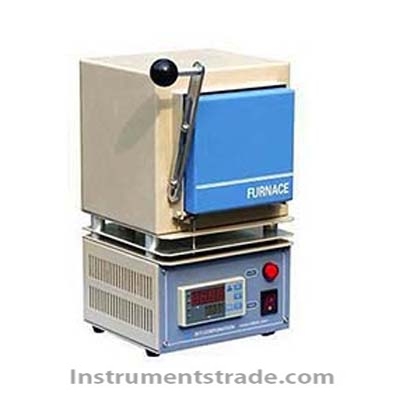

KSL-1100X-S 1100°C Mini Box Furnace (1L)

Position: Home > > Lab general equipment > Heating / drying equipment > Experimental furnace > KSL-1100X-S 1100°C Mini Box Furnace (1L)

KSL-1100X-S 1100°C Mini Box Furnace (1L)

Product ID：SYJRGZsyl020

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberKSL-1100X-S

Brand NameSYKEJING

Payment TermsTT，PAYPAL，Alibaba.com Pay

KSL-1100X-S 1100°C Mini Box Furnace (1L)

Product Introduction
The KSL-1100X-S 1100°C Mini Box Furnace is a compact 1-liter laboratory muffle furnace designed for high-temperature heating, sintering, annealing, heat treatment, and material research.
Using a resistance-wire heating element, the furnace reaches a maximum temperature of 1100°C for short-term operation and supports continuous operation at 1000°C. Its 100 × 100 × 100 mm chamber provides a compact yet practical heating space for laboratory samples.
The furnace uses a down-opening door for convenient sample loading and unloading. A door safety switch automatically disconnects power when the door is opened. Gas inlet and outlet ports are provided for processing samples under oxygen or inert gas atmospheres.
With high-purity alumina polycrystalline fiber insulation, an imported alumina coating, PID temperature control, and programmable 30-step heating profiles, the KSL-1100X-S mini box furnace provides efficient and precise thermal processing in laboratories and research environments.
Its compact size and low weight also allow it to be installed inside a glove box for sintering under vacuum or controlled atmospheres, subject to the appropriate system configuration.

Key Features
• Maximum temperature of 1100°C for short-term operation.
• Continuous operating temperature up to 1000°C.
• Compact 1 L furnace chamber.
• Resistance-wire heating element.
• High-purity alumina polycrystalline fiber insulation reduces heat loss.
• Internal imported alumina coating improves heat reflection and heating efficiency.
• Power consumption is claimed to be approximately 30% lower than comparable products.
• Down-opening furnace door simplifies sample loading and unloading.
• Safety switch automatically cuts power when the door is opened.
• Gas inlet and outlet ports for oxygen or inert gas processing.
• PID temperature controller with 30 programmable heating/cooling steps.
• Maximum heating/cooling rate of 30°C/min.
• Temperature control accuracy of ±1°C.
• Compact and lightweight design.
• Suitable for glove-box installation and controlled-atmosphere research.
• CE certified.

Working Principle
The KSL-1100X-S mini muffle furnace uses resistance wire as the heating element. When electrical power is supplied, the resistance wire converts electrical energy into heat, which is transferred to the furnace chamber and samples.
The high-purity alumina fiber insulation and internal alumina coating help reduce heat loss and improve thermal efficiency. A K-type thermocouple continuously measures the furnace temperature, while the PID controller adjusts heating power according to the programmed temperature profile.
Users can program up to 30 temperature ramp and hold stages, enabling controlled heating and cooling procedures for different materials.
The furnace is also equipped with gas inlet and outlet ports. When properly connected to an external gas supply, samples can be treated under oxygen or inert-gas conditions. The compact furnace can also be integrated into a suitable glove-box environment for controlled-atmosphere or vacuum-related material processing.

Technical Parameters

Parameter	Specification
Model	KSL-1100X-S
Product Type	Mini Box Furnace / Mini Muffle Furnace
Furnace Capacity	1 L
Furnace Chamber	100 × 100 × 100 mm
Maximum Temperature	1100°C (<1 h)
Continuous Working Temperature	1000°C
Heating Element	Resistance wire
Maximum Heating/Cooling Rate	30°C/min
Temperature Control Accuracy	±1°C
Temperature Controller	PID
Programmable Programs	30-step heating/cooling program
Thermocouple	K-type
Door Type	Down-opening
Gas Ports	Ø8 mm barbed fittings
Atmosphere	Oxygen or inert gas, with external setup
Power Supply	110/220 V, 50 Hz
Rated Power	700 W / 1 kW
Dimensions	200 × 230 × 360 mm
Weight	8 kg
Certification	CE

Standard Accessories
The KSL-1100X-S is supplied with:
• 1 × K-type thermocouple
• 1 × refractory support brick
• 1 × crucible tongs
• 1 × pair of high-temperature gloves
Optional Accessories
• Alumina crucible
• Additional refractory support brick
• High-temperature gloves

Application Scenarios
The KSL-1100X-S 1100°C laboratory box furnace is suitable for:
• High-temperature material sintering
• Ceramic material research
• Powder material processing
• Metal annealing
• Heat treatment
• Material calcination
• Laboratory thermal processing
• Material quality inspection
• Research and development
• University laboratory experiments
• Scientific research institutes
• Industrial material testing
• Controlled-atmosphere heat treatment
Its compact 1 L chamber is particularly suitable for small-batch laboratory experiments and research where precise temperature control and limited sample quantities are required.

KSL-1100X-S vs. Conventional Laboratory Box Furnace

Feature	KSL-1100X-S Mini Box Furnace	Conventional Box Furnace
Furnace Capacity	1 L	Usually larger
Maximum Temperature	1100°C	Varies
Continuous Temperature	1000°C	Varies
Temperature Accuracy	±1°C	Depends on controller
Heating Rate	Up to 30°C/min	Depends on model
Programmable Profiles	30 steps	Depends on model
Furnace Door	Down-opening	Various designs
Gas Ports	Standard	May be optional
Glove Box Compatibility	Suitable for compact integration	Often less convenient
Insulation	High-purity alumina polycrystalline fiber	Varies
Footprint	Compact	Generally larger
Safety Door Switch	Yes	Depends on model

The KSL-1100X-S mini muffle furnace is optimized for small-volume high-temperature laboratory processing. Its compact 1 L chamber, rapid heating, programmable PID control, gas ports, and glove-box compatibility make it particularly suitable for research applications requiring controlled thermal treatment without the footprint of a conventional large box furnace.

Frequently Asked Questions (FAQ)
1. What is the maximum temperature of the KSL-1100X-S?
The furnace can reach a maximum temperature of 1100°C for operation under 1 hour and supports continuous operation at 1000°C.
2. What is the furnace chamber size?
The internal furnace chamber measures 100 × 100 × 100 mm, providing approximately 1 L of chamber volume.
3. What heating element does the furnace use?
The KSL-1100X-S uses a resistance-wire heating element for high-temperature heating.
4. How accurate is the temperature control?
The specified temperature control accuracy is ±1°C, using a K-type thermocouple and PID controller.
5. Can the furnace run programmable heating profiles?
Yes. The PID controller supports up to 30 programmable heating and cooling stages, allowing multi-step temperature procedures.
6. Can samples be processed under an inert gas atmosphere?
Yes. The furnace has Ø8 mm gas inlet and outlet fittings for oxygen or inert gas processing. An external gas supply and appropriate setup are required.
7. Can the KSL-1100X-S be installed inside a glove box?
Yes. Its compact dimensions and lightweight construction make it suitable for installation in an appropriate glove-box system for controlled-atmosphere material processing.
8. Does the furnace have a door safety function?
Yes. A safety switch automatically cuts off the power when the furnace door is opened.
9. What accessories are included?
Standard accessories include a K-type thermocouple, refractory support brick, crucible tongs, and high-temperature gloves. Alumina crucibles and additional refractory bricks are available as optional accessories.
