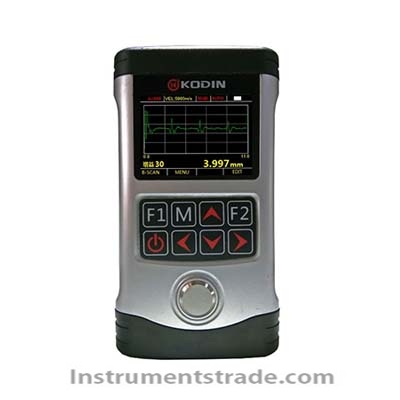

KODIN3000HM Ultrasonic Thickness Gauge

Position: Home > > Physical property test > Thickness gauge > Ultrasonic thickness gauge > KODIN3000HM Ultrasonic Thickness Gauge

KODIN3000HM Ultrasonic Thickness Gauge

Product ID：WCHcs031

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberKODIN3000HM

Brand NameSDRUIZHIKEDIAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

KODIN3000HM Ultrasonic Thickness Gauge

Product Introduction
The KODIN3000HM Ultrasonic Thickness Gauge is a high-precision intelligent ultrasonic thickness meter designed for fast and reliable non-destructive thickness measurement. It uses advanced high-speed data acquisition technology and integrates A-scan, B-scan, numerical measurement, and USB communication in one portable instrument.
With a 2.4-inch high-definition TFT color display, the measurement interface is clear and easy to read. Multiple ultrasonic measurement modes allow the KODIN3000HM to measure materials across a broad thickness range, including thin-wall metal components.
The portable ultrasonic thickness gauge is particularly suitable for thickness inspection of automotive steel sheets, fireproof and security doors, copper and steel doors, fire extinguishers, office cabinets, metal stair handrails, kitchen equipment, and other thin-wall materials.

Key Features
• High-precision intelligent ultrasonic thickness measurement.
• Advanced high-speed data acquisition technology.
• Integrated A-scan, B-scan, and numerical measurement modes.
• Multiple measurement methods for different material and thickness conditions.
• USB communication for convenient data transmission.
• 2.4-inch TFT color display with 320 × 240 resolution.
• Measurement resolution selectable from 0.001, 0.01, or 0.1.
• Adjustable material sound velocity from 1000 to 9999 m/s.
• Supports both millimeter and inch units.
• Compact and lightweight portable design.
• Suitable for thin-wall metal thickness inspection.

Working Principle
The KODIN3000HM ultrasonic thickness gauge uses ultrasonic pulse-echo technology to determine material thickness without cutting or damaging the test piece.
An ultrasonic probe sends a high-frequency sound pulse into the material. When the ultrasonic wave reaches the opposite surface, part of the signal is reflected back to the probe. The instrument measures the propagation time of the ultrasonic pulse and calculates the material thickness according to the preset or calibrated sound velocity.
The instrument supports several measurement methods:
• Pulse-Echo: suitable for general thickness measurement.
• Echo-Echo: useful for measuring through coatings or painted surfaces under suitable conditions.
• Multiple-Echo: provides an additional method for thin material inspection.
• Automatic Mode: automatically selects an appropriate measurement approach within the specified range.
The A-scan provides waveform information for signal analysis, while B-scan can provide a cross-sectional representation of thickness variation.

Technical Parameters

Parameter	Specification
Model	KODIN3000HM
Product Type	Ultrasonic Thickness Gauge
Measurement Method	Pulse-Echo, Echo-Echo, Multiple-Echo, Automatic
Pulse-Echo Range	1.2–26 mm
Echo-Echo Range	0.2–13 mm
Multiple-Echo Range	0.2–9 mm
Automatic Mode Range	0.2–26 mm
Measurement Resolution	0.001 / 0.01 / 0.1
Material Sound Velocity	1000–9999 m/s
Display	2.4-inch TFT color display
Display Resolution	320 × 240 pixels
Display Modes	Numerical, A-scan, B-scan
Measurement Units	mm / inch
Operating Temperature	-10°C to 60°C
Relative Humidity	<90% RH
Communication	USB
Power Supply	2 × AA batteries
Dimensions	146 × 81 × 30 mm
Weight	300 g, including batteries

Application Scenarios
The KODIN3000HM portable ultrasonic thickness meter is suitable for non-destructive thickness inspection of:
• Automotive body steel sheets
• Fireproof doors
• Security doors
• Copper and steel doors
• Fire extinguishers
• Office filing cabinets
• Metal stair handrails
• Kitchen and cooking equipment
• Thin-wall metal components
• Metal fabrication products
• General industrial components
• Quality control and material inspection
Its compact design makes it suitable for on-site inspection, maintenance, quality control, and laboratory testing.

KODIN3000HM vs. Conventional Thickness Measurement Methods

Feature	KODIN3000HM Ultrasonic Thickness Gauge	Conventional Contact Thickness Measurement
Measurement Method	Ultrasonic non-destructive testing	Mechanical/contact measurement
Material Damage	Non-destructive	Usually non-destructive
Thin-Wall Measurement	Suitable	Depends on instrument
Measurement Modes	Multiple ultrasonic modes	Usually single method
A-Scan	Yes	No
B-Scan	Yes	No
USB Communication	Yes	Often unavailable
Sound Velocity Setting	1000–9999 m/s	Not applicable
Portability	300 g	Depends on instrument
On-Site Inspection	Highly suitable	Suitable depending on application
Unit Selection	mm / inch	Depends on instrument

The KODIN3000HM ultrasonic thickness gauge offers greater flexibility than basic contact thickness measuring tools by combining multiple ultrasonic measurement methods with A-scan/B-scan analysis, adjustable sound velocity, and USB data communication in a compact handheld design.

Frequently Asked Questions (FAQ)
1. What is the KODIN3000HM used for?
The KODIN3000HM is used for non-destructive measurement of material thickness, particularly thin-wall metal components and products.
2. What is the maximum measurement range?
In automatic mode, the specified measurement range is 0.2–26 mm. The actual range depends on the selected measurement method and material.
3. Does the gauge support A-scan and B-scan?
Yes. The KODIN3000HM integrates A-scan, B-scan, and numerical measurement modes.
4. What is the measurement resolution?
The measurement resolution can be selected as 0.001, 0.01, or 0.1, according to the measurement requirements.
5. Can it measure through coatings?
The Echo-Echo and multiple-echo measurement modes can be used for suitable coated or thin materials. Actual performance depends on coating type, material, surface condition, and probe configuration.
6. What material sound velocity can be set?
The material sound velocity can be set within 1000–9999 m/s, allowing the gauge to be calibrated for different materials.
7. How is the KODIN3000HM powered?
The instrument uses two AA batteries, making it convenient for portable and on-site inspection.
8. Can measurement data be transferred to a computer?
Yes. The instrument provides a USB communication interface for convenient data transmission.
9. What is the operating temperature range?
The specified operating temperature range is -10°C to 60°C, with relative humidity below 90% RH.
