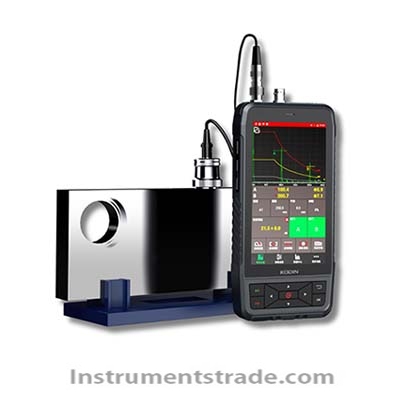

KODIN 6A-UT ultrasonic flaw detector Introduction: The KODIN 6A-UT Smart Connected Ultrasonic Flaw Detector is an intelligent flaw detection terminal developed by KODIN Instruments based on the Android system. This instrument features wireless communication capabilities, enabling remote interaction and cloud detection. The combination of touchscreen and physical buttons on the IPS high-definition color screen makes human-machine interaction more convenient. It can provide professional and tailored services, with wireless upgrades available. The casing is designed to be waterproof, dustproof, and shockproof, making it suitable for various complex industrial sites. Features: 1. Compact and portable, with a three-proof design 2. Equipped with Android system, it allows for more convenient operation 3. Gravity sensing, supporting landscape and portrait mode switching 4. Real-time networking, front and rear dual cameras, remote online monitoring and measurement 5. Expert system, remote assistance for diagnosing difficult problems 6. It can record flaw detection issues through video/voice/text in multiple dimensions and quickly generate flaw detection reports 7. Independent flaw detection channel, with ultra-large storage space Technical Specifications: Working mode: monocrystalline, bicrystalline; Probe type: straight probe, angle probe; Coordinate system: sound path (S), depth (H), horizontal distance (L); Operating frequency: 0.5-20MHz; Sound path: 10-5000mm; Translation: 0-500mm; Gain: 0-110dB, step value: 0.1dB, 1dB, 2dB or 6dB; Sound velocity: 1000-9999m/s; Waveform suppression: 0-80%; Pulse type: negative square wave pulse; Pulse width: 100-300ns, with a total of 11 selectable levels, and a pulse width interval of 20ns per level; Matching resistor: 200Ω and 500Ω are two optional settings; Emission voltage: 200V and 400V, two options available; Automatic wave height: 20-80%; Surface compensation: 0-10dB; Detection mode: positive detection, negative detection, full detection, RF; Alarm function: gate alarm, curve alarm; Curve type: angle probe: DAC curve; straight probe: AVG curve and DAC curve; Amplitude readings: amplitude percentage, relative gate equivalent, relative curve equivalent, φ value display; Vertical linearity error: ≤2.8%; Horizontal linearity error: ≤0.1%; Sensitivity margin: ≥48dB (deep 200-φ2 flat-bottom hole, 2.5P20); Resolution: ≥36dB; Dynamic range: >32dB; Electrical noise level: <10%; Probe blind zone: <6mm (straight probe 2.5P20); Working environment: Temperature: -10℃ to 40℃, Humidity: 20% to 90%RH; Power supply mode: Built-in DC: 5000mAh/7.6V lithium-ion battery; External AC: 220V/50Hz AC + adapter (10V/2A); Screen display: 6.0-inch IPS color LCD display, 720*1280 pixels; Storage: 16GB eMMC + 2GB LPDDR3, expandable to 32GB TF card; CPU: 64-bit quad-core 1.2GHz; Operating system: Android; Host dimensions: 216mm (L) * 98mm (W) * 28mm (H); Host weight: approximately 570g.
KODIN 6A-UT ultrasonic flaw detector Introduction: The KODIN 6A-UT Smart Connected Ultrasonic Flaw Detector is an intelligent flaw detection terminal developed by KODIN Instruments based on the Android system. This instrument features wireless communication capabilities, enabling remote interaction and cloud detection. The combination of touchscreen and physical buttons on the IPS high-definition color screen makes human-machine interaction more convenient. It can provide professional and tailored services, with wireless upgrades available. The casing is designed to be waterproof, dustproof, and shockproof, making it suitable for various complex industrial sites.
