KODIN 3A-MC Series Coating Thickness Gauge

Product ID：WCHdc047

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberKODIN 3A-MC

Brand NameSDRUIZHI

Payment TermsTT，PAYPAL，Alibaba.com Pay

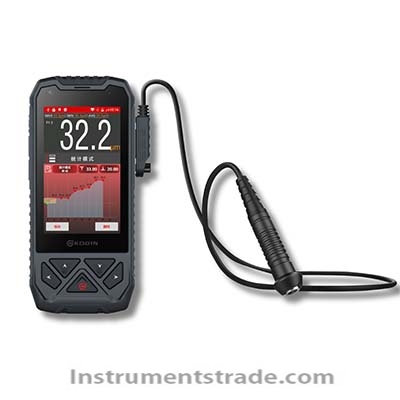

KODIN 3A-MC Series Coating Thickness Gauge
Introduction:
The KODIN 3A-MC series coating (plating) thickness gauge is an intelligent detection terminal developed by Kedi Instruments based on Internet plus technology.
A KODIN 3A-MC full-body split machine can be equipped with multiple different split probes on its main unit, allowing for the measurement of coatings on various metals depending on the type of probe.
Features:
1. The three-proofing case design, combined with a wrist strap, facilitates easy carrying
2. Equipped with Android system, intelligent coating (plating) thickness measurement terminal
3. Front and rear dual cameras, capable of recording on-site issues through various methods such as video, pictures, voice, and text
4. Equipped with the Kexin cloud platform, it enables remote online audio and video interactive communication and real-time data sharing
5. Intelligently analyze data and generate inspection reports according to customer requirements
6. Establish a team of colleagues, and collaborate to monitor the entire project through the issuance and retrieval of project forms
7. The shipyard has a wide range of applications, benefiting from its large memory capacity and fast continuous measurement speed
8. The probe adopts a magnetic connection method, which is waterproof, dustproof, and not easily damaged
9. Unique temperature compensation technology ensures more stable measurements in both high and low temperature environments
Technical Specifications:
Host parameter table

Probe type	F (Magnetic)	N (non-magnetic)
Measuring principle	magnetic induction	eddy current
temperature compensation	"Phase-locked loop" technology
measurement range	Determined by the probe
display mode	3.97-inch IPS high-definition color screen, 480*800 pixels
data interface	Wireless transmission, USB transmission
operating system	Android
calibration method	Zero point calibration, system calibration, one-point calibration
storage method	Local eMMC storage, with TF card expansion capability
data report	Charts, images, and bar graphs
display language	Built-in Chinese and English
measure speed	You can choose between single measurement and continuous measurement
button light	The backlight can be turned on and off
Power-off method	Physical button shutdown, software APP shutdown
Protective design	Dustproof, waterproof, and shockproof
Usage environment	Relative humidity: ≤90%; Temperature: -10℃~+40℃
working hours	≥7 hours (at minimum backlight brightness)
power supply	Built-in 3000mAh lithium-ion polymer battery
host size	161mm(L)73mm(W)21mm(H)
Total weight	About 253g (excluding the probe)

Probe parameter table

Probe model	F/N0.5	F1.2	N1.2	F3	F5	F10
Measurement range	0~0.5	0~1.25	0~1.25	0~3	0~5	0~10

Minimum flat diameter of the substrate	10	15	18	18	18	22
Minimum radius of curvature (concave)	5	6	20	10	10	12
Minimum radius of curvature (convex)	1.5	2	5	5	5	5
The corresponding internal corrosion probe can measure the minimum inner diameter of the pipeline	45	50	240	80	80	110
measurement accuracy (H represents the thickness value)	±（1~3）%H±1μm Or H±2μm			±（2~3）%H ±2μm		±（2~4）%H ±2μm
display precision	0~99.9μm：0.1μm； 100~999μm：1μm； 1mm~10mm：0.01mm； Greater than 10mm: 0.1mm
Probe type	F represents a magnetic probe, while N represents a non-magnetic probe
Matrix criticality thickness	N:0.5mm, F:1mm (F16: 5mm)
