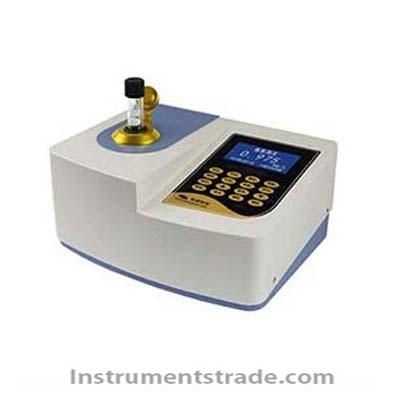

KN-NH20 Intelligent Safe Ammonia Nitrogen Analyzer
Product Overview
The KN-NH20 Intelligent Ammonia Nitrogen Analyzer is a multifunctional laboratory instrument designed for accurate measurement of ammonia nitrogen (NH3-N) in water. Ammonia nitrogen refers to nitrogen present in water in the form of free ammonia and ammonium ions.
Using the Nessler reagent spectrophotometric method, the KN-NH20 provides rapid and reliable ammonia nitrogen analysis for surface water, reclaimed water, municipal wastewater and industrial wastewater. It features a stable single-beam optical system, Chinese-language operation interface, automatic curve calibration and data storage.
The instrument is suitable for research institutes, universities, environmental laboratories and government monitoring organizations.

Key Features
• Fast and accurate ammonia nitrogen measurement
• Suitable for surface water, reclaimed water, municipal wastewater and industrial wastewater
• Stable single-beam optical system with no optical interference
• High-resolution LCD color display
• Chinese display interface and full Chinese keyboard
• Built-in 99 calibration curves, including 1 standard ammonia nitrogen curve
• 98 additional curves available for different samples and testing conditions
• Automatic curve calibration and saving
• Stores up to 1,000 historical measurement records
• Direct concentration reading
• External portable printer for convenient data printing
• Long-life cold light source with up to 100,000 hours service life
• Batch capacity of 5 samples, expandable if required

Working Principle
The KN-NH20 uses the Nessler reagent spectrophotometric method to determine ammonia nitrogen concentration.
After the water sample reacts with the Nessler reagent, a colored compound is formed. The instrument measures the absorbance of the sample using its optical system and calculates the ammonia nitrogen concentration according to the corresponding calibration curve.
The built-in standard curve allows direct testing without complicated curve setup, while additional calibration curves can be configured for different users, environments and wastewater types.

Technical Specifications

Parameter	Specification
Model	KN-NH20
Measurement Method	Nessler reagent spectrophotometric method
Measurement Range	0–60 mg/L, segmented
Measurement Time	15 min
Detection Limit	0.01 mg/L
Accuracy	≤±10%
Batch Capacity	5 samples, expandable
Light Source Life	100,000 h
Calibration	Automatic curve correction and saving
Calibration Curves	99 curves, including 1 standard curve
Cuvette	Colorimetric tube
Data Storage	1,000 records
Printer	External portable printer
Communication	RS232 serial port
Display	LCD
Power Supply	AC 220 V ±10%, 50 Hz
Power Consumption	10 W
Dimensions	254 × 190 × 124 mm
Weight	2.23 kg

Applications
The KN-NH20 is suitable for laboratory and environmental water quality testing.
• Surface water monitoring
• Reclaimed water testing
• Municipal wastewater analysis
• Industrial wastewater testing
• Environmental monitoring
• Laboratory water quality analysis
• Research and teaching laboratories
• Government environmental monitoring

KN-NH20 vs. Conventional Ammonia Nitrogen Testing

Feature	KN-NH20	Conventional Manual Testing
Measurement Method	Spectrophotometric	Manual chemical analysis
Measurement Time	15 min	Usually longer
Standard Curve	Built-in	Manual preparation may be required
Curve Calibration	Automatic	Manual
Data Storage	1,000 records	Limited
Data Printing	Supported	Usually manual
Operation	Direct concentration reading	More manual steps
Batch Testing	5 samples	Depends on workflow

FAQ
What does the KN-NH20 measure?
It measures ammonia nitrogen (NH3-N) concentration in water.
What is the measurement range?
The measurement range is 0–60 mg/L, with segmented measurement.
What method does the analyzer use?
It uses the Nessler reagent spectrophotometric method.
How long does one test take?
A single sample measurement takes approximately 15 minutes.
What is the detection limit?
The detection limit is 0.01 mg/L.
How many calibration curves are available?
The instrument has 99 built-in curves, including one standard ammonia nitrogen curve and 98 expandable curves.
Can test results be stored?
Yes. The instrument can store up to 1,000 measurement records, including date, time, parameter and result.
What water samples can be tested?
It is suitable for surface water, reclaimed water, municipal wastewater and industrial wastewater.
