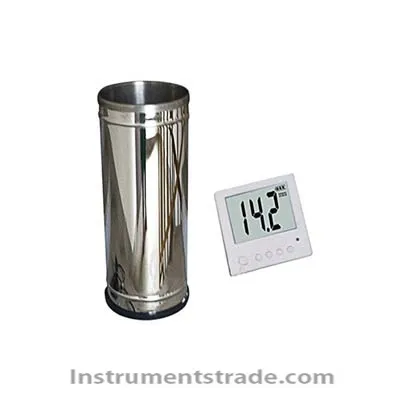

Description: This instrument is a precipitation measuring instrument, and its performance conforms to the national standard GB/ t11832-2002 "tipping bucket rain gauge" and the national standard GB/ t11831-2002 "hydrological measuring and reporting device telemetry rain gauge" related requirements. The core component of this instrument is the tipper, which adopts the three-dimensional streamline design, so that the tipper can turn over water more smoothly, and has the function of self-cleaning dust and easy cleaning. Technical parameters: . Rain diameter: 20000.60mm;Acute Angle edge: 40 ° to 45 ° .Resolution: 0.2mm;0.5 mm;optional . Measurement accuracy: less than or equal to 3% . Rain intensity range: 0.01mm ~ 4mm/min (maximum rain intensity of 8mm/min is allowed) . Signal mode: on and off signal output of double contact .Storage capacity: 100,000 Power supply: 220V, dry battery dual power automatic switching. . The work environment: the environment temperature: 0 ~ 50 ℃; .Relative humidity: 95% (40 ℃) . Communication mode: USB/RS232/RS485 . Size and weight: 2.5kg Performance: . Rainfall recorder can detect, store, display and alarm rainfall. The alarm adopts the dual circuit of product external (the product accessories are equipped with ac/dc converter) and internal dry battery, which can automatically switch the power supply. .The product adopts wall-mounted installation design, convenient installation, equipped with LCD display, can display real-time clock, this hour rainfall, rainfall today, etc. . Simple installation, convenient maintenance, high measurement accuracy, good stability, reliable work, long transmission distance, strong anti-interference ability, excellent manufacturing technology of bucket parts support system, small friction resistance moment. It is made of non - embroidered steel, high finish, strong anti - rust ability, good quality, small error caused by stagnant water. . Rainfall recorder small size, simple operation, follow-up record rainfall data, the recording time is long, large storage capacity, the instrument may be off work independently, powerful software, data view is convenient, can at any time will be recorded in export data to a computer, and can be stored as excel form file, generate the data curve, for other further analysis software for data processing. Connect to a computer to print and store data. Scope of application: Can be used in meteorological stations (stations), hydrological stations, agricultural and forestry, field observation and reporting stations and other fields as well as mountain flood disaster warning, reservoirs, dam security check, ports, meteorological observation stations and other places.
Description: This instrument is a precipitation measuring instrument, and its performance conforms to the national standard GB/ t11832-2002 "tipping bucket rain gauge" and the national standard GB/ t11831-2002 "hydrological measuring and reporting device telemetry rain gauge" related requirements. The core component of this instrument is the tipper, which adopts the three-dimensional streamline design, so that the tipper can turn over water more smoothly, and has the function of self-cleaning dust and easy cleaning.
