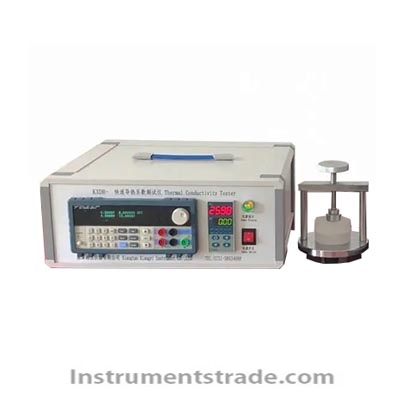

KDRX-II Transient Fast Hot Wire Thermal Conductivity Tester for soil, soft rock

Product ID:WLrd031

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberKDRX-II
    Brand NameXIANGTANXIANGYI
    Payment TermsTT,PAYPAL
    KDRX-II Transient Fast Hot Wire Thermal Conductivity Tester

    Introduction:
         The hot wire thermal conductivity meter (transient method) is measured using the wire source test method of a thermal probe with a very large aspect ratio to achieve the simulated conditions of an infinitely long, infinitely thin heat source. Easy to use, plug-and-play probe sensor fast interface and simple software interface operation, allowing users to quickly master and operate accurately. It usually only takes 1 to 2 minutes from starting the test preparation to getting the results. It has the advantages of wide application range, fast measurement speed and accurate measurement results.
         The instrument conforms to: Standard ASTM D5334-2008 "Standard Test Method for Determination of Thermal Conductivity of Soil and Soft Stone by Hot Needle Probe"; GB/T 10297-2015 "Hot Wire Method for Determination of Thermal Conductivity of Non-metallic Solid Materials"; GB/T 11205-2009 " Hot Wire Method for Determination of Thermal Thermal Conductivity of Rubber"; ASTM C1113-2009 "Test Method for Determination of Thermal Conductivity of Refractory Products by Hot Wire"; ASTM D5930-2009 "Standard Test Method for Measuring Thermal Conductivity of Plastics by Instantaneous Linear Source Technique".
    Technical parameter:
    Thermal conductivity measurement range: 0.000125 W/mK; resolution: 0.00001w/mk
    Measurement relative error: ≤3%
    Repeatability error: ≤3%
    Temperature resolution: 0.01°C.
    Measurement time: adjustable from 2 to 180 seconds.
    Sample test temperature range: -40 ~ 130 ; standard configuration: room temperature.
    Various high and low temperature control boxes (-40130) or test state under vacuum state can be selected according to customer requirements.
    Measurement objects: plastic, soil, soft rock, liquid; thermal conductivity measurement of paste, granule, powder and other materials.
    Sample shape: block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shapes are all acceptable, no restrictions on the shape), only a relatively flat sample surface is required.
    Sample size: cylindrical sample, diameter ≥30 mm or 30*30mm square sample or surrounding irregular sample, thickness ≥1mm
    External power supply: AC 220V±10%; 50/60 Hz
    Machine power: 200w
    Instrument size: length 380x width 400x height 165 (mm), weight: 5kg
  • Introduction:
         The hot wire thermal conductivity meter (transient method) is measured using the wire source test method of a thermal probe with a very large aspect ratio to achieve the simulated conditions of an infinitely long, infinitely thin heat source. Easy to use, plug-and-play probe sensor fast interface and simple software interface operation, allowing users to quickly master and operate accurately. It usually only takes 1 to 2 minutes from starting the test preparation to getting the results. It has the advantages of wide application range, fast measurement speed and accurate measurement results.
         The instrument conforms to: Standard ASTM D5334-2008 "Standard Test Method for Determination of Thermal Conductivity of Soil and Soft Stone by Hot Needle Probe"; GB/T 10297-2015 "Hot Wire Method for Determination of Thermal Conductivity of Non-metallic Solid Materials"; GB/T 11205-2009 " Hot Wire Method for Determination of Thermal Thermal Conductivity of Rubber"; ASTM C1113-2009 "Test Method for Determination of Thermal Conductivity of Refractory Products by Hot Wire"; ASTM D5930-2009 "Standard Test Method for Measuring Thermal Conductivity of Plastics by Instantaneous Linear Source Technique".
