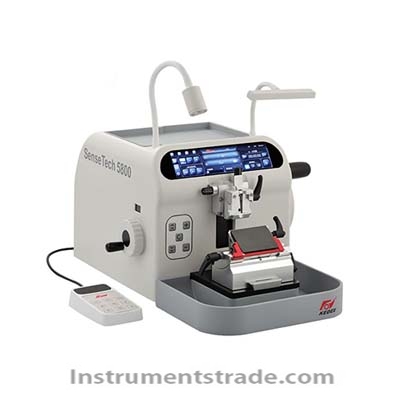

KD-ST5800 tissue slicer

Product ID：SYZYXJqp049

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberKD-ST5800

Brand NameJHKEDI

Payment TermsTT，PAYPAL，Alibaba.com Pay

KD-ST5800 tissue slicer
characteristic:
1.High definition capacitive touch screen: designed with a high-level structure at the top, providing clear visibility, interference free operation, waste avoidance, and easy cleaning
2.Dual control operation: It can meet multiple requirements for physical operation button control and touch screen control, and supports multiple language settings
3.Slice counting: The number of slices and slice thickness values can be separately counted and displayed clearly
4.Slice timing: Equipped with a timer with seconds as the minimum unit, it can meet the needs of slice timing or other operation time recording
5.Sample head memory position: Multiple sample head memory point positions can be freely set, and different positions can be easily and quickly moved
6.One click positioning of sample head: When changing the wax block, there is no need to retract the sample head. One click positioning of the sample can return it to the memory point position
7.One click return of sample head: No matter where the sample head is in the travel, it can be returned to the zero safe position with one click
8.Slicing process display: Clearly display the position of the sample head, and the remaining progress of the process is accompanied by a percentage number for clear and intuitive display
9.Power on sample head reset: After power on, the sample head automatically resets to the innermost safe position
10.Environmental temperature display: The interface displays the real-time environmental temperature of the machine's current operation, providing users with sliced environmental element information
11.Data Interface: Supports product system upgrades and data transmission
12.Lubrication free maintenance: Adopting a stable and durable maintenance free grease guide rail structure design, no need to add lubricating oil
13.Multiple sample clamps: wax block clamp, embedding box clamp, extra large clamp, and other clamp configurations are available, equipped with a quick conversion seat
14.Adjustment of specimen clamp angle: Adjust the angle vertically and horizontally by+8 ° and provide angle scale indication for easy observation
15.Segmented positioning of the knife holder: Three section rapid positioning to maximize the utilization of the slicing blade edge
Technical parameters:

Slice th ickness ra nge: 0.25~100 μ m 0. 25~2.5 μ m incre ments 0.25 μ m 2 .5~5 μ m incre ments 0.5 μ m 5 .0~10 μ m increments 1 μ m 10~30 μ m increments 2 μ m 30~60 μ m increments 5 μ m 60~100 μ m increments 10 μ m increments	Repairt hicknes s range: 1~60 0 μ m~10 μ m i ncrements 1 μ m ~20 μ m incremen ts 2 μ m~50 μ m increments 5 μ m 50~150 μ m increments 10 μ m 150~600 μ m increments 50 μ m increments
Retract ion adj ustment range: 0~100 μ m0-5-15-15--100 adjustable, 0 is closed	The in terval sp an of the fault is 10-6000 μ m, 10-12-15-20-250-5000-6000 μ m
Horizontal feed: 30mm	Vertical movement: 70mm
Left andright movement range of knife holder: 0~30mm	Range offorward and backward movement of knife holder: 0-65mm
Speci men positioning: Horizontal 8 °, vertical 8 °, specimen clamp 360 ° rotation	Slice adjustment minimum scale value 0.25 μ m
Maximum specimen slice area: 80x65mm	Head feed rate: 2000um/s
Small handwheel feed rate: 100~1000um/turn adjustable	Samplehead memory points: 2 positions can be freely set
Slice trimming counting range: frequency 0~99999999, distance 0~99999999 μ m	Slicetiming: 0 seconds~11:59:59 seconds
Lighting brightness: adjustable in 5 levels	Atomization function: universal nozzle, water tank capacity of about 500ml
Sliceaccuracy: ± 1%	Powersupply voltage: AC 110V~120V/AC 220V~240V
Frequency: 50Hz/60Hz	Maximum power 100W
Overall dimensions: 478x410x310mm	Net weight of the whole machine is 40kg

characteristic:
1.High definition capacitive touch screen: designed with a high-level structure at the top, providing clear visibility, interference free operation, waste avoidance, and easy cleaning
2.Dual control operation: It can meet multiple requirements for physical operation button control and touch screen control, and supports multiple language settings
3.Slice counting: The number of slices and slice thickness values can be separately counted and displayed clearly
4.Slice timing: Equipped with a timer with seconds as the minimum unit, it can meet the needs of slice timing or other operation time recording
5.Sample head memory position: Multiple sample head memory point positions can be freely set, and different positions can be easily and quickly moved
6.One click positioning of sample head: When changing the wax block, there is no need to retract the sample head. One click positioning of the sample can return it to the memory point position
7.One click return of sample head: No matter where the sample head is in the travel, it can be returned to the zero safe position with one click
8.Slicing process display: Clearly display the position of the sample head, and the remaining progress of the process is accompanied by a percentage number for clear and intuitive display
9.Power on sample head reset: After power on, the sample head automatically resets to the innermost safe position
10.Environmental temperature display: The interface displays the real-time environmental temperature of the machine's current operation, providing users with sliced environmental element information
11.Data Interface: Supports product system upgrades and data transmission
12.Lubrication free maintenance: Adopting a stable and durable maintenance free grease guide rail structure design, no need to add lubricating oil
13.Multiple sample clamps: wax block clamp, embedding box clamp, extra large clamp, and other clamp configurations are available, equipped with a quick conversion seat
14.Adjustment of specimen clamp angle: Adjust the angle vertically and horizontally by+8 ° and provide angle scale indication for easy observation
15.Segmented positioning of the knife holder: Three section rapid positioning to maximize the utilization of the slicing blade edge
