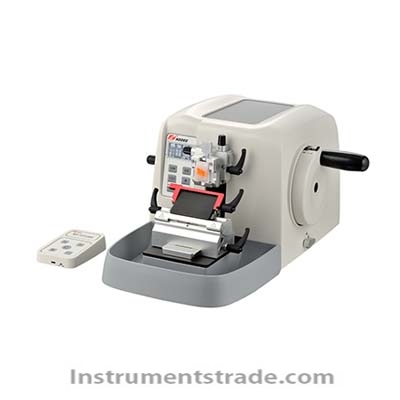

KD-ST5500 Tissue Microtome Introduction: The KD ST5500 tissue microtome is an intelligent sensing semi-automatic paraffin tissue microtome launched by our company. It features high precision, multi-mode operation, one-hand operation, and safety protection, and is suitable for routine and batch slicing in pathology departments and research laboratories. Features: 1. This machine adopts a user-friendly design with a compact structure, making it convenient and quick to switch between slicing and trimming. One can complete the conversion between slicing and trimming by simply shaking the handwheel with one hand (sensing mode: half a rotation for trimming mode, which allows for quick trimming; full rotation for slicing mode, which allows for flexible and precise slicing) 2. The transmission feed system is controlled by an intelligent program, featuring conventional slicing mode, intelligent sensing slicing mode, and full-layer slicing mode 3. Full-layer slicing mode: It can prompt to take slices at different set tomographic levels, with slice analysis functioning like a tomographic scan 4. Imported drive system, featuring intelligent sensing and chip trimming, slicing capabilities, rapid fast forward and rewind, conversion functions, automatic sample retraction, and precision trimming slicing 5. The small handwheel allows for online speed level setting and online adjustment of the sample feeding direction, making it suitable for different users' operating habits 6. It features two positioning memory functions, allowing users to locate the sample during sample preparation. After positioning, each time a sample is loaded, simply press the memory button to return to the sample positioning point. Memory 1 and Memory 2 can simultaneously store both film trimming positioning samples and section positioning samples. This multifunction button can also be used for fast forward and rewind operation modes 7. Using OLED module as the display screen, the handwriting is clear, no backlight is needed, and the display screen data can be clearly observed from 360 degrees without any blind spots. It can switch between Chinese and English languages online, and can be equipped with a wireless hand controller for control 8. The encoded small handwheel control system allows users to perform electromechanical simulation control by adjusting the rotation speed up or down. It also features a voice-activated safety alarm system and drive overload protection; the instrument is equipped with an automatic sleep protection system 9. A specially designed positioning head system with scale markings for sample 0-degree positioning. X/Y-axis adjustment is quick and precise; equipped with interchangeable sample holders (wax block holder, embedding cassette holder as options) 10. The knife holder can be adjusted laterally, eliminating the need to manually move the blade. The entire length of the blade can be utilized (with three positioning points to maximize the utilization of the slicing blade edge). The base of the knife holder is equipped with scale markings, facilitating precise positioning of the knife holder and providing an intuitive distance for the sample to the blade 11. Humanized handle slots are designed at the front and rear bottom of the instrument, facilitating easy installation, transportation, or movement for users Technical Specifications: Slice thickness range: 0.25-100μm Thickness range of the film: 1-600μm Retraction adjustment range: 0-100μm Fault spacing span: 10-6000μm Feed rate of small handwheel: 1-1000μm Slice/trimming count: 0-9999 Horizontal feed: 30mm Vertical movement: 70mm The left-right movement range of the tool post is 26mm Sample head positioning: horizontal 8°; vertical 8° Sample holder: 360° rotatable (optional) Minimum scale value for slice adjustment: 0.25μm Maximum paraffin section area: 70×70mm Feed rate: 2000um/s Slicing accuracy: ±1% Power supply voltage: AC110V/ AC 220V Frequency: 50Hz/60Hz Power: 100VA Overall dimensions: 595x 465x 295mm Net weight of the whole machine: 28kg
KD-ST5500 Tissue Microtome Introduction: The KD ST5500 tissue microtome is an intelligent sensing semi-automatic paraffin tissue microtome launched by our company. It features high precision, multi-mode operation, one-hand operation, and safety protection, and is suitable for routine and batch slicing in pathology departments and research laboratories.
