KD-3368AM Fully Automatic Computerized Rotary Microtome for Paraffin Sectioning

Position: Home > > Lab general equipment > Sample preparation and digestion > Slicing machine > KD-3368AM Fully Automatic Computerized Rotary Microtome

KD-3368AM Fully Automatic Computerized Rotary Microtome

Product ID：SYZYXJqp046

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberKD-3368AM

Brand NameJHKEDI

Payment TermsTT，PAYPAL，Alibaba.com Pay

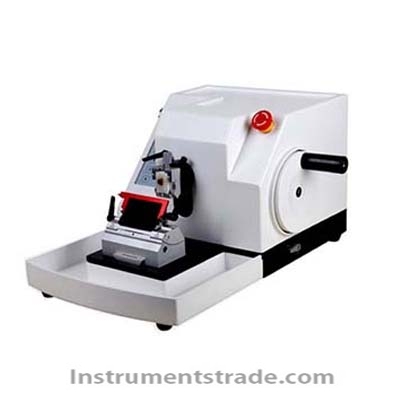

KD-3368AM Fully Automatic Computerized Rotary Microtome
Product Introduction
The KD-3368AM Fully Automatic Computerized Rotary Microtome is a high-precision laboratory instrument designed for automatic paraffin sectioning of biological tissue samples in pathology, histology, medical research, and clinical laboratories. It adopts an imported cross roller guide rail and precision screw drive system to ensure stable movement, accurate positioning, and excellent sectioning quality.
With intelligent program control, automatic and manual sectioning modes, adjustable cutting speed, OLED digital display, and multiple safety protection functions, the KD-3368AM provides reliable and efficient solutions for routine tissue sample preparation and microscopic analysis.

Performance Features
• High-precision mechanical structure
Adopts imported cross roller guide rails and precision screw transmission system to achieve smooth operation, high positioning accuracy, and consistent section quality.
• Advanced automatic drive system
Provides multiple operating modes including trimming, sectioning, rapid forward movement, and rapid backward movement for improved workflow efficiency.
• Intelligent control system
Supports quick switching between manual and automatic sectioning modes. Automatic cutting speed can be continuously adjusted according to different sample requirements.
• OLED digital display module
Real-time display of section thickness, trimming thickness, and section counting information. The display design provides clear visibility from multiple viewing angles.
• Flexible automatic sectioning modes
Offers both step-by-step (jog) sectioning and continuous automatic sectioning modes to meet different laboratory applications.
• Safe handwheel locking system
The handwheel can be locked at any position, improving operational safety and allowing precise sample positioning.
• Comprehensive safety protection
Equipped with emergency braking, alarm system, drive overload protection, and automatic sleep protection functions.
• Quick-change specimen holder system
Supports convenient replacement of specimen clamps. Paraffin block clamps and precision horizontal embedding cassette clamps are available as options.
• Optimized blade utilization design
The blade holder can move horizontally, allowing different blade areas to be used efficiently and extending blade service life.
• Safe blade protection structure
The red blade guard covers the cutting edge to improve operator safety. The push-type blade replacement design makes blade changing fast and convenient.
• Convenient waste management
The removable large-capacity magnetic waste tray allows easy cleaning and maintenance. The top cover provides storage space for disposable blades and accessories.

Working Principle
The KD-3368AM computerized rotary microtome uses a precision rotary drive mechanism to convert the rotational movement of the handwheel or motor drive into controlled linear movement of the specimen holder.
During operation, the embedded tissue sample moves precisely toward the microtome blade according to the programmed section thickness. The high-precision guide rail and screw drive system ensure stable sample advancement, producing uniform paraffin sections suitable for microscopic examination.
The automatic control system regulates sectioning speed, movement distance, and operation modes, allowing operators to achieve consistent section quality with reduced manual effort.

Technical Parameters

Parameter	Specification
Section thickness range	0–100 μm
Section thickness adjustment	0–2 μm (0.5 μm increment)
	2–10 μm (1 μm increment)
	10–20 μm (2 μm increment)
	20–100 μm (5 μm increment)
Trimming thickness range	0–600 μm
Trimming adjustment	0–10 μm (1 μm increment)
	10–20 μm (2 μm increment)
	20–100 μm (10 μm increment)
	100–600 μm (50 μm increment)
Horizontal specimen movement	28 mm
Vertical specimen movement	52 mm
Maximum knife holder base movement	60 mm
Maximum knife holder lateral movement	23 mm
Specimen retraction	20 μm
Automatic specimen return	Available
Specimen orientation adjustment	Horizontal 8°, vertical 8°, 360° rotation
Minimum section adjustment value	0.5 μm
Maximum specimen size	50 × 70 mm
Sectioning accuracy	±5%
Power supply	AC110V–120V / AC220V–240V
Power consumption	150 VA
Dimensions	600 × 495 × 310 mm
Weight	32 kg

Application Scenarios
The KD-3368AM automatic rotary microtome is widely used in:
• Clinical pathology laboratories for routine tissue diagnosis
• Histology laboratories for paraffin embedded tissue preparation
• Medical universities and research institutions
• Biomedical research centers
• Animal pathology laboratories
• Pharmaceutical research laboratories
• Biological sample preparation facilities
Typical applications include sectioning:
• Human tissue samples
• Animal tissue samples
• Paraffin embedded specimens
• Research biopsy samples
• Histological examination samples

KD-3368AM vs Traditional Manual Microtome

Feature	KD-3368AM Automatic Microtome	Traditional Manual Microtome
Operation mode	Automatic and manual control	Manual operation only
Cutting speed	Adjustable automatic speed	Operator dependent
Section consistency	High consistency	Depends on operator skill
Digital display	OLED thickness and counting display	Usually unavailable
Safety protection	Emergency braking, overload protection, alarms	Limited protection
Workflow efficiency	High efficiency for continuous sectioning	Lower efficiency
Precision control	Computerized precision drive	Manual adjustment

Frequently Asked Questions (FAQ)
1. What is the KD-3368AM microtome mainly used for?
The KD-3368AM is mainly used for preparing thin paraffin tissue sections for microscopic examination in pathology, histology, and biomedical research laboratories.
2. Can the KD-3368AM perform both automatic and manual sectioning?
Yes. The instrument supports quick switching between automatic and manual sectioning modes to meet different laboratory requirements.
3. What is the maximum specimen size supported?
The maximum specimen size is 50 × 70 mm, suitable for most routine paraffin embedded tissue samples.
4. What thickness range can the microtome achieve?
The section thickness range is 0–100 μm, with a minimum adjustment increment of 0.5 μm, enabling precise preparation of thin tissue sections.
5. Does the instrument have safety protection functions?
Yes. It includes emergency braking, safety alarms, drive overload protection, and automatic sleep protection to improve operational safety.
6. Is the KD-3368AM suitable for clinical pathology laboratories?
Yes. Its automatic control system, high precision movement mechanism, and stable sectioning performance make it suitable for clinical pathology and histology applications.
7. What are the advantages of choosing an automatic computerized microtome?
Compared with manual microtomes, computerized automatic microtomes provide more consistent section thickness, improved efficiency, reduced operator workload, and better repeatability.

Product Summary
The KD-3368AM Fully Automatic Computerized Rotary Microtome combines precision mechanical design, intelligent electronic control, and advanced safety features to deliver reliable paraffin sectioning performance. It is an ideal choice for pathology laboratories, medical research institutions, and professional histology applications requiring accurate and efficient tissue preparation.
