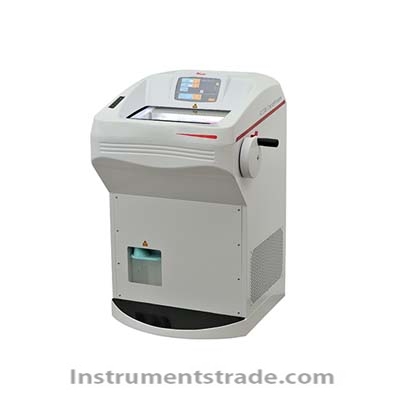

KD-2950 Low-Temperature Cryostat Microtome

Position: Home > > Lab general equipment > Sample preparation and digestion > Slicing machine > KD-2950 Low-Temperature Cryostat Microtome

KD-2950 Low-Temperature Cryostat Microtome

Product ID：SYZY/XJqp010

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberKD - 2950

Brand NameJHKEDI

Payment TermsTT，PAYPAL，Alibaba.com Pay

KD-2950 Low-Temperature Cryostat Microtome
Product Introduction
The KD-2950 Low-Temperature Cryostat Microtome is a refrigerated microtome designed for preparing frozen tissue sections in histology, pathology, medical research, and biological laboratories. It combines rapid cooling, adjustable specimen retraction, convenient trimming and sectioning controls, UV disinfection, and an intelligent operating interface to provide stable and efficient frozen-section preparation.
The KD-2950 provides a freezing chamber temperature range of -10°C to -30°C. The freezing stage can reach -45°C, and below -55°C when the additional semiconductor cooling function is activated. The freezing stage can reach -30°C within approximately 60 minutes, helping laboratories quickly achieve the required sectioning temperature.

Performance Features
• Specimen Retraction Function: Adjustable specimen retraction helps prevent the sample from being scratched during return movement and improves section integrity.
• Quick Trimming Function: A dedicated quick-trimming button allows operators to conveniently switch between trimming and sectioning modes during operation.
• Section Counter: Displays the total number of sections and cumulative section thickness for convenient process monitoring.
• Rapid Cooling: The freezing stage can reach -30°C within approximately 60 minutes after startup.
• UV Disinfection: Uses ultraviolet disinfection with a standard 35-minute disinfection cycle.
• Switchable Semiconductor Cooling: The semiconductor cooling function can be switched on or off according to application requirements.
• Flexible Defrosting: Provides both timed automatic defrosting and manual defrosting modes.
• External Refrigeration Unit: The refrigeration unit is located outside the freezing chamber, reducing the effects of thermal expansion and contraction and minimizing maintenance requirements.
• Intelligent User Interface: An intelligent operating interface simplifies instrument operation and reduces the learning curve.
• Keyboard Lock Function: Prevents accidental or incorrect operation during sectioning.

Working Principle
The KD-2950 uses a refrigeration system to maintain the specimen and freezing chamber at low temperatures, allowing biological tissue samples to be sufficiently frozen for sectioning. After the specimen reaches the appropriate temperature, the microtome mechanism drives the specimen through controlled vertical movement while the blade performs precise cutting.
The specimen retraction function automatically retracts the specimen by a preset distance during the return stroke, reducing contact between the specimen and blade and helping protect the frozen tissue section. The adjustable semiconductor cooling system can further reduce the freezing stage temperature for samples requiring lower sectioning temperatures.

Technical Parameters

Parameter	Specification
Freezing Chamber Temperature Range	-10°C to -30°C
Specimen Head Temperature Range	-10°C to -30°C
Time for Freezing Stage to Reach -30°C	≤60 min
Minimum Freezing Stage Temperature	-45°C
Temperature with Additional Semiconductor Cooling	Below -55°C
Specimen Vertical Stroke	60 mm
Specimen Horizontal Stroke	20 mm
Motorized Coarse Advance Speed	0.7 mm/s, 0.35 mm/s
Specimen Retraction	0-80 μm adjustable
Retraction Increment	5 μm
Power Supply	AC 220V ±10%, 50Hz; AC 110V ±10%, 50Hz
Total Power	850 W
Net Weight	130 kg
Dimensions	660 × 640 × 1130 mm

Application Scenarios
The KD-2950 Low-Temperature Cryostat Microtome is suitable for applications requiring high-quality frozen tissue sections, including:
• Clinical pathology and histopathology
• Medical and biomedical research
• Hospital pathology laboratories
• Biological research laboratories
• Animal tissue research
• Pharmaceutical and drug development research
• Immunohistochemistry and immunofluorescence sample preparation
• Frozen-section preparation and intraoperative pathology

KD-2950 vs. Conventional Cryostat Microtomes

Feature	KD-2950 Low-Temperature Cryostat Microtome	Conventional Cryostat Microtome
Rapid Cooling	Reaches -30°C within about 60 min	Depends on refrigeration configuration
Lowest Freezing Stage Temperature	-45°C; below -55°C with semiconductor cooling	Typically limited by standard refrigeration
Specimen Retraction	0-80 μm adjustable	May be unavailable or less flexible
Section Counting	Total section number and cumulative thickness	Depending on configuration
Defrosting	Timed and manual modes	Configuration dependent
Disinfection	35-minute UV disinfection	Configuration dependent
Refrigeration Unit	External to freezing chamber	Varies by design
Operation	Intelligent interface and keyboard lock	Varies by model

Frequently Asked Questions
What is a cryostat microtome used for?
A cryostat microtome is used to cut frozen biological tissue into thin sections for microscopic examination. It is widely used in pathology, histology, biomedical research, and other laboratory applications.
How quickly can the KD-2950 reach the required temperature?
The freezing stage can reach -30°C within approximately 60 minutes after startup.
What is the lowest temperature of the KD-2950?
The freezing stage can reach approximately -45°C under standard cooling conditions. With the additional semiconductor cooling function activated, the temperature can reach below -55°C.
Does the KD-2950 have specimen retraction?
Yes. The specimen retraction value is adjustable from 0 to 80 μm, with a 5 μm increment, helping reduce sample damage during the return stroke.
Does the instrument support automatic defrosting?
Yes. The KD-2950 provides both timed defrosting and manual defrosting modes.
How does the KD-2950 improve frozen-section integrity?
The specimen retraction function reduces contact between the specimen and blade during the return movement, helping prevent scratching and improving the integrity of frozen tissue sections.
Is the refrigeration unit inside the freezing chamber?
No. The refrigeration unit is positioned outside the freezing chamber, which helps reduce the influence of thermal expansion and contraction on the refrigeration system and can simplify maintenance.
What is the power consumption of the KD-2950?
The total power of the instrument is 850 W.
