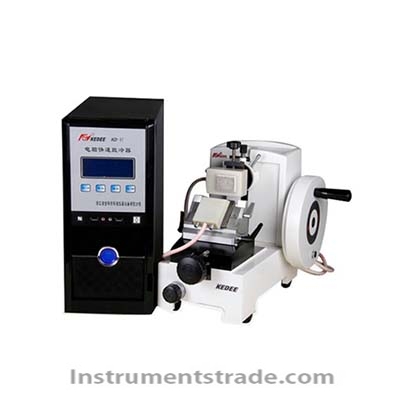

KD-2508 Rotary Microtome Sectioning Machine

Position: Home > > Lab general equipment > Sample preparation and digestion > Slicing machine > KD-2508 Rotary Microtome Sectioning Machine

KD-2508 Rotary Microtome Sectioning Machine

Product ID：SYZYXJqp045

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberKD-2508-VI

Brand NameJINHUAKEDI

Payment TermsTT，PAYPAL，Alibaba.com Pay

KD-2508 Rotary Microtome Sectioning Machine
Product Overview
The KD-2508 rotary microtome is a high-precision tissue sectioning machine designed for histology, pathology, and biomedical laboratory applications. Built with advanced precision roller linear guide technology, it delivers smooth, stable, and wear-free cutting performance for continuous and uniform tissue sections.
This rotary microtome machine is suitable for both routine biological tissues and hard specimens such as bone, plant fibers, polymers, and hair. It ensures high accuracy, flexible operation, and reliable sectioning quality for laboratory diagnostics and research.

Key Features
• Advanced precision roller linear guide system for stable, low-resistance cutting
• High-accuracy rotary microtome sectioning mechanism with smooth operation
• Adjustable sample orientation with 360° rotation and ±8° tilt adjustment
• Compatible with disposable blades and steel knives (interchangeable knife holders)
• Automatic feed system with forward/backward knife movement
• Safe operation with handwheel balance locking at highest position
• Enclosed sealed housing for easy cleaning and maintenance
• Suitable for soft, hard, and polymer tissues including bone and plant materials
• Vibration-free design ensures consistent tissue section quality
• Dual-use knife holder for flexible laboratory applications

Working Principle
The KD-2508 rotary microtome works by advancing a fixed specimen toward a precision cutting blade using a controlled mechanical feed system. The rotary handwheel drives the specimen stage in a stable vertical motion while the blade slices the tissue at a preset thickness. The linear guide system ensures minimal friction and vibration, producing smooth, uniform, and repeatable tissue sections suitable for microscopic analysis.

Technical Specifications

Parameter	Specification
Section Thickness Range	1–35 μm continuous; >35 μm adjustable
Optional Range	1–60 μm continuous; >60 μm adjustable
Trimming Thickness Range	0–500 μm
Minimum Increment	1 μm
Sectioning Accuracy	±5%
Sample Orientation	Horizontal ±8°, Vertical ±8°, 360° rotation
Max Sample Size	50 × 60 mm
Knife Holder Movement (Base)	60 mm
Knife Lateral Movement	23 mm
Sample Horizontal Travel	28 mm
Sample Vertical Travel	60 mm
Knife Compatibility	Disposable blade / steel knife (optional holders)
Operation Mode	Manual rotary feed system
Structure	Precision linear guide rail system
Machine Size	420 × 330 × 330 mm
Machine Weight	19 kg

Application Areas
The KD-2508 rotary microtome machine is widely used in:
• Histology and pathology laboratories
• Hospital diagnostic centers
• Biomedical and life science research
• University teaching laboratories
• Botanical and plant tissue studies
• Material science (polymers, fibers, composites)
• Veterinary and medical research institutions

Comparison Table

Feature	KD-2508 Rotary Microtome	Conventional Microtome
Guide System	Precision roller linear guide	Standard sliding mechanism
Cutting Stability	High stability, low vibration	Moderate stability
Section Precision	±5% high accuracy	Lower repeatability
Sample Flexibility	Soft, hard, polymer tissues	Limited material range
Operation Smoothness	Smooth rotary feed system	Less stable manual feed
Maintenance	Easy-clean enclosed design	More frequent maintenance

FAQ
Q1: What is the KD-2508 rotary microtome used for?
A: It is used for precise tissue sectioning in histology, pathology, and biomedical research.
Q2: What materials can it cut?
A: It can cut biological tissues, bone, plant fibers, polymers, and other hard or soft materials.
Q3: What is the section thickness range?
A: It supports 1–35 μm continuous cutting and up to 60 μm adjustable range.
Q4: Does it support disposable blades?
A: Yes, it supports both disposable blades and steel knives with interchangeable holders.
Q5: Is it suitable for laboratory research?
A: Yes, it is widely used in hospitals, universities, and research institutions.

Summary
The KD-2508 rotary microtome sectioning machine is a high-precision laboratory instrument designed for stable, uniform, and efficient tissue sectioning. With its advanced linear guide system, adjustable cutting range, and flexible sample handling, it is an essential tool for histology, pathology, and biomedical research applications.
