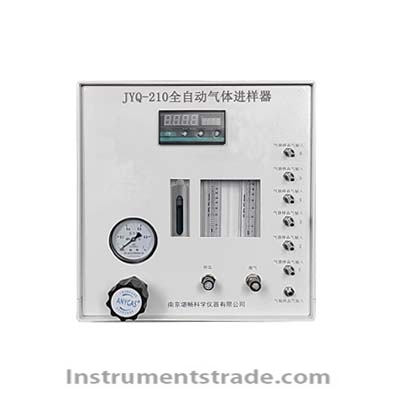

JYQ-210 fully automatic gas sampler

Product ID：FSjy040

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJYQ-210

Brand NameNJKANCHANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

JYQ-210 fully automatic gas sampler
Introduction:
The JYQ-210 fully automatic gas sampler is a newly developed multi-channel gas bag and steel cylinder gas sampler by Nanjing Kanchang. The sampler is controlled by an upper computer and can be used in conjunction with UV fluorescence sulfur analyzer, chemiluminescence nitrogen analyzer, microcoulomb sulfur chlorine analyzer, and chromatograph to achieve fully automatic gas analysis.
The JYQ-210 fully automatic gassampler is suitable for C1 to C4 alkanes, C2 to C4 alkenes, natural gas, liquefied gas, and various petrochemical gases.
The JYQ-210 fully automatic gas injector consists of an injection pump, a multi-channel switching valve, a carrier gas flow controller, a high-pressure liquefied gas pressure reducing valve, a liquefied gas vaporization chamber, a liquefied gas flow controller, and a microcontroller. The injector has a compact structure and reliable performance. The injector, valve head, joint, and gas path are made of high-quality materials and passivated, which have excellent chemical properties and increase the applicability of the injector.
The JYQ-210 fully automatic gas sampler can connect up to 6 gas bags, each of which is connected to an injection pump through a switching valve. The gas sample in the gas bag is extracted through the injection pump and injected into the carrier gas flow according to the set injection volume and speed, and then enters the measuring instrument. The sampler can also be connected to a high-pressure gas cylinder. The high-pressure gas is depressurized by a pressure reducing valve and enters a temperature controlled vaporization chamber. It is connected to the injection pump through a switching valve to achieve fully automatic injection of high-pressure liquefied gas. The injection process of the injection pump is visible.
Technical parameters:

name	parameter	notes
Number of airbags	6of them
Number of steel cylinders	1piece
Injection volume	0-20mL	Can be set
Injection speed	0.004-2mL/s	Can be set
Analysis frequency	Any setting	Each gas sample can be individually set
Gas path pressure	0-0.5Mpa
Injection volume accuracy	Error ≤ 1%
Injection volume accuracy	Repetitive error ≤ 0.5%
communication interface	RS232
Airbag connector	Pagodastyle 6mm interface	Can be changed according to customer requirements
Steel cylinder connector	Diameter 3mm
