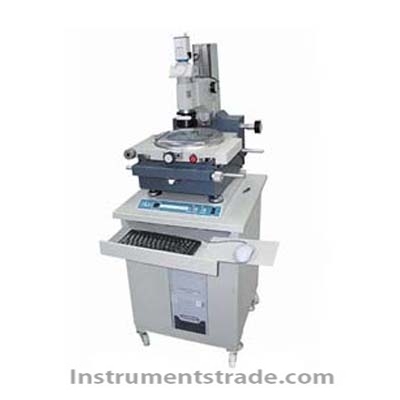

JX14C Image Processing Large Toolmakers Microscope

Position: Home > > Optical instruments and equipment > Industrial microscope > Tool microscope > JX14C Image Processing Large Toolmakers Microscope

JX14C Image Processing Large Toolmakers Microscope

Product ID：GGXgj010

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJX14C

Brand NameXINTIANGUANG

Payment TermsTT，PAYPAL，Alibaba.com Pay

JX14C Image Processing Large Toolmakers Microscope

Product Introduction
The JX14C Image Processing Large Toolmakers Microscope is a high-precision optical measuring instrument designed for dimensional, angular, shape and positional measurement of precision workpieces. Combining photoelectric digital measurement technology, precision grating scales and digital image processing, the system provides intuitive digital readings and efficient non-contact measurement.
The JX14C can automatically identify workpiece contour boundaries through digital image processing technology, helping reduce human measurement error and improve inspection efficiency. Its professional image measurement software supports complex measurement tasks and enables data communication with CAD systems.
As a versatile large toolmakers microscope, the JX14C is suitable for measuring mechanical parts, gauges, cutting tools, fixtures, molds, threaded components, gears, electronic components, circuit boards, stamped parts, plastic products and rubber products.

Key Features
• 150 × 75 mm precision measuring range
• High-resolution X-Y measurement using precision grating scales
• 0.001 mm digital resolution
• Digital image processing for automatic contour edge recognition
• Reduced operator error and improved measurement efficiency
• Powerful image measurement software for complex inspection tasks
• Measurement data communication with CAD systems
• Main microscope can tilt left and right for spiral and helical parts
• LED transmitted and reflected illumination
• Low heat generation and long LED service life
• Fast movement and fine adjustment mechanisms
• Quick switching between coarse and fine movement
• Supports multiple measurement accessories
• Optional centering device, center support, V-block and other fixtures
• Suitable for precision dimensional and geometric inspection

Working Principle
The JX14C Image Processing Large Toolmakers Microscope combines optical imaging, digital image processing and precision coordinate measurement.
During measurement, the workpiece is positioned on the measuring stage and illuminated by transmitted or reflected LED light. The optical microscope magnifies the workpiece image, while the precision grating scales measure X and Y movement with digital output.
The digital image processing system automatically identifies the contour boundary of the workpiece and assists with dimensional and geometric measurements. The measurement software processes coordinate and image data to evaluate parameters such as:
• Length and width
• Diameter and radius
• Angle
• Position
• Shape
• Symmetry
• Thread parameters
• Gear tooth geometry
• Geometric tolerances
The tilting microscope column also allows measurement of helical and spiral components that cannot be easily inspected with conventional fixed optical systems.

Typical Measuring Objects
The JX14C large toolmakers microscope can measure:
• Templates and profile gauges
• Form turning tools
• Punches and dies
• Cams and formed parts
• Thread plug gauges
• Lead screws and worms
• External thread major diameter, minor diameter and pitch diameter
• Thread pitch and thread flank angle
• Gear hobs
• Gear lead and tooth profiles
• Hole position accuracy on drill jigs and hole plates
• Keyway symmetry
• Geometric position errors
• Precision tools and mechanical components

Technical Specifications

Parameter	Specification
Product Model	JX14C
Instrument Type	Image Processing Large Toolmakers Microscope
Measuring Range	150 × 75 mm
Resolution	0.001 mm
Measuring Accuracy	(2 + L/50) µm, where L is the measured length in mm
Measurement Technology	Photoelectric digital measurement + image processing
X-Y Measuring Element	Precision grating scale
Image Processing	Automatic contour edge recognition
CAD Communication	Supported
Round Worktable Diameter	Ø190 mm (Glass) / Ø280 mm (Metal)
Angular Range	0°–360°
Angular Graduation	3′
Worktable Load Capacity	20 kg
Main Microscope Column Tilt Range	±12°
Tilt Angle Graduation	30′
Illumination	LED transmitted and reflected illumination
Optical Positioner Minimum Detectable Hole	Ø5 mm
Optical Positioner Maximum Detection Depth	15 mm
Measuring Force	0.1 N
Center Support Maximum Clamping Diameter	Ø70 mm
Center Support Maximum Clamping Length	190 mm
Movement Mode	Fast movement and fine adjustment
Available Accessories	Center support, V-block, optical positioner and other optional accessories

Applications
The JX14C image processing toolmakers microscope is widely used in:
• Machinery manufacturing
• Tool and cutting tool manufacturing
• Mold and die manufacturing
• Automotive component inspection
• Precision instrument manufacturing
• Electronics manufacturing
• PCB inspection
• Plastic and rubber product inspection
• Quality control laboratories
• Metrology rooms
• Inspection stations
• Universities and technical colleges
• Scientific research institutes
• Precision manufacturing laboratories

JX14C vs Conventional Toolmakers Microscope

Feature	JX14C Image Processing Toolmakers Microscope	Conventional Optical Toolmakers Microscope
Measurement Method	Digital image processing + optical measurement	Mainly manual optical observation
Contour Detection	Automatic edge recognition	Manual alignment
Reading Method	Digital display	Manual scale reading
Human Error	Reduced	Higher operator dependency
Resolution	0.001 mm	Depends on model and reading method
CAD Communication	Supported	Usually unavailable
Complex Measurement	Software-assisted	Mainly manual calculation
Helical Part Measurement	Microscope tilt ±12°	Often limited
Illumination	LED reflected and transmitted light	Conventional lamp or optical illumination
Data Processing	Digital measurement software	Limited data processing
Inspection Efficiency	High	Moderate
Application Range	Parts, tools, molds, threads, gears, electronics	Mainly conventional dimensional inspection

Compared with a conventional optical toolmakers microscope, the JX14C Image Processing Large Toolmakers Microscope provides higher automation and measurement efficiency through digital image processing and automatic contour recognition. The combination of precision grating measurement, image software and CAD communication makes it especially suitable for modern quality control and precision manufacturing applications.

Frequently Asked Questions (FAQ)
1. What is the JX14C Image Processing Large Toolmakers Microscope used for?
The JX14C is used for precision measurement of dimensions, angles, contours, shapes and positional features of mechanical parts, tools, molds, threads, gears and electronic components.
2. What is the measuring range of the JX14C?
The X-Y measuring range is 150 × 75 mm.
3. What is the measurement resolution?
The JX14C provides a digital resolution of 0.001 mm.
4. Can the JX14C automatically detect workpiece edges?
Yes. The instrument uses digital image processing technology to automatically identify contour boundaries, helping reduce manual alignment errors.
5. Can measurement data be used with CAD systems?
Yes. The image measurement software supports data communication with CAD systems for efficient inspection and dimensional analysis.
6. Can the microscope measure threaded and helical parts?
Yes. The main microscope column can tilt within ±12°, making the JX14C suitable for measuring spiral, helical and threaded components.
7. What types of workpieces can be measured?
The system can measure mechanical parts, gauges, cutting tools, molds, thread gauges, screws, worms, gear hobs, circuit boards, stamped parts, plastic products and rubber components.
8. What accessories are available?
The JX14C can be equipped with accessories such as an optical positioner, center support, V-block, dividing head, height measuring device, double-image eyepiece and contour eyepiece.
9. What industries commonly use the JX14C?
It is widely used in machinery manufacturing, tool manufacturing, mold production, automotive manufacturing, electronics, quality control laboratories, universities and scientific research institutes.
