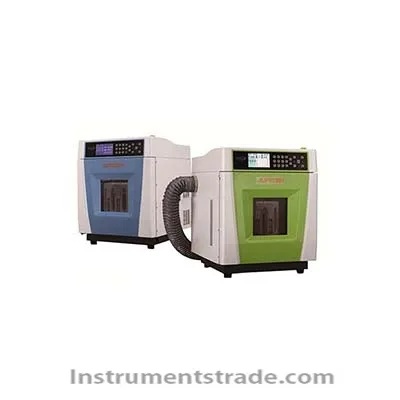

Jupiter -A High Throughput Microwave Digestion Workstation

Product ID：SYZXwbxj009

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberJupiter -A

Brand NameYIMA

Payment TermsT/T, paypal

Features:
1.Satisfy the requirements of different samples' digestion / extraction processing.
2.Up to 12 vessels high-throughput processing capacity.
3.Exclusive patented multifunctional safety bolt design, instead of explosion-proof membrane and other consumables.
4.Aerospace composite fiber outer vessel-the highest level of security measures.
5.Large-screen color software interface, clear and direct-viewing in operation, bright in appearance and smart in performance.
6.Connected to and controlled by computer, achieving secure remote operation, and unlimited program storage database.
7.Small volume VS big chamber, which is advance in industrial design and provides perfect experience.
8.Won China’stop award-ECEIA GOLD four times and leads in the number of users nationally.
Main Technical Parameters:

Power	220-240 VAC 50/60Hz 8A
Microwave frequency	2450MHz
Installed power	1800W
Maximum output power	1300W,non-pulse continuous automatic variable frequency control
Turntable design	Load 12 JP-100 closed digestion vessels at same time (standard configuration is 10 vessels)
Pressure measurement and control system	Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa
Temperature measurement and control system	Highprecision platinum resistor temperature sensor, temperature range:0-300°C, accuracy ±1°C
Outer vessel material	Explosion-proof outer vessel made of aerospace composite fiber
Inner vessel material	Modified TFM material
Software	JUPITER-A apply JSs software.	JUPITER-B apply JSb software
Chamber exhaust system	High-power anticorrosion axial fan, exhaust speed: 3.1 m3/min
Operating ambient temperature	0-40 °C
Working environment humidity	15-80%RH
Whole physical size	450600620mm (Width x Depth x Height)
Net weight	42 KG

Features:
1.Satisfy the requirements of different samples' digestion / extraction processing.
2.Up to 12 vessels high-throughput processing capacity.
3.Exclusive patented multifunctional safety bolt design, instead of explosion-proof membrane and other consumables.
4.Aerospace composite fiber outer vessel-the highest level of security measures.
5.Large-screen color software interface, clear and direct-viewing in operation, bright in appearance and smart in performance.
6.Connected to and controlled by computer, achieving secure remote operation, and unlimited program storage database.
7.Small volume VS big chamber, which is advance in industrial design and provides perfect experience.
8.Won China’stop award-ECEIA GOLD four times and leads in the number of users nationally.
