Sales JQ-B4 soil grinding machine，Manufacturer

Position: Home > > Lab general equipment > Crushing equipment > Crushing apparatus > JQ-B4 soil grinding machine

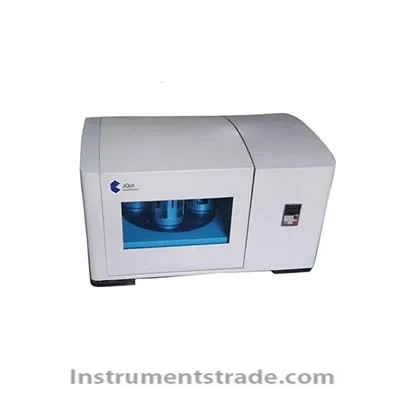

JQ-B4 soil grinding machine

Product ID：SYFSfs014

Price: Please inquire PDF Format

Supply Ability:50 SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberJQ-B4

Brand NameHBJQ

Payment TermsT/T, paypal

Introduction:
The soil grinder is the most typical grinder in our company and is ideal for grinding hard, medium hardness and brittle samples with dry and wet grinding. Samples from a few milligrams to a few kilograms can be processed to grind the particle size to below 1 micron. The soil grinder is mainly used for the analysis and monitoring of soil samples during the analysis and monitoring of heavy metal content of soil samples by domestic and international environmental monitoring departments, as well as animal and plant protection departments and animal husbandry at home and abroad.
Features:
1. It can set the running start time, convenient parameter setting, digital screen display, one-button operation
2. Power-off protection design, can store grinding time
3. Maximum continuous working time (full load): 72 hours
4. Two different grinding modes (dry and wet)
5. The product features full, easy operation, high efficiency, low noise, and the host can be equipped with grinding accessories of different materials to avoid sample contamination to the utmost extent.
6. Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments
7.A model can directly set the 50-step gradient program on the LCD touch screen for the ball mill speed, timing, forward and reverse, and can store 10 gradient settings. You can remotely update the parts, you can configure the computer, and one computer can control the software system of the multi-billiard mill at the same time (software and computer need to purchase separately)
8. This instrument has passed the quality certification of CFQC, CE, FC, RoHS and so on.
Technical Parameters:

Model	JQ-B4	JQ-B4A		JQ-B6	JQ-B6A			JQ-B8	JQ-B8A
Working mode	dry or wet
Feed size	Soil≤10MM， Metal ores≤3MM
Discharge size	Minimum of up to≤0.1μm
Working principle	impact & friction force
Speed	0~1499 RPM or 0~50HZ
Number of cans	1/2/4			6				8
capacity of can	50ml、100ml、250ml
material of cans	Agate、Stainless steel、Tungsten carbide、PTFE、Nylon、Zirconium oxide、PC…
Display mode	Digital display	LCD touch screen		Digital display	LCD touch screen		Digital display		LCD touch screen
Other function	Timing/REVERSE Servo Reversing/ Program AE
Size	80CM50CM50CM
Weight	150KG		160KG			170KG
Noise	≤50 db

Introduction:
The soil grinder is the most typical grinder in our company and is ideal for grinding hard, medium hardness and brittle samples with dry and wet grinding. Samples from a few milligrams to a few kilograms can be processed to grind the particle size to below 1 micron. The soil grinder is mainly used for the analysis and monitoring of soil samples during the analysis and monitoring of heavy metal content of soil samples by domestic and international environmental monitoring departments, as well as animal and plant protection departments and animal husbandry at home and abroad.
