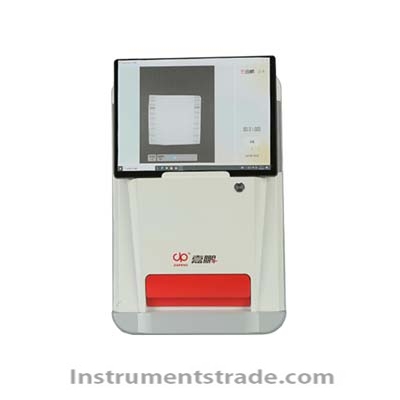

JP-K4600Plus chemiluminescence imaging system Introduction: The chemiluminescence imaging system (mini type) JP-K4600Plus is specifically designed for chemiluminescence and bioluminescence imaging. Chemiluminescence detection: Western Lightning, ECL, ECL plus, CDP Star SuperSignal, CSPD, LumiGIo, and other luminescent substrates Features: 1. Adopt a new generation of refrigeration industrial camera with 9 million pixels (optional 23.65 million pixels) 2. Equipped with a fixed-focus lens with a large aperture of F/0.95, (an F/0.8 lens is optional) 3. 11x11cm ultra-large space stage, suitable for conventional Western Blot (WB) experiments 4. Users can set the timing for automatic light source shutdown (0-60 minutes) 5. The anti-scattering sample stage minimizes the impact of light scattering 6. Equipped with an electric drawer sample table, which can be opened automatically or manually Technical Specifications: Refrigerated industrial camera: SONY IMX533CLK-D, 4/3 inch, 3000x3000 (9 million pixels) (Optional: 5376x4400 pixels, 23.65 million) Dynamic range: 4.8 OD. 16-bit grayscale (0-65535) Image size: 5.4um x 5.4um Pixel merging: 1x1, 2x2, 3x3, 4x4, 6x6, 8x8 CCD temperature: -45℃** temperature, relative to the greenhouse temperature of -65℃ Light-sensing efficiency: > 75% Lens: F/0.95 fixed focal length lens (F/0.8 lens is optional) Top-mounted white light source: Enhances low-luminance images with extremely high uniformity Dark current: <0.0005e-/pixel Photographed area: 10 x 8.8 cm Input power supply: AC220V, 50/60HZ Instrument size (mm): 295x245x450 Instrument weight (kg): 5
