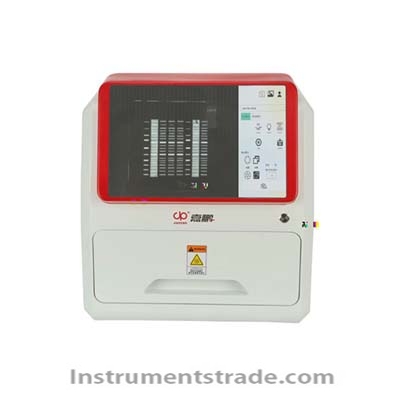

JP-388Plus gel imaging analysis system Introduction: The fully automatic gel imaging analysis system is primarily used for the analysis and research of electrophoresis gel images, hybridization membranes, etc. It is fully controlled by a computer and highly programmed, making the operation simple, convenient, and practical. Features: 1. 13.3-inch industrial computer LCD monitor 2. Multi-functional control panel with touch buttons, making function selection simple and convenient 3. Fully automatic control of lens focusing, aperture, transmitted UV light, and reflected light can be achieved through software or the chassis panel 4. Scientific-grade CCDs capture high-definition, high-quality images that reveal more details in the picture, with enhanced ability to analyze faint stripes 5. The sample condition can be observed in real-time through software or UV-blocking observation window, making it more intuitive and clearer 6. The photos taken can be saved in common formats such as TIFF and JPEG 7. Timed protection function: If no command is inputted within 15 minutes, all light sources will automatically shut off, extending their service life 8. Close the operating software: The system will automatically turn off all light sources simultaneously, making the experiment safer and more efficient 9. Blue-white light board: It can achieve the operation of converting between blue and white light. Technical Specifications: CCD chip: 1 inch, 5472(H)×3660(V), 20 million pixels Dynamic range: 4.5 OD. 16-bit grayscale, double-stranded DNA below 20 pg stained with EB Image size: 5.7 um x 4.28 um Pixel merging: 1×1, 2×2, 3×3, 4×4 Lens: High-transparency electric lens, 8~48mm, aperture F1:1.2, automatic, electric lens Exposure time: 1ms to 2948ms Sensitivity: * Lowest detectable limit of 0.01ngEB chromosomal DNA Detected signal-to-noise ratio: ≥42dB Excitation light source: 300nm transmitted UV, 254, 365nm reflected UV Transmission stage: Ultra-bright UV transmission stage, with an area of 210×260mm, and a blue-white light plate of 210×300mm Filter: Standard configuration at 590nm, compatible with most fluorescent dyes such as EB, Sybr, GoldView, etc Software: JP-GEL 1D Image Analysis Software, JP Analysis 3.3 (new analysis software) Input power supply: AC220V, 50/60HZ Overall dimensions (mm): 440x430x460 Instrument weight (kg): 19
