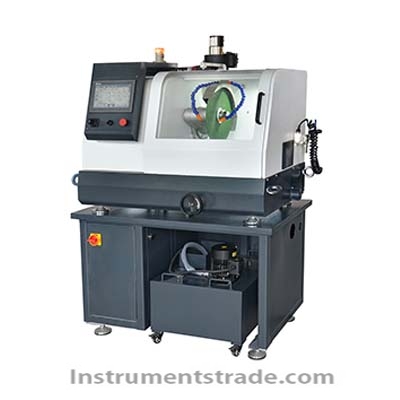

JMQ-100C automatic precision cutting machine Introduction: This machine is a PLC-controlled automatic metallographic specimen cutting machine, which can also be manually operated by turning the platform with a handwheel. The overall structure is sturdy and the design is reasonable. It adopts an electromechanical separation structure to effectively protect electrical safety. The electrical components are placed in a lower cabinet, making maintenance convenient and extending the service life. It uses Schneider Electric and Mitsubishi PLCs, with automatic precise control in X, Y, and Z directions. The intelligent cutting system can adjust the feed rate according to the hardness of the material, achieving fast cutting results. The cutting speed is controlled by frequency conversion, providing high reliability and control capability. The machine has two open sides, making it ideal for sampling and processing long strip specimens. The cut specimens have a bright and smooth surface without burns, making it an ideal equipment for specimen cutting. Features: 1. Utilizing Schneider Electric components and Mitsubishi PLCs, with core components imported, to ensure product quality; 2. Controlled by a 10-inch industrial touch screen, with automatic precise control in X, Y, Z directions, joystick positioning, and easier operation; 3. With both manual and automatic modes, the feed method is flexible. The automatic cutting features three modes: continuous, reciprocating, and pulsed. Depending on the characteristics of different materials, different cutting modes can be selected to achieve rapid cutting effects; 4. Equipped with multiple cutting methods, it can achieve functions such as multi-axis linkage cutting and continuous thin-sheet cutting; 5. Both ends are equipped with openings, suitable for cutting long strip-shaped samples, with more flexible cutting positions; 6. Large-area explosion-proof transparent observation window, LED lighting, and automatic mist exhaust system, enhancing brightness and clarity within the working chamber; 7. External one-word laser positioning ensures more accurate sample cutting and positioning, and is more durable without being immersed in water; 8. The sliding door of the cutting chamber is easy to open and close, and sample loading is convenient; 9. Equipped with a safety electric lock, it ensures operational safety by forcibly closing during operation; 10. The mobile filtration and circulation water tank is easy to maintain and can be directly placed in the cabinet, saving floor space; 11. Independent high-pressure water gun for easy cleaning of the cutting chamber. Technical parameters: Model: JMQ-100C Spindle speed: 500-3000r/min Main spindle motor: Haiguang variable frequency motor, 4kW Cutting feed rate: 0.1~100mm/min Feed motor: servo motor Cutting blade size: Φ350×2.5×Φ32mm Cutting platform size (X*Y): 310×233mm, 10mm T-slot Y-axis travel: 188mm X-axis travel: 120mm Z-axis travel: 125mm chopping type Cutting capacity: Maximum cutting diameter Φ100mm Maximum cutting section 100×100mm Clamp opening: Quick clamp, maximum opening 105mm, jaw height 60mm Input power supply: 380V, 50Hz, three-phase, five-wire Overall dimensions: 1205×900×1750mm Weight: Approximately 1000kg Water tank capacity: 80L Pump flow rate: 67L/min Water tank dimensions: 610×550×590mm Water tank weight: 60kg
JMQ-100C automatic precision cutting machine Introduction: This machine is a PLC-controlled automatic metallographic specimen cutting machine, which can also be manually operated by turning the platform with a handwheel. The overall structure is sturdy and the design is reasonable. It adopts an electromechanical separation structure to effectively protect electrical safety. The electrical components are placed in a lower cabinet, making maintenance convenient and extending the service life. It uses Schneider Electric and Mitsubishi PLCs, with automatic precise control in X, Y, and Z directions. The intelligent cutting system can adjust the feed rate according to the hardness of the material, achieving fast cutting results. The cutting speed is controlled by frequency conversion, providing high reliability and control capability. The machine has two open sides, making it ideal for sampling and processing long strip specimens. The cut specimens have a bright and smooth surface without burns, making it an ideal equipment for specimen cutting.
