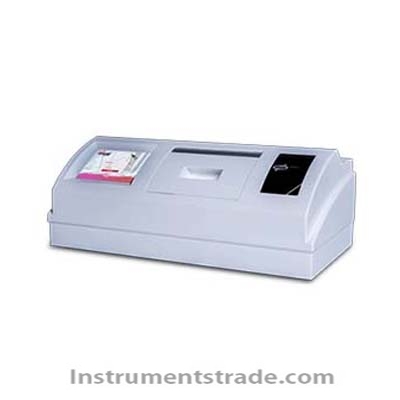

JH-P200 automatic polarimeter for purity analysis

Product ID:GGFxgyi020

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberJH-P200
    Brand NameSHANGHAIJIAHANG
    Payment TermsT/T, paypal
    JH-P200 automatic polarimeter

    Introduction:
    Polarimeter is an instrument for measuring the optical rotation of a substance. The concentration, content and purity of substances can be analyzed and determined by the determination of the rotation degree. It is widely used in sugar, pharmaceutical, petroleum, food, chemical and other industrial departments and related universities and research institutes. Our factory is a professional manufacturer of Rotation in China.
    Features:
    1. The LED light source with a service life of more than 100,000 hours replaces the traditional sodium lamp and tungsten halogen lamp, which makes up for the short life and easy
       Defects such as damage;
    2. The measurement range is upgraded to ±89° (optical rotation), which improves the limitation of the measurement sample and improves the selectivity of the measurement sample;
    3. The control is systematic, highly integrated, fully automated, and convenient and easy to operate.
    4. The large color touch screen and innovative WINDOWS interface software make instrument control and data reading more convenient, satisfying the habits of high-end users.
    5. The whole machine has passed the TART quality certification standard of laboratory analytical instrument and CE certification.
    Technical Parameters:
    Measurement mode: optical rotation, specific rotation, concentration, sugar content
    Correction method: none
    Measuring range: Optical rotation ±89.99°Brix degree ±257°Z
    Indication error:
    ±0.01° (when 45°≤optical rotation +45°)
    ±0.02°(when optical rotation <45° or optical rotation>+45°)
    Minimum reading: 0.001 (optical rotation)
    Repeatability: (standard deviation s) 0.002° (optical rotation)
    The lowest transmittance of measurable samples: 1%
    Light source: LED cold light source + high-precision interference filter
    Working wavelength: 589.3nm
    Communication interface: USB, RS232
    Data storage capacity: 1000
    Display mode: 7-inch TFT true color touch screen
    Data storage: 1000 groups
    Power source: 220V±22V, 50Hz±1Hz, 250W
    Net weight of the instrument: 24kg


  • Introduction:
    Polarimeter is an instrument for measuring the optical rotation of a substance. The concentration, content and purity of substances can be analyzed and determined by the determination of the rotation degree. It is widely used in sugar, pharmaceutical, petroleum, food, chemical and other industrial departments and related universities and research institutes. Our factory is a professional manufacturer of Rotation in China.
