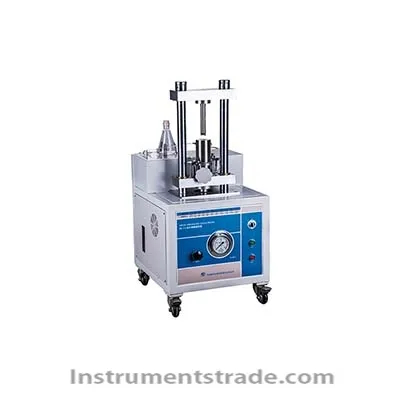

Brief introduction: The maximum pressure of the uhv cell crusher reached 256Mpa(37120PSi), meeting the homogenization/dispersion of various cell walls and samples, and achieving effective temperature control at the same time. • continuous adjustable pressure, 0 ~ 37120PSi • physical methods are broken to avoid external pollution • easy to operate and maintain • simple operation, continuous circulation of the sample, no exhaust, direct feed • high safety factor, the circuit has overload automatic protection function • it can meet the wall breaking of various cells and samples, and has no specificity for samples Application field: • the breakdown rate of escherichia coli and yeast was over 95%; • fungal breakage of yeast/ganoderma spores; Algae crushing; • homogeneous emulsion, liposome, microemulsion, and solid-liquid suspension with uniform particle size distribution below 100nm. Technical indicators: Model number: JG - 1 A Electric voltage: 380 V Pressure device: hydraulic system Sample barrel: stainless steel Pressure pool size: Φ 25 * 150 mm Capacity: up to 50ml/ time, continuously add samples Maximum crushing pressure: 256Mpa(37120PSi) Maximum stroke of pressure plate: 170 mm Pressure plate speed: 6.8mm/s Appearance size: 555*600*1170 mm
