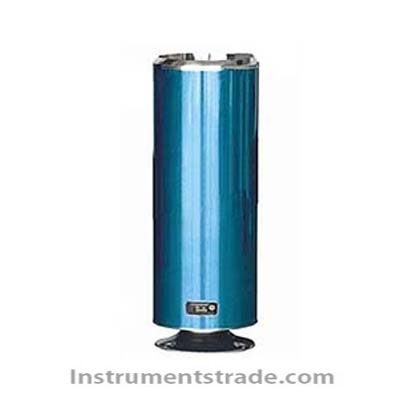

JFZ-1 Float Capacitive Rain Gauge

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Rain gauge > JFZ-1 Float Capacitive Rain Gauge

JFZ-1 Float Capacitive Rain Gauge

Product ID：CLQTylj011

Price: Please inquire PDF Format

Supply Ability:100SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJFZ-1

Brand NameWFHEHAI

Payment TermsTT，PAYPAL，Alibaba.com Pay

JFZ-1 Float Capacitive Rain Gauge
Product Introduction
The JFZ-1 Float Capacitive Rain Gauge is a high-precision automatic rainfall measurement instrument designed for meteorological observation, hydrological monitoring, and precipitation data collection. It adopts a float-type measurement structure combined with a capacitive displacement sensor, enabling accurate detection of rainfall changes.
With a capacitive sensor resolution of 0.1mm, the JFZ-1 rain gauge provides highly accurate rainfall measurement. The instrument uses two electric valves to automatically control water inlet and drainage, allowing the float to drive the capacitive displacement sensor for continuous cyclic measurement.
During rainfall recording, the unique water control design prevents rainfall loss and improves measurement reliability, ensuring accurate precipitation monitoring over long-term operation.

Key Features & Benefits
1. High Precision Rainfall Measurement
• Capacitive displacement sensor technology.
• Rainfall measurement resolution up to 0.01mm.
• Accurate detection of small precipitation changes.
2. Automatic Water Control System
• Equipped with two electric valves for automatic water inlet and drainage.
• Prevents rainfall loss during measurement.
• Ensures continuous and stable rainfall recording.
3. Reliable Float Measurement Structure
• Float movement directly reflects rainfall variation.
• Cyclic measurement design improves accuracy.
• Suitable for long-term unattended operation.
4. Large Data Storage Capacity
• Rainfall recording capacity exceeds 5000mm.
• Supports more than 4 years of rainfall data storage.
• Suitable for remote meteorological monitoring stations.
5. Low Power Consumption Design
• Ultra-low static power consumption.
• Suitable for solar-powered and remote monitoring systems.

Working Principle
The JFZ-1 Capacitive Rain Gauge works based on the relationship between rainfall accumulation and float displacement.
When rainwater enters through the precision rain collector, it flows into the measuring chamber and causes the float level to change. The float movement drives the capacitive displacement sensor, which converts mechanical displacement into an electrical signal.
The built-in control system calculates the rainfall amount according to the sensor displacement. Two electric valves automatically manage water intake and drainage, allowing the instrument to repeatedly measure rainfall without losing accumulated precipitation data.
The high-resolution capacitive sensor provides precise rainfall measurement and stable long-term monitoring performance.

Technical Specifications

Parameter	Specification
Model	JFZ-1
Measurement Type	Float-type capacitive rainfall measurement
Sensor Type	Capacitive displacement sensor
Rainfall Resolution	0.01mm
Sensor Resolution	0.1mm
Rain Collector Diameter	Φ200 +0.60mm
Collector Edge Angle	40°-45° blunt angle
Rainfall Storage Capacity	>5000mm or >4 years
Water Control System	Dual electric valve control
Static Power Consumption	0.006W
Dynamic Power Consumption	1.2W
Operating Temperature	0℃ to +60℃
Operating Humidity	≤95%RH (40℃)
Dimensions	Φ232mm × 680mm

Application Scenarios
Meteorological Monitoring
• Automatic weather stations.
• Precipitation observation networks.
• Climate research projects.
Hydrological Monitoring
• River basin rainfall monitoring.
• Water resource management.
• Flood warning systems.
Agricultural Applications
• Agricultural weather stations.
• Irrigation management.
• Crop growth environment monitoring.
Environmental Monitoring
• Rainfall data collection.
• Ecological research stations.
• Remote environmental monitoring systems.

JFZ-1 Rain Gauge vs Conventional Rain Gauges

Feature	JFZ-1 Float Capacitive Rain Gauge	Conventional Rain Gauge
Measurement Technology	Float + capacitive displacement sensor	Mechanical or simple tipping bucket
Measurement Resolution	0.01mm	Usually 0.1mm or higher
Measurement Accuracy	High precision continuous measurement	Limited accuracy
Rainfall Loss Prevention	Automatic valve control system	Possible water loss
Data Storage	>5000mm / >4 years	Limited storage
Power Consumption	Ultra-low power design	Usually higher
Long-Term Monitoring	Excellent for unattended operation	Requires more maintenance
Application Range	Meteorological and hydrological systems	Basic rainfall observation

Frequently Asked Questions (FAQ)
Q1: What is the JFZ-1 Rain Gauge used for?
The JFZ-1 Rain Gauge is mainly used for automatic rainfall measurement in meteorological stations, hydrological monitoring networks, agriculture, and environmental observation systems.
Q2: What is the measurement resolution of JFZ-1?
The JFZ-1 provides a rainfall resolution of 0.01mm, allowing accurate detection of small precipitation changes.
Q3: How does the capacitive sensor improve rainfall measurement accuracy?
The capacitive displacement sensor detects float movement with high sensitivity, converting rainfall changes into precise electrical signals for accurate measurement.
Q4: Does the rain gauge lose rainfall data during measurement?
No. The dual electric valve water control system prevents rainfall loss during the measurement process and improves data accuracy.
Q5: How long can the JFZ-1 store rainfall records?
The instrument can store rainfall records exceeding 5000mm or more than 4 years, making it suitable for long-term monitoring.
Q6: Can the JFZ-1 operate in harsh outdoor environments?
Yes. It supports operation from 0℃ to +60℃ and humidity up to 95%RH, suitable for outdoor meteorological applications.

Product Summary
The JFZ-1 Float Capacitive Rain Gauge is a precision automatic rainfall monitoring instrument featuring capacitive displacement sensing, 0.01mm rainfall resolution, automatic water control, and long-term data storage. It provides reliable precipitation measurement solutions for weather stations, hydrological monitoring, agricultural meteorology, and environmental research applications.
