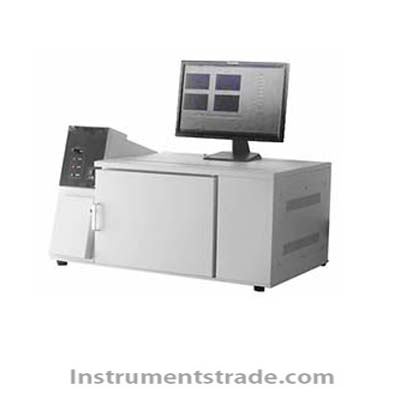

JF0428Z Automatic High Temperature Grease Life Tester

Position: Home > > Industry specific instrument > Oil special analytical instrument > Lubricating oil detection > JF0428Z Automatic High Temperature Grease Life Tester

JF0428Z Automatic High Temperature Grease Life Tester

Product ID：HZSYrhy043

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberJF0428Z

Brand NameHNJIAFA

Payment TermsTT，PAYPAL，Alibaba.com Pay

JF0428Z Automatic High Temperature Grease Life Tester

Product Introduction
The JF0428Z Automatic High Temperature Grease Life Tester is designed to evaluate the high-temperature life performance of lubricating grease in bearings according to SH/T 0428 and ASTM D3336.
The tester uses computer-controlled automatic operation and automatically determines the test result. After the test bearings and grease samples are installed, the instrument performs the intermittent test procedure according to the applicable standard without requiring continuous operator supervision. This reduces manual workload and improves testing efficiency.
The JF0428Z also incorporates automatic fault detection and shutdown functions. Test data can be automatically stored, queried and displayed as curves and numerical results, providing an integrated solution for high-temperature lubricating grease evaluation.

Performance Features
• Fully automatic computer control: Automatically executes the test procedure after sample installation.
• Automatic result determination: The system automatically evaluates the test results.
• High-speed DC motor: Motor speed reaches 10,000 r/min ±200 r/min.
• Digital speed display: Real-time motor speed display with adjustable speed and overload protection.
• Standard-compliant bearing fixture: Test bearing tooling is designed according to the applicable test requirements.
• High-temperature heating: Electric heating supports temperatures up to 371°C.
• Precision PID temperature control: Digital PID controller with Pt100 sensor provides ±1°C temperature control accuracy.
• Fixed loading system: Stable radial and axial loading helps reduce loading deviation.
• Automatic fault protection: The system detects faults and automatically stops operation to help protect the equipment.
• Automatic data recording: Test time, curves and results are automatically recorded and stored.
• Windows-based operation: Computer control with a Chinese-language interface.
• Easy fixture replacement: Bearing fixtures are convenient to install and remove.
• Durable heating chamber: Insulated heating chamber with a long-life dry-heating electric heater and stainless-steel housing.

Working Principle
The JF0428Z evaluates the high-temperature service life of lubricating grease by operating a specified test bearing under controlled temperature, speed and load conditions.
After the bearing is filled with the test grease and installed in the fixture, the computer-controlled system starts the test according to the programmed procedure. A high-speed DC motor drives the bearing while the electric heating system maintains the specified test temperature.
The bearing is subjected to the specified loading conditions, while the Pt100 temperature sensor and PID controller continuously monitor and regulate the temperature. The system records the test time and operating data automatically.
When a specified test condition or fault occurs, the system can automatically identify the condition and stop the equipment. Test data are stored and presented numerically and graphically for subsequent analysis.

Technical Specifications

Parameter	Specification
Model	JF0428Z
Product Name	Automatic High Temperature Grease Life Tester
Applicable Standards	SH/T 0428, ASTM D3336
Control Mode	Computer automatic control
Result Processing	Automatic test result determination
Heating Method	Electric heating
Temperature Range	Room temperature to 371°C
Temperature Control	Digital PID temperature controller
Temperature Accuracy	±1°C
Temperature Sensor	Pt100
Motor Speed	10,000 r/min ±200 r/min
Speed Display	Digital
Motor Protection	Overload protection
Loading	22.24 N
Radial Load	22 N
Axial Load	22 N
Timing	Digital timer
Data Processing	Automatic curves and numerical display
Data Storage	Automatic storage and query
Fault Protection	Automatic fault detection and shutdown
Heating Chamber	Insulated
Housing	Stainless steel
Control System	Windows operating system
Interface Language	Chinese
Total Power	1.5 kW
Power Supply	AC 220 V / 50 Hz

Application Scenarios
The JF0428Z high-temperature grease life tester is suitable for:
• Lubricating grease manufacturers – formulation development and quality control.
• Bearing manufacturers – evaluation of grease performance in bearing applications.
• Lubricant laboratories – high-temperature grease performance testing.
• Petroleum testing laboratories – standardized lubricant evaluation.
• Industrial equipment research – high-temperature lubrication research.
• Quality inspection laboratories – testing of lubricating grease according to applicable standards.
• Research and development – comparative evaluation of high-temperature grease formulations.

JF0428Z vs. Conventional Grease Life Testing Equipment

Feature	JF0428Z Automatic Tester	Conventional Manual Tester
Control	Computer automatic control	More manual operation
Result Determination	Automatic	Manual or operator-assisted
Maximum Temperature	371°C	Depends on equipment
Motor Speed	10,000 r/min ±200 r/min	Depends on equipment
Temperature Control	Digital PID + Pt100	Depends on equipment
Temperature Accuracy	±1°C	Depends on equipment
Loading	22.24 N	Depends on setup
Fault Detection	Automatic	May require operator monitoring
Automatic Shutdown	Yes	Depends on equipment
Data Curves	Automatically generated	May require manual processing
Data Storage	Automatic storage and query	Often requires manual recording
Continuous Supervision	Not normally required during programmed operation	More operator involvement

FAQ
1. What does the JF0428Z test?
The JF0428Z is designed to evaluate the high-temperature life performance of lubricating grease in bearings.
2. Which standards does the JF0428Z follow?
The instrument is designed according to SH/T 0428 and ASTM D3336.
3. What is the maximum test temperature?
The specified temperature range is from room temperature to 371°C.
4. What is the motor speed?
The high-speed DC motor operates at 10,000 r/min ±200 r/min.
5. How is the test temperature controlled?
A digital PID temperature controller and Pt100 temperature sensor are used, with a specified temperature accuracy of ±1°C.
6. Is the JF0428Z fully automatic?
Yes. After the test bearing and sample are installed, the computer automatically controls the test procedure and processes the test results.
7. Does the tester have automatic fault protection?
Yes. The system automatically detects faults and can stop the instrument to help protect the equipment and associated hardware.
8. Can test data be stored?
Yes. Test results are automatically stored and can be queried. The system also automatically generates data curves and numerical displays.
9. Does the instrument require continuous operator supervision?
The programmed test process is automatically controlled by the computer, reducing the need for continuous manual supervision.
