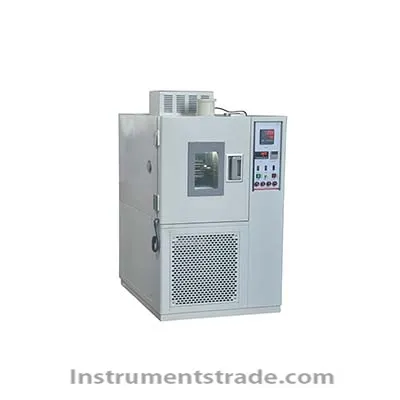

JF0338 Automobile wheel hub bearing grease low temperature torque tester

Product ID:HZSYrhy045

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberJF0338
    Brand NameHUNANJIAFA
    Payment TermsTT,PAYPAL
    JF0338 Automobile wheel hub bearing grease low temperature torque tester

    Introduction:
    The low-temperature torque tester for automotive wheel bearing grease is suitable for measuring the running performance of grease in specially manufactured, spring-loaded automotive wheel bearing assemblies under low temperature conditions. The test principle is to fill the grease sample into a special In the manufactured automobile wheel hub bearing assembly, the device assembly is first heated and then immersed at -40°C. In addition, other test temperatures can be set according to the requirements of the grease specification. The spindle runs at a speed of 1r/min, and the torque value that prevents the hub from rotating when it runs to 60s is measured.
    Features:
    1. Standard built-in and outside tapered roller bearings, LM67010-LM67048 and LM11949
    2. Microcomputer temperature controller, temperature control range from normal temperature to -50
    3. pt100 temperature sensor, the acquisition accuracy is high ± 0.5
    4. Imported compressor cascade refrigeration, low noise.
    5. The transmission motor adopts a high-speed ratio, 1740/1, which can maintain a stable speed.
    6. The low temperature box is insulated with special materials, and there is no temperature influence on the outside.
    7. Digital display torque value.
    8. The loading spring can withstand the pressure of 500N, and is equipped with a set of pressure calibration device.
    9. Digital display working time and bj.
    10. A set of standard greaser.
    technical parameter
    Applicable standards: NB/SH/T0839, ASTM D4693
    Refrigeration method: Danfoss dual compressor refrigeration
    Temperature control range: normal temperature~-50
    Time control: digital time timer
    Speed ​​control: 1r/min
    Torque test: digital dynamometer
    Torque* degree: 0.1*
    Working power supply: AC220V 50HZ
    Machine power: 1000W
    Loading quality: 400N

  • Introduction:
    The low-temperature torque tester for automotive wheel bearing grease is suitable for measuring the running performance of grease in specially manufactured, spring-loaded automotive wheel bearing assemblies under low temperature conditions. The test principle is to fill the grease sample into a special In the manufactured automobile wheel hub bearing assembly, the device assembly is first heated and then immersed at -40°C. In addition, other test temperatures can be set according to the requirements of the grease specification. The spindle runs at a speed of 1r/min, and the torque value that prevents the hub from rotating when it runs to 60s is measured.
