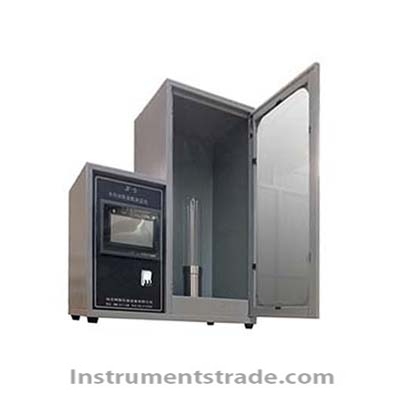

Brief introduction: Suitable for plastic, rubber, fiber, plastic foam, film and film and textile materials such as combustion performance measurement Features: 1. The industrial computer control the whole process of test, a high degree of automation, the operator as long as according to the test Requirements will need the oxygen density from touch screen input, the instrument can automatically track adjustment make stable oxygen concentration in the set value. 2. Direct detection and display sample chamber of the oxygen density. 3. Automatic ignition mechanism to ensure the safe and reliable ignition. 4. Automatic processing by computer, display each set of test data, and judgement of the reliability test data. Technical parameters: 1, imported oxygen sensor, touch LCD display 2 set, oxygen concentration range: 0% ~ 100% resolution: 0.01% 3, working pressure: 0.1 Mpa 4, measure precision: plus or minus 0.2% 5, response time: < 10 s 4, burning time: 1 seconds to 300 seconds; 5, igniter flame height: 15 ~ 20 ㎜ adjustable; 6, combustion of quartz glass tube size: inner diameter or greater 75 ㎜, total height 450 ㎜ or higher. 7, gas flow microcomputer control, automatic control of oxygen, nitrogen concentration ratio, the automatic calculation of oxygen density, Automatically find the K value, automatically calculate the standard deviation. 8, the user should bring along their own oxygen, nitrogen, propane gas.
