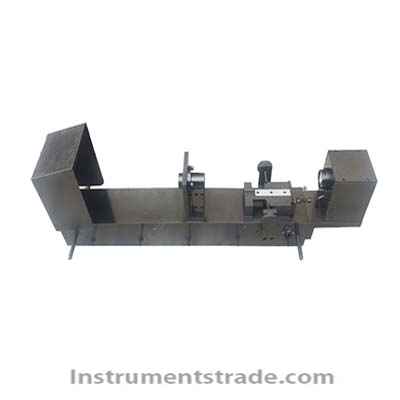

JBDD-3-65 desktop guide center instrument Introduction: The desktop guide alignment instrument produced by our company is a precision optical projection measuring instrument, which replaces similar imported products from abroad in terms of performance. The function of the desktop guide alignment instrument is mainly used for adjusting the positioning of high-speed wire guides. The projection device projects the image of the guide roller onto the hole type reference template. By adjusting the guide roller (including its height, left and right, and size), the projection of the guide roller coincides with the lines on the hole type reference template, thus achieving the correct adjustment of the guide position. The desktop guide centering instrument can accurately set and adjust the guide rollers, improve the service life of rollers and bearings, reduce labor intensity, lower production costs, improve the surface quality and dimensional accuracy of finished products, reduce scrap rates, and ensure stable production. The desktop guide alignment instrument is mainly divided into two types: pre precision rolling with a magnification of 3 times and precision rolling with a magnification of 5 times. Technical Specifications: Pre precision rolling desktop guide alignment instrument (YTDD-3/54) 1. Projection screen image size (mm): φ 160 2. Objective magnification (x): 3 3. Large size of guide hole (mm): φ 53 4. Height from guide seat base to roller center (mm): 54 5. Guide keyway width (mm): 12 6. Distance from the center of the guide roller to the axis of the mirror surface (mm): 170 Precision rolling table guide alignment instrument (JTDD-5/65) 1. Projection screen image size (mm): φ 160 2. Objective magnification (x): 5 3. Large size of guide hole (mm): φ 32 4. Height from guide seat base to roller center (mm): 65 5. Guide keyway width (mm): 25 6. Distance from the center of the guide roller to the axis of the mirror surface (mm): 130
Introduction: The desktop guide alignment instrument produced by our company is a precision optical projection measuring instrument, which replaces similar imported products from abroad in terms of performance. The function of the desktop guide alignment instrument is mainly used for adjusting the positioning of high-speed wire guides. The projection device projects the image of the guide roller onto the hole type reference template. By adjusting the guide roller (including its height, left and right, and size), the projection of the guide roller coincides with the lines on the hole type reference template, thus achieving the correct adjustment of the guide position. The desktop guide centering instrument can accurately set and adjust the guide rollers, improve the service life of rollers and bearings, reduce labor intensity, lower production costs, improve the surface quality and dimensional accuracy of finished products, reduce scrap rates, and ensure stable production. The desktop guide alignment instrument is mainly divided into two types: pre precision rolling with a magnification of 3 times and precision rolling with a magnification of 5 times.
