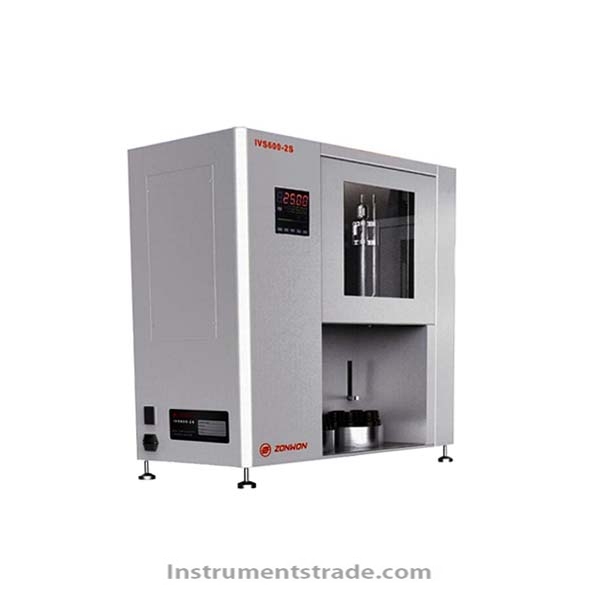

IVS600-2S Automatic viscosity analyzer for Polymer materials field

Product ID：WLNnd007

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberIVS600-2S
Brand NameYM
Payment TermsT/T, paypal

Brief introduction
IVS600-2S automatic viscosity analyzer based on ISO, ASTM, DIN, GB, standard design, suitable for automatic measurement of Ubbelohde viscometer, can calculate the kinematic viscosity, dynamic viscosity, relative viscosity, intrinsic viscosity, viscosity ratio, polymerization degree, viscosity average molecular weight. Using the unique viscosity tube patent, the whole experiment process of automatic sampling, measurement and on-line automatic cleaning is realized, which can ensure the accuracy of the test data and improve the test efficiency and the safety of the test personnel.
Features
1. Fully automatic - automatic sampling, automatic measurement, automatic cleaning viscosity tube
2. Safety - Testing and cleaning process not contact with chemical reagents
3. Time saving: the time of cleaning the viscosity tube is shortened, which can quickly enter the next sample, so the sample analysis is greatly improved.
Experimental results have good repeatability and comparability.
Technical parameter
1 sample number: 2*6 (12 samples)
2 measurement accuracy: ± 0.01S
3 time range: 0-9999.99 seconds
4 measuring viscosity range:0.35-5000mm2/s (specific use range and supporting the viscosity of the tube)
5 bath temperature control range: 5℃~65℃;
6 bath temperature control accuracy: 0.01℃;
7 bath tank capacity: 12 L;
8 bath power: 1.5KW, cooler power: 300W
9 rated supply voltage: 220V±10%, 50Hz ±1Hz
10 electric shock type: F type application part (safety)
11 leakage current: housing leakage current ≤0.1mA (safety);
12 conditions: normal temperature humidity≤95%RH (no dew);
13 storage conditions: temperature -25℃~+55℃ humidity≤95%RH (no dew)
14 noise: < 70dB
15 instrument appearance size: 660*320*680mm (length * width * height)
16 instrument weight (50KG)
