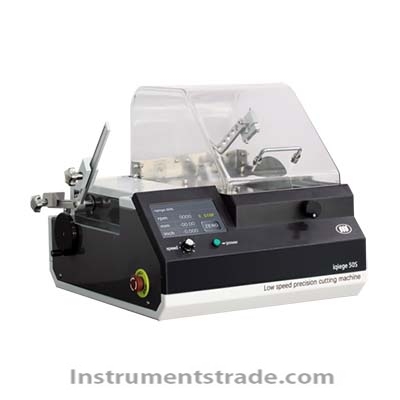

iqiege®-50S Precision Low-Speed Cutting Machine

Position: Home > > Lab general equipment > Sample preparation and digestion > Cutting machine > iqiege®-50S Precision Low-Speed Cutting Machine

iqiege®-50S Precision Low-Speed Cutting Machine

Product ID：SYZYXJqg062

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model Numberiqiege®-50S

Brand NameLAIZHOUWEIYI

Payment TermsTT，PAYPAL，Alibaba.com Pay

iqiege®-50S Precision Low-Speed Cutting Machine

Product Introduction
The iqiege®-50S Low-Speed Precision Cutting Machine is a compact and reliable laboratory cutting system designed for accurate cutting of various materials, particularly high-value brittle artificial crystals and precision specimens.
The machine adopts advanced brushless DC motor control technology, providing stable operation, strong interference resistance, and precise spindle speed adjustment. With a maximum cutting capacity of Φ50 mm, a wide spindle speed range of 150–2000 rpm, and 0.01 mm X-axis transverse accuracy, the iqiege®-50S supports controlled and precise material sectioning.
The system includes one standard single-clamping fixture and five specialized fixtures, allowing workpieces to be positioned at suitable cutting angles. A limit switch enables unattended cutting, while automatic shutdown after cutting improves operational convenience. An optional cutting platform is also available for push-feed cutting applications.

Performance Features
• Low-speed precision cutting: Designed for accurate sectioning of laboratory and material specimens.
• Brushless DC motor: Provides reliable spindle operation, compact structure, and strong interference resistance.
• Wide spindle speed range: Continuously adjustable from 150 to 2000 rpm.
• High spindle accuracy: Supports stable and controlled cutting performance.
• Fine horizontal feed adjustment: X-axis transverse accuracy reaches 0.01 mm.
• Multiple fixtures: One standard single-clamping fixture and five specialized fixtures help position workpieces at appropriate cutting angles.
• Unattended cutting: Limit switch and automatic shutdown enable unattended cutting operation.
• Automatic stop protection: The machine automatically stops when the cutting process is completed.
• Adjustable cutting load: Lever loading from 0–700 g.
• High cutting capacity: Maximum cutting-through capacity reaches Φ50 mm.
• Optional cutting platform: Supports push-feed cutting when required.
• Compact laboratory design: Suitable for controlled precision cutting applications where accurate specimen positioning is important.

Working Principle
The iqiege®-50S uses a high-precision spindle driven by a brushless DC motor to rotate the cutting blade at a controlled speed. The workpiece is securely positioned using the appropriate fixture and can be aligned at a suitable cutting angle.
During cutting, the operator controls the horizontal feed with fine adjustment through the X-axis mechanism. The spindle speed can be continuously adjusted from 150 to 2000 rpm according to the material and cutting requirements.
A lever provides controlled cutting pressure from 0–700 g. The limit switch monitors the cutting position, and once the cutting operation reaches the preset endpoint, the system automatically stops, providing automatic shutdown protection.

Technical Specifications

Parameter	Specification
Model	iqiege®-50S
Product Type	Low-Speed Precision Cutting Machine
Maximum Cutting Capacity	Φ50 mm
Spindle Speed	150–2000 rpm, continuously adjustable
Rated Torque	5.8 N·m
Spindle Cutting Power	0.12 kW
X-Axis Transverse Accuracy	0.01 mm
X-Axis Travel	40 mm
Cutting Disc Outer Diameter	127–177 mm
Maximum Cutting Disc Diameter	200 mm
Cutting Disc Inner Diameter	12.7 mm or 25.4 mm
Blade Chuck Diameter	50 mm
Cutting Pressure	Lever load 0–700 g
Cutting Method	Chop-type cutting
Automatic Protection	Automatic stop after cutting
Water Tank Capacity	1 L
Power Supply	220 V; 110 V available by customization
Dimensions	595 × 630 × 535 mm
Net Weight	45 kg
Standard Fixture	Single-clamping fixture
Specialized Fixtures	5 types
Optional Accessory	Cutting platform

Application Scenarios
The iqiege®-50S precision cutting machine is suitable for:
• Artificial crystal cutting
• Brittle material sectioning
• Materials research
• Metallographic and materials laboratories
• Ceramic and hard-material specimen preparation
• Precision sample preparation
• Laboratory research and development
• Cutting of valuable or delicate specimens
• Research involving controlled low-speed material cutting

iqiege®-50S vs. Conventional Cutting Machine

Feature	iqiege®-50S	Conventional Cutting Machine
Cutting Type	Low-speed precision cutting	General cutting
Motor	Brushless DC motor	Model dependent
Spindle Speed	150–2000 rpm, variable	Model dependent
X-Axis Accuracy	0.01 mm	Model dependent
Maximum Cutting Capacity	Φ50 mm	Model dependent
Cutting Load	0–700 g lever load	Usually less finely controlled
Fixture Options	Standard + 5 specialized fixtures	Model dependent
Automatic Stop	Supported	Model dependent
Unattended Cutting	Supported	Usually limited
Workpiece Positioning	Multiple angle positioning options	Model dependent
Optional Platform	Push-feed cutting platform	Model dependent

FAQ
1. What is the iqiege®-50S used for?
It is designed for precision cutting of various materials and is particularly suitable for high-value brittle artificial crystals and laboratory specimens.
2. What is the maximum cutting capacity?
The maximum cutting-through capacity is Φ50 mm.
3. What is the spindle speed range?
The spindle speed is continuously adjustable from 150 to 2000 rpm.
4. How accurate is the X-axis feed?
The X-axis transverse accuracy is 0.01 mm, with a travel of 40 mm.
5. Can the machine perform unattended cutting?
Yes. The iqiege®-50S is equipped with a limit switch and automatic stop protection, allowing unattended cutting operation.
6. What cutting discs are compatible with the machine?
The standard cutting disc outer diameter is 127–177 mm, with a maximum diameter of 200 mm. The inner diameter can be 12.7 mm or 25.4 mm, and the blade chuck diameter is 50 mm.
7. How is the cutting pressure controlled?
Cutting pressure is applied through a lever mechanism with a load range of 0–700 g.
8. Can the cutting method be expanded to push-feed cutting?
Yes. An optional cutting platform is available for push-feed cutting.
