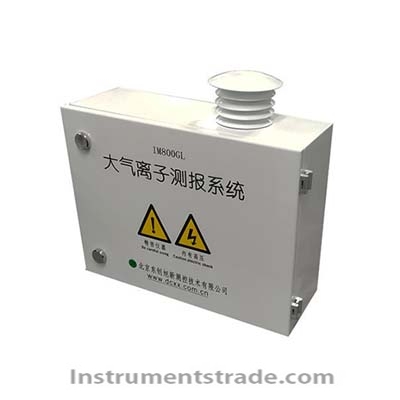

IM800GL Atmospheric Ion Monitoring and Forecasting System

Product ID：HQQTflz007

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberIM800

Brand NameDONGCHUANGXUXIN

Payment TermsTT，PAYPAL，Alibaba.com Pay

IM800GL Atmospheric Ion Monitoring and Forecasting System

Product Overview
The IM800GL Atmospheric Ion Monitoring and Forecasting System is designed for continuous monitoring of atmospheric ion concentration under both normal and demanding environmental conditions. It features a precision air collector, stable airflow control, negative-pressure dust removal, and automatic range switching for reliable long-term operation.
The system measures atmospheric ion concentration across three ranges and can simultaneously monitor ambient temperature and humidity. Its metal air collector provides effective electrostatic shielding, helping reduce the influence of static electricity on measurement accuracy. A contamination warning function alerts users when dirt accumulation in the collection tube may affect measurement performance.

Key Features
• Precision air collector with stable airflow and accurate air-flow regulation.
• Negative-pressure dust removal structure supports long-term operation in dusty or harsh environments.
• Automatic contamination warning indicates when collection tube contamination may affect measurement accuracy.
• Metal air collector provides effective electrostatic shielding to reduce static interference.
• Three automatically switched ion concentration ranges cover up to 3,000,000 ions/cm³.
• Adjustable sampling interval, including continuous measurement mode.
• Simultaneous measurement of atmospheric temperature and humidity.

Working Principle
The IM800GL draws ambient air through a precision air collection system at a controlled flow velocity. Atmospheric ions are collected and measured according to their electrical mobility characteristics. The system provides automatic range switching according to the detected ion concentration, allowing measurements over a wide concentration range.
The air collection structure incorporates negative-pressure dust removal to reduce the impact of particulate contamination during long-term operation. A contamination monitoring function provides an automatic warning when accumulated dirt may influence measurement accuracy. The metal collection structure also helps shield the measurement system from electrostatic interference.

Technical Specifications

Parameter	Specification
Instrument Type	Atmospheric ion monitoring and forecasting system
Working Voltage	AC 220 V; compatible with solar power supply
Average Power Consumption	<3 W
Ion Concentration Resolution	10 ions/cm³
Ion Concentration Range	0–30,000 ions/cm³; 0–300,000 ions/cm³; 0–3,000,000 ions/cm³
Range Selection	Automatic
Sampling Air Velocity	2.8 m/s
Sampling Rate	1 measurement/60 s, software adjustable
Measurement Mode	Timed measurement or continuous measurement
Ion Concentration Error	≤±10%
Ion Mobility	0.4 cm²/(V·s)
Temperature Measurement Accuracy	≤±0.5°C
Humidity Measurement Accuracy	±3%
Rated Operating Temperature	-20 to +60°C
Main Unit Dimensions	450 × 350 × 150 mm

Applications
• Atmospheric ion concentration monitoring.
• Environmental and atmospheric research.
• Long-term outdoor environmental monitoring.
• Atmospheric electricity and ion mobility studies.
• Monitoring applications where temperature, humidity, and atmospheric ion concentration need to be measured together.

Applicable Standards
No specific national or international standard was provided in the supplied technical information. Applicable measurement and environmental monitoring standards should be selected according to the intended application and local regulatory requirements.

Comparison

Feature	IM800GL	Conventional Single-Range Ion Meter
Ion Concentration Range	Three automatic ranges up to 3,000,000 ions/cm³	Typically fixed or manually selected range
Range Switching	Automatic	Usually manual or limited
Resolution	10 ions/cm³	Depends on instrument
Air Collection	Precision air collector	Basic air inlet or collector
Dust Protection	Negative-pressure dust removal	May have limited dust protection
Contamination Warning	Automatic warning	Not always available
Electrostatic Shielding	Metal air collector	Depends on design
Temperature Measurement	Integrated	Usually requires separate sensor
Humidity Measurement	Integrated	Usually requires separate sensor
Long-Term Outdoor Operation	-20 to +60°C rated environment	Depends on model

The IM800GL is particularly suitable when a wide atmospheric ion concentration range, automatic range switching, contamination monitoring, and integrated environmental measurements are required.

FAQ
Q1: What does the IM800GL measure?
The system measures atmospheric ion concentration and can simultaneously measure ambient temperature and humidity.
Q2: What is the ion concentration range of the IM800GL?
It provides three automatically switched ranges: 0–30,000, 0–300,000, and 0–3,000,000 ions/cm³.
Q3: What is the resolution of the ion concentration measurement?
The ion concentration resolution is 10 ions/cm³.
Q4: Can the sampling interval be adjusted?
Yes. The standard sampling interval is 60 seconds per measurement, and the interval can be adjusted through software. Continuous measurement is also supported.
Q5: How does the system handle dust contamination?
The air collector uses an advanced negative-pressure dust removal structure to reduce the influence of contamination during long-term operation. The system also provides a contamination warning when accumulated dirt may affect measurement accuracy.
Q6: How does the IM800GL reduce static interference?
The metal air collector provides electrostatic shielding, helping reduce the adverse influence of static electricity on ion concentration measurements.
Q7: Can the IM800GL operate outdoors?
The rated operating temperature is -20 to +60°C. Its low power consumption and environmental protection features make it suitable for long-term monitoring applications.
Q8: Can the system use solar power?
Yes. In addition to AC 220 V power, the system can be connected to a solar battery system.
Q9: What is the power consumption of the IM800GL?
The average power consumption is less than 3 W, making it suitable for applications where low power consumption is important.
