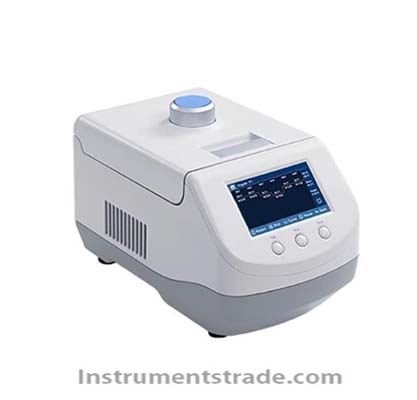

IB-20HL Thermal Cycling Heated Lid Dry Bath

Product ID：SYJRGZjshy022

Price: Please inquire PDF Format

Supply Ability:50SETS/MONTH

Port:SHENZHEN

Product Introduction
Other information

Model NumberIB-20HL

Brand NameHZAOSHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

IB-20HL Thermal Cycling Heated Lid Dry Bath

Product Introduction
The IB-20HL Thermal Cycling Heated Lid Dry Bath is a Peltier-based, microcomputer-controlled laboratory heating and cooling system designed to perform PCR reaction programs. Unlike conventional dry baths, the IB-20HL can execute programmable PCR thermal cycling directly on a metal block.
It features an interchangeable aluminum alloy module, automatic module recognition, and a continuously adjustable heated lid. The system accommodates 0.2 mL, 0.5 mL, 1.5 mL and 2.0 mL centrifuge tubes, helping reduce tube popping and sample evaporation during heating.
The IB-20HL is suitable for PCR, LAMP, NASBA, RPA, sample preservation and reactions, DNA amplification, pre-denaturation before electrophoresis, serum coagulation, and nucleic acid or protein denaturation.

Performance Features
• PCR thermal cycling function: The dry bath can directly run programmable PCR reaction protocols.
• Peltier-based temperature control: Semiconductor technology provides precise heating and cooling control.
• Interchangeable aluminum alloy modules: Modules can be replaced according to different tube and sample requirements.
• Automatic module recognition: The instrument automatically identifies the installed module.
• Continuously adjustable heated lid: Suitable for 0.2 mL, 0.5 mL, 1.5 mL and 2.0 mL centrifuge tubes, helping prevent tube popping and evaporation.
• Flexible heated-lid control: The heated lid can be independently switched on or off according to application requirements.
• Convenient module replacement: A dedicated lifting tool facilitates module replacement and cleaning.
• Programmable PCR software: Supports up to 9 programs, cyclic operation, and up to 99 cycles.
• Independent parameter setting: Module temperature, holding time and heated-lid temperature can be set and displayed independently.
• Future wireless capability: A reserved Wi-Fi function is provided for potential future APP software applications.

Working Principle
The IB-20HL uses Peltier semiconductor thermoelectric technology to provide both heating and cooling. The microcomputer control system regulates the module temperature according to the programmed temperature profile.
For PCR applications, users can set multiple temperature stages, holding times and cycle numbers. The system automatically executes the programmed thermal cycle, providing controlled denaturation, annealing and extension conditions.
The adjustable heated lid maintains contact with the upper part of the centrifuge tube during heating, helping reduce condensation and evaporation. The heated-lid function can also be switched off when it is not required.

Technical Parameters

Parameter	Specification
Model	IB-20HL
Temperature Control Range	-5°C to 105°C (ambient ≤20°C); 0°C to 105°C (ambient ≤25°C); 4°C to 105°C (ambient ≤30°C)
Heated Lid Temperature Range	Ambient +5°C to 110°C
Timer Range	0–99 h 59 min; 0–99 min 59 sec
Module Temperature Accuracy	±0.5°C
Heated Lid Temperature Accuracy	±1°C
Module Temperature Uniformity	±0.5°C
Display Resolution	0.1°C
Heating Rate	≥6°C/min (37°C–100°C)
Cooling Rate	≥6°C/min (100°C–37°C)
Compatible Tubes	0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL centrifuge tubes
PCR Programs	9 preset programs
Maximum PCR Cycles	99 cycles
Module	Interchangeable aluminum alloy module
Module Recognition	Automatic
Heated Lid	Continuously adjustable, switchable
Dimensions	313 × 168 × 196 mm
Net Weight	3.0 kg

Application Scenarios
The IB-20HL is suitable for a wide range of molecular biology and laboratory sample-processing applications:
• PCR and DNA amplification
• LAMP, NASBA and RPA
• PCR thermal cycling and sample reactions
• Sample preservation and incubation
• Pre-denaturation before DNA electrophoresis
• Serum coagulation
• Nucleic acid denaturation
• Protein denaturation
• General laboratory heating and cooling applications

IB-20HL vs. Conventional Dry Bath

Feature	IB-20HL Thermal Cycling Dry Bath	Conventional Dry Bath
Temperature Technology	Peltier semiconductor	Usually heating only
PCR Programs	Supported	Usually not supported
Heating & Cooling	Supported	Generally limited
Heated Lid	Continuously adjustable	Usually unavailable
PCR Cycling	Directly programmable	Requires external equipment
Interchangeable Module	Supported	Depends on model
Module Recognition	Automatic	Usually unavailable
Tube Compatibility	0.2/0.5/1.5/2.0 mL	Model dependent
Program Storage	9 programs	Usually limited
Maximum Cycles	99	Not applicable
Heated Lid Control	Independently switchable	Not applicable

FAQ
1. What is the IB-20HL Thermal Cycling Heated Lid Dry Bath?
It is a Peltier-based laboratory dry bath that combines precise temperature control with programmable PCR thermal cycling.
2. Can the IB-20HL run PCR programs?
Yes. One of its key functions is the ability to directly run programmed PCR reaction cycles on the metal bath module.
3. What tubes are compatible with the IB-20HL?
The adjustable heated lid is designed for 0.2 mL, 0.5 mL, 1.5 mL and 2.0 mL centrifuge tubes.
4. What is the temperature range of the IB-20HL?
The module temperature range depends on ambient temperature: -5°C to 105°C at ambient ≤20°C, 0°C to 105°C at ambient ≤25°C, and 4°C to 105°C at ambient ≤30°C.
5. Can the heated lid be turned off?
Yes. The heated lid can be independently switched on or off according to the application.
6. How many PCR programs can be stored?
The IB-20HL can preset up to 9 programs, with cyclic operation of up to 99 cycles.
7. What is the heating and cooling rate?
Both the heating rate from 37°C to 100°C and cooling rate from 100°C to 37°C are ≥6°C/min.
8. Can the aluminum alloy module be replaced?
Yes. The IB-20HL uses an interchangeable aluminum alloy module and provides automatic module recognition. A dedicated lifting tool facilitates module replacement and cleaning.
9. What applications is the IB-20HL suitable for?
It can be used for PCR, LAMP, NASBA, RPA, DNA amplification, sample preservation and reactions, electrophoresis pre-denaturation, serum coagulation, and nucleic acid or protein denaturation.
