i100-T Temperature Data Logger

Position: Home > > Measurement instrument > Temperature measuring instrument > Temperature recorder > i100-T Temperature Data Logger

i100-T Temperature Data Logger

Product ID：CLWDwdjl021

Price: Please inquire PDF Format

Supply Ability:50SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model Numberi100-T

Brand NameYHZHITUO

Payment TermsTT，PAYPAL，Alibaba.com Pay

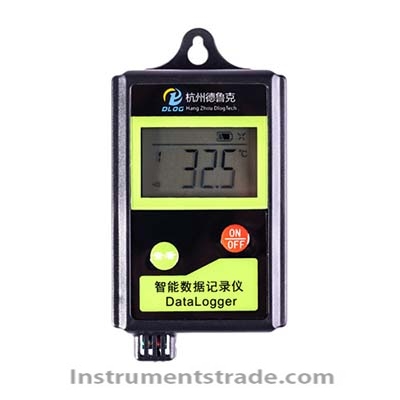

i100-T Temperature Data Logger

Product Introduction
The i100-T Temperature Data Logger is a compact and portable temperature recording device designed for convenient, reliable and long-term temperature monitoring.
Featuring a built-in temperature sensor, integrated USB communication cable and simple button operation, the i100-T allows users to collect, store, transfer and analyze temperature data efficiently. Its compact design and low power consumption make it suitable for both portable field measurement and long-term fixed-point monitoring.
The instrument is designed with convenient hanging hooks for easy installation during on-site verification. Its moisture-resistant structure and IP54 protection rating make it particularly suitable for applications such as cold storage, refrigerated vehicles and other demanding monitoring environments.
With a maximum storage capacity of up to 33,000 groups of data, adjustable recording intervals from 1 second to 24 hours, and professional computer software for data analysis and curve generation, the i100-T provides a practical solution for temperature monitoring, validation and data management.

Key Features
•   Compact and portable design
•   Simple button operation
•   Built-in hanging hooks for convenient on-site installation and validation
• Moisture-resistant design for cold storage and refrigerated transport applications
•   Built-in USB cable for convenient computer connection
•   USB data upload, processing and backup
•   Ventilation openings in the housing for reliable temperature measurement
•   Built-in temperature sensor
•   Supports viewing of date, time, maximum value and minimum value
•   Unlimited segmented recording through repeated power on/off operation
•   Low power consumption
•   Suitable for portable field data collection
•   Suitable for long-term fixed-point temperature monitoring
•   Built-in battery compartment for convenient battery replacement
•   Large-capacity data storage
•   Stored data is retained after power interruption
•   Adjustable start and stop modes through computer software
•   Supports statistical analysis, data display and data query
•   Automatically generates temperature trend curves
•   Supports data list viewing
•   Data can be exported to Excel or TXT files
•   Supports software-native data storage format
•   Suitable for data storage, processing and printing
•   Professional and user-friendly software interface
•   Software supports continuous upgrades

Flexible Start and Stop Modes
The i100-T temperature data logger provides multiple recording control modes through computer software.
Start Modes
•   Immediate start
•   Button start
•   Scheduled start
Stop Modes
•   Button stop
•   Scheduled stop
•   Stop when memory is full
•   Stop after a specified number of records
These flexible settings allow users to configure the i100-T according to different monitoring tasks and validation requirements.

Working Principle
The i100-T uses a built-in temperature sensor to continuously detect the temperature of the surrounding environment.
The collected temperature signal is processed by the internal electronic system and stored in the instrument memory according to the user-defined recording interval.
Users can connect the data logger to a computer through the integrated USB 2.0 communication interface. Professional software can then be used to download and process the recorded data.
The software supports:
•   Data display
•   Statistical analysis
•   Data query
•   Maximum and minimum value analysis
•   Temperature trend curve generation
•   Data list viewing
•   Data backup
•   Excel file export
•   TXT file export
•   Report and data printing
This provides a complete workflow from temperature acquisition to data analysis and long-term storage.

Technical Parameters

Parameter	Specification
Model	i100-T
Product Type	Temperature Data Logger
Temperature Sensor	Built-in
Recording Capacity	Up to 33,000 groups of records
Recording Interval	1 second to 24 hours, continuously adjustable
Communication Interface	USB
Communication Method	Integrated USB data cable, USB 2.0
Power Supply	Built-in high-energy battery
Battery Compartment	Yes, replaceable battery
Battery Life	More than 1 year
Protection Rating	IP54
Housing Material	Non-toxic ABS plastic
Housing Color	Black
Data Storage	Internal memory
Data Retention After Power Loss	Yes
Data Export	Excel / TXT / Software-native format
Data Analysis	Statistics, analysis, display and query
Display Functions	Date, time, maximum value and minimum value
Recording Method	Segmented recording supported
Start Modes	Immediate, button, scheduled
Stop Modes	Button, scheduled, memory full, record-count stop
Software	Professional data processing and analysis software
Software Upgrade	Continuous upgrade support
Main Applications	Cold storage, refrigerated transport, field monitoring and long-term temperature recording

Data Storage and Management
The i100-T temperature data logger provides large-capacity internal storage for long-term monitoring applications.
The instrument can store up to 33,000 groups of temperature records, allowing users to select appropriate recording intervals based on the monitoring period.
For example, users can select:
•   Short intervals for rapid temperature changes
•   Medium intervals for routine environmental monitoring
•   Long intervals for extended storage and transport monitoring
Stored data remains محفوظ in the internal memory and is not lost after power interruption.
After measurement, the integrated USB cable can be connected directly to a computer for data download and processing.

Professional Data Analysis Software
The i100-T is supplied with professional computer software designed for convenient temperature data management.
The software provides:
•   Statistical calculation
•   Data analysis
•   Temperature data display
•   Historical data query
•   Temperature curve generation
•   Data list viewing
•   Maximum and minimum value analysis
•   Excel export
•   TXT export
•   Software-format data storage
•   Data backup
•   Data printing
The graphical curve display provides a clear and intuitive view of temperature changes over time, helping users quickly identify temperature fluctuations and monitoring trends.

Application Scenarios
The i100-T Temperature Data Logger is suitable for:
•   Cold storage temperature monitoring
•   Refrigerated vehicle validation
•   Cold chain transportation
•   Food storage monitoring
•   Pharmaceutical storage
•   Warehouse environmental monitoring
•   Laboratory temperature recording
•   Field environmental data collection
•   Agricultural storage monitoring
•   Equipment temperature monitoring
•   Long-term environmental monitoring
•   On-site temperature validation
•   Temperature verification and testing

i100-T vs Conventional Temperature Recorder

Feature	i100-T Temperature Data Logger	Conventional Temperature Recorder
Portability	Compact and easy to carry	Often larger
Sensor	Built-in temperature sensor	May require external sensor
Data Capacity	Up to 33,000 records	Usually lower or application-dependent
Recording Interval	1 second to 24 hours	Often less flexible
USB Communication	Integrated USB cable	May require separate cable
Data Export	Excel and TXT supported	May require manual processing
Data Analysis	Software-based statistics and curves	Often limited
Maximum/Minimum Display	Supported	Depends on model
Start Modes	Immediate, button, scheduled	Usually fewer options
Stop Modes	Multiple configurable modes	Usually limited
Battery Replacement	Convenient battery compartment	Depends on design
Power Consumption	Low	Application-dependent
Environmental Protection	IP54	Often lower
Cold Storage Applications	Highly suitable	Depends on protection design

Why Choose i100-T?
The i100-T Temperature Data Logger combines portability, long-term recording, large-capacity data storage and convenient USB communication in a compact design.
Its moisture-resistant structure and IP54 protection rating make it suitable for cold storage and refrigerated transport applications, while the built-in hanging hooks simplify on-site installation and validation.
With adjustable recording intervals, flexible start and stop modes, data retention after power interruption and professional analysis software, the i100-T provides an efficient and practical solution for temperature monitoring and data management.

FAQ
1. What is the i100-T Temperature Data Logger used for?
It is used for continuous temperature monitoring, recording and data analysis in applications such as cold storage, refrigerated transportation, laboratories and field environments.
2. How many records can the i100-T store?
The i100-T can store up to 33,000 groups of data records.
3. What is the adjustable recording interval?
The recording interval can be continuously adjusted from 1 second to 24 hours.
4. Does the i100-T have a built-in temperature sensor?
Yes. The temperature sensor is built into the instrument.
5. How is data transferred to a computer?
The device uses an integrated USB data cable and supports USB 2.0 communication.
6. Can the recorded data be exported?
Yes. Data can be exported to Excel and TXT files or stored in the software's native format.
7. Is the device suitable for cold storage applications?
Yes. The moisture-resistant design and IP54 protection rating make it suitable for cold storage and refrigerated transport monitoring applications.
8. What happens to the data after power interruption?
Previously stored data in the instrument memory is retained and will not be lost after power interruption.
9. Can the recording start and stop automatically?
Yes. The software supports immediate, button and scheduled start modes, as well as button stop, scheduled stop, memory-full stop and record-count stop modes.
10. How long is the battery life?
Under appropriate operating conditions, the battery life can exceed one year. The instrument also includes a convenient battery compartment for battery replacement.
